Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Drain the engine oil.
  3. Remove the engine mount strut bracket. Refer to Engine Mount Strut Bracket Replacement .
  4. Remove the lower AC compressor bolt.
  5. Loosen the upper AC compressor bolts.
  6. Remove the oil pan bolts.
    Fig 1: Oil Pan Bolt Removal Sequence
    G01776723Courtesy of GENERAL MOTORS CORP.
  7. Remove the oil pan

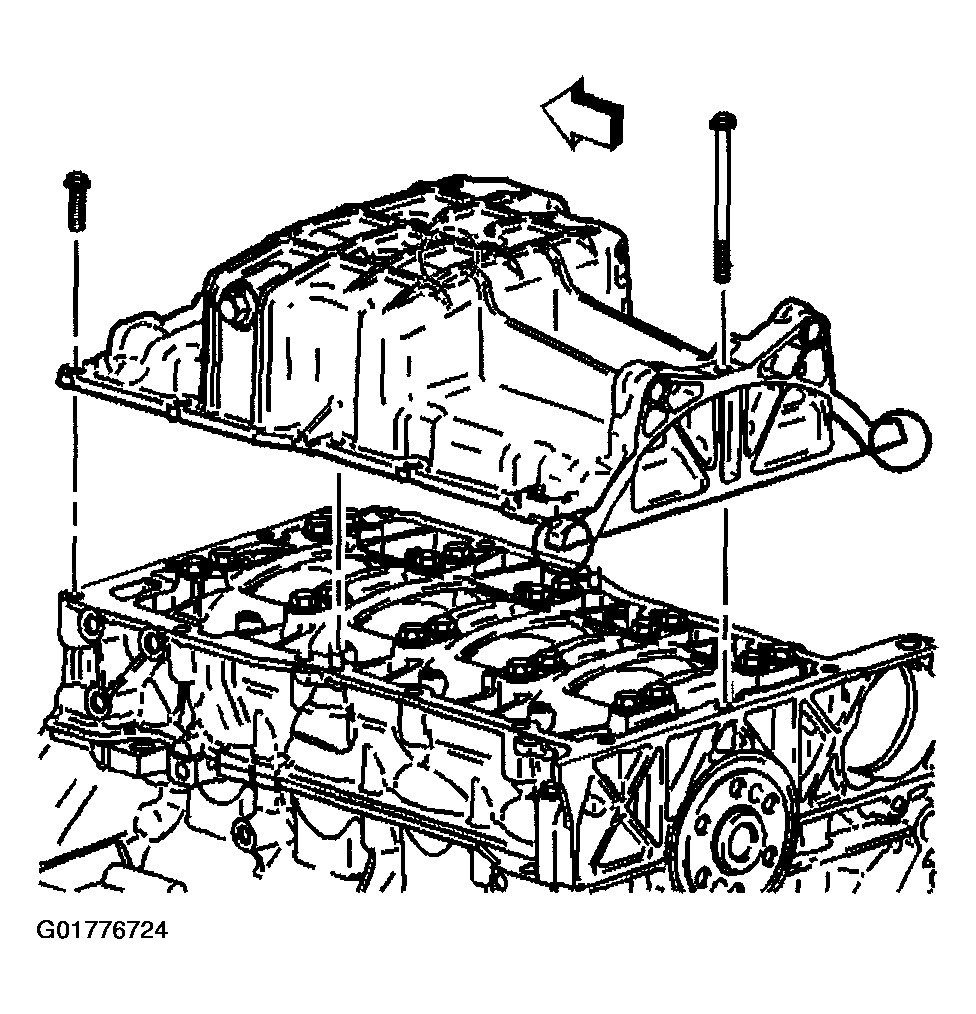

    Fig 2: Oil Pan
    G01776724Courtesy of GENERAL MOTORS CORP.
