Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner outlet resonator.
  2. Unclip the electrical wiring harness from the oil level indicator tube.
  3. Remove the oil level indicator tube bolt (1).
  4. Remove the oil level indicator tube (3).
  5. Remove the oil level indicator tube seal (2).

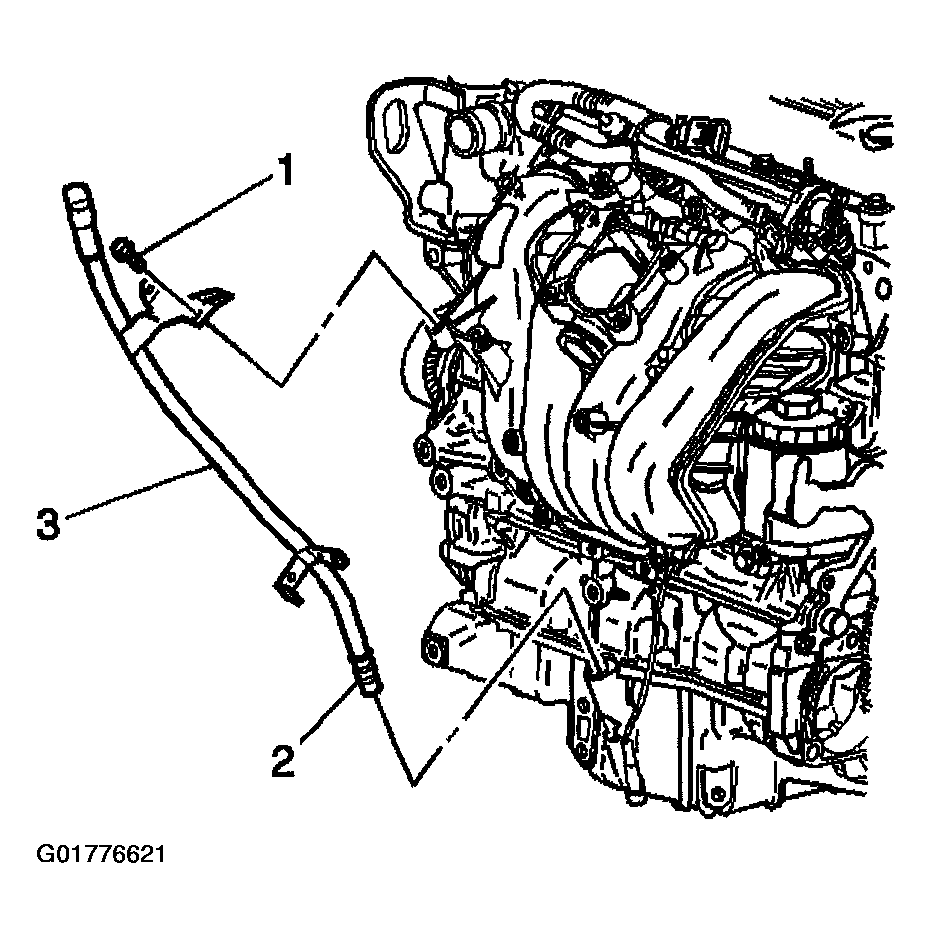

    Fig 1: Oil Level Indicator Tube
    G01776621Courtesy of GENERAL MOTORS CORP.
