Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the camshaft cover. Refer to Camshaft Cover Replacement .
  2. Remove the upper timing chain guide.

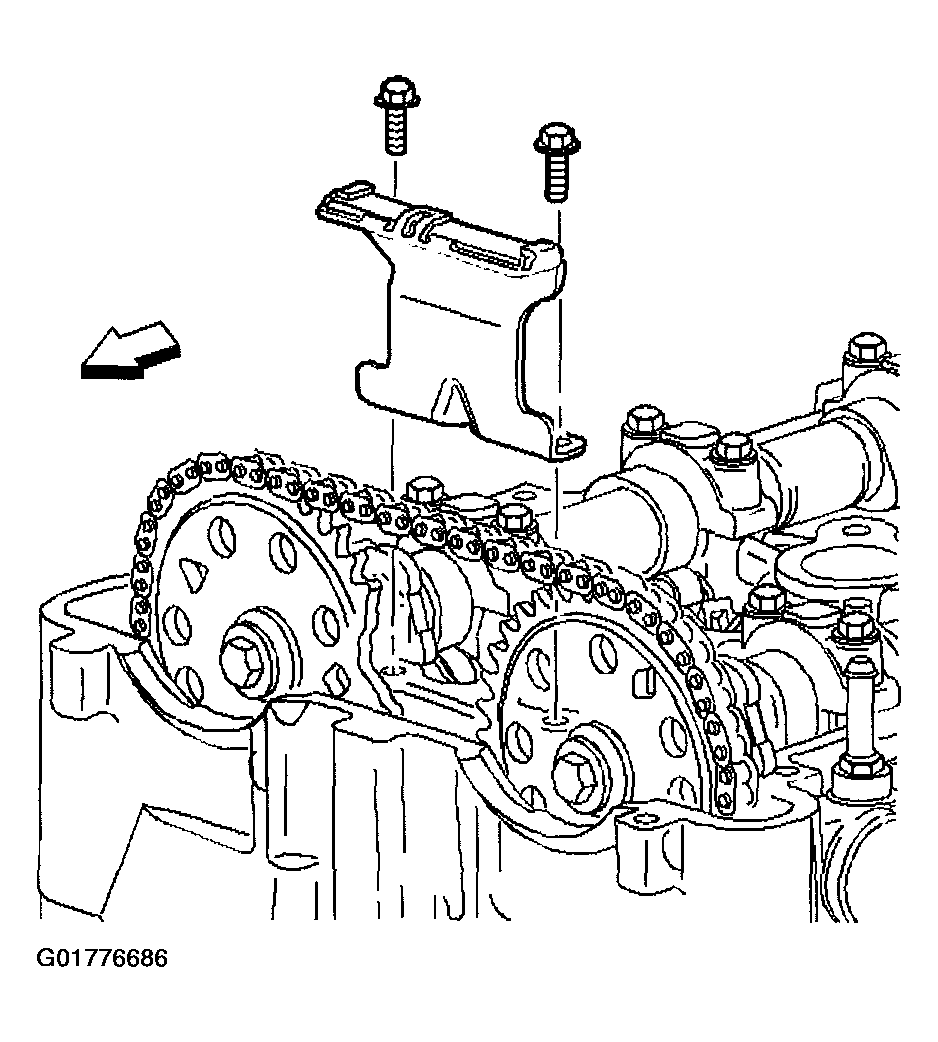

    Fig 1: Upper Timing Chain Guide
    G01776686Courtesy of GENERAL MOTORS CORP.
  3. Install the J 43655  .

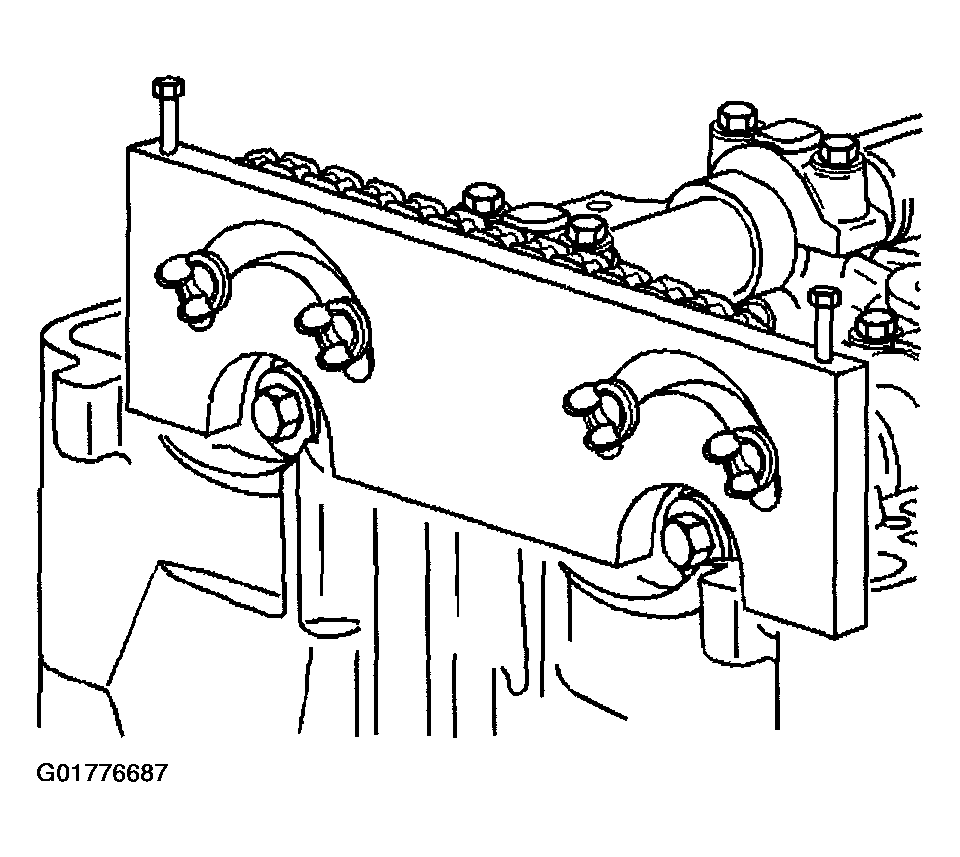

    Fig 2: Camshaft Sprocket Holding Tool
    G01776687Courtesy of GENERAL MOTORS CORP.
  4. Remove both the intake and exhaust camshaft sprocket bolts and discard.

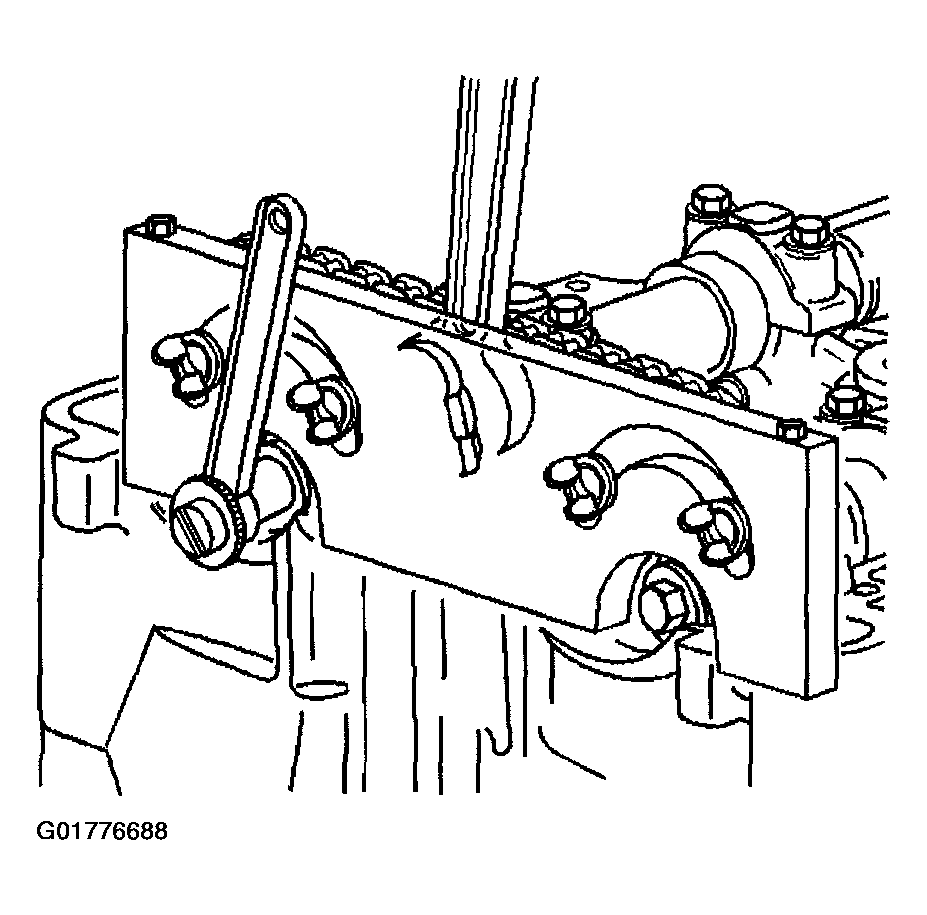

    5. Fig 3: Removing Intake And Exhaust Camshaft Sprocket Bolts
    G01776688Courtesy of GENERAL MOTORS CORP.
  5. Slide the camshaft sprockets forward.
  6. Remove the power steering pump bolts and set pump aside.

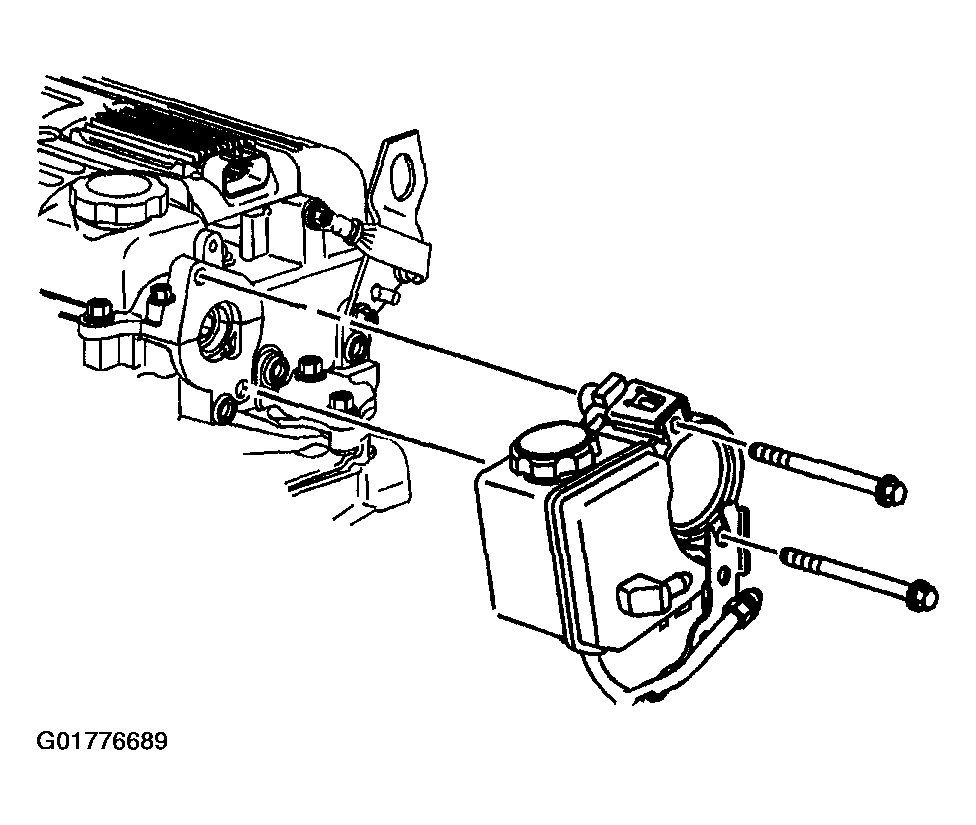

    Fig 4: Power Steering Pump
    G01776689Courtesy of GENERAL MOTORS CORP.
  7. Mark bearing caps to ensure they are installed in the original position.

    Important:  Remove each bolt on each cap one turn at a time until there is no spring tension on the camshaft.

  8. Remove the bearing caps.
  9. Remove the intake camshaft.

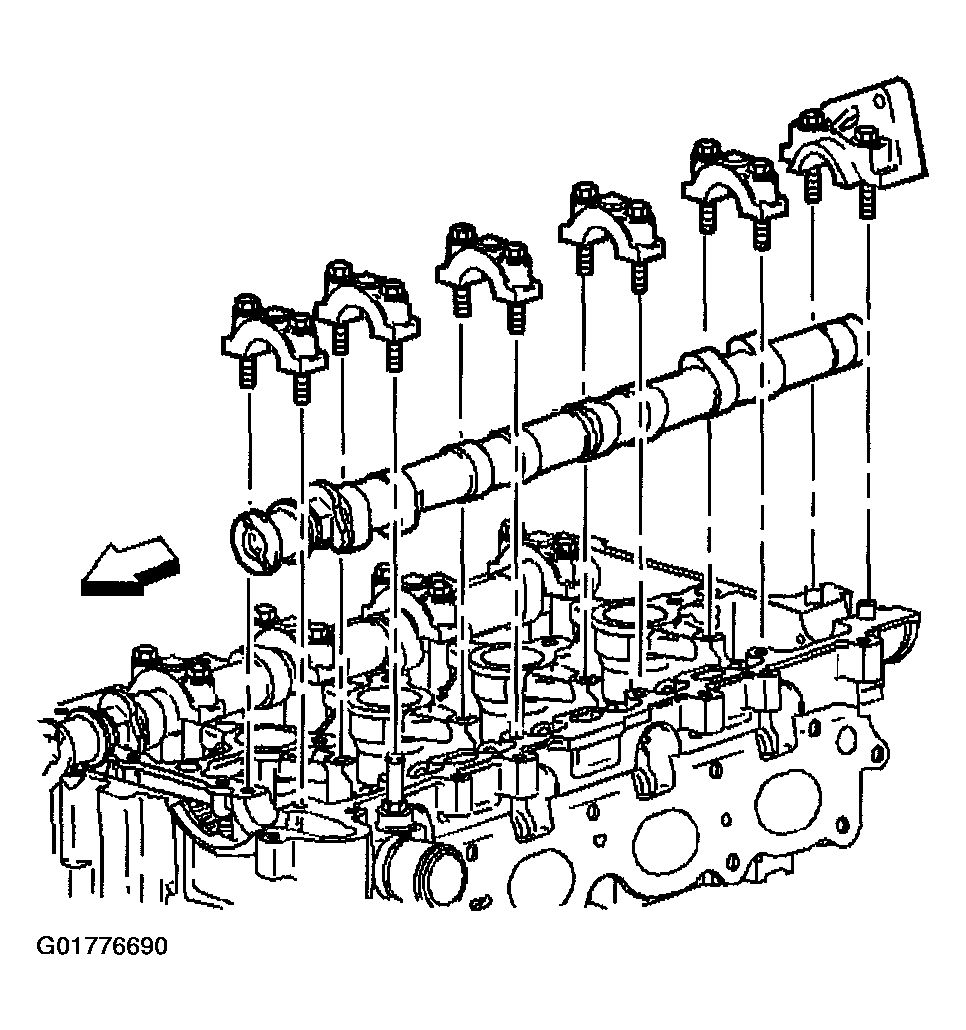

    Fig 5: Intake Camshaft
    G01776690Courtesy of GENERAL MOTORS CORP.
  10. Remove the camshaft roller followers.

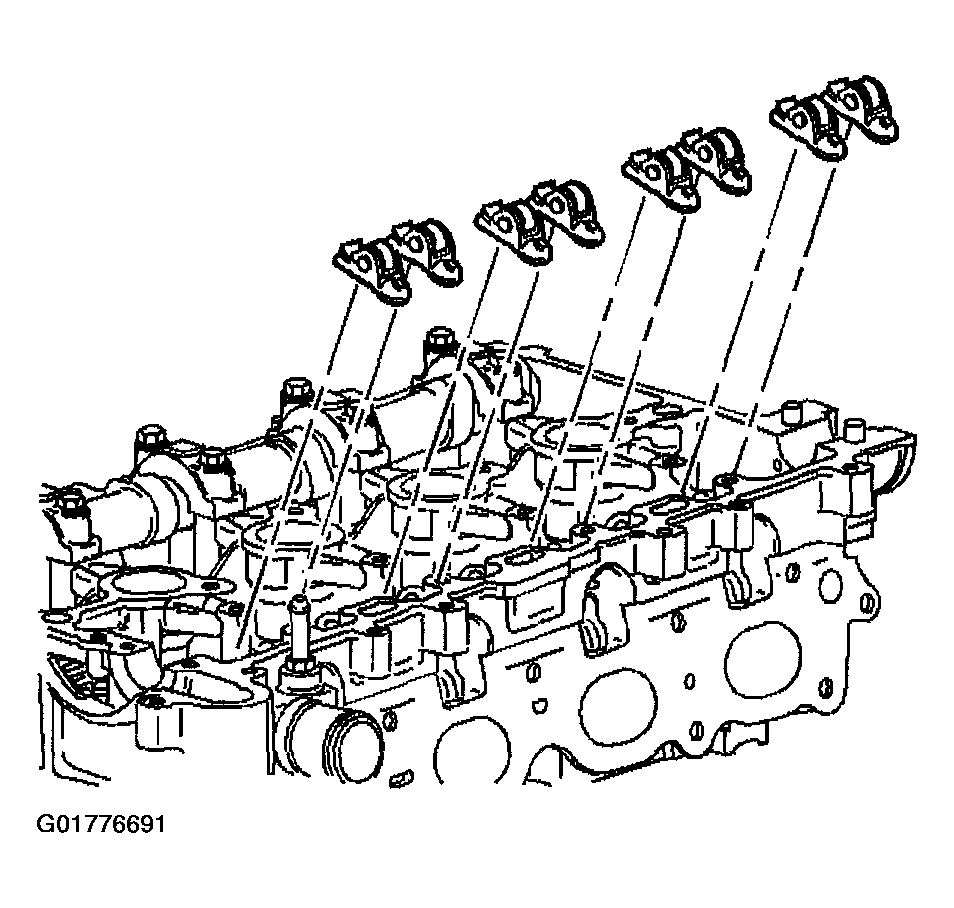

    Fig 6: Camshaft Roller Followers
    G01776691Courtesy of GENERAL MOTORS CORP.
  11. Remove the hydraulic element lash adjusters.

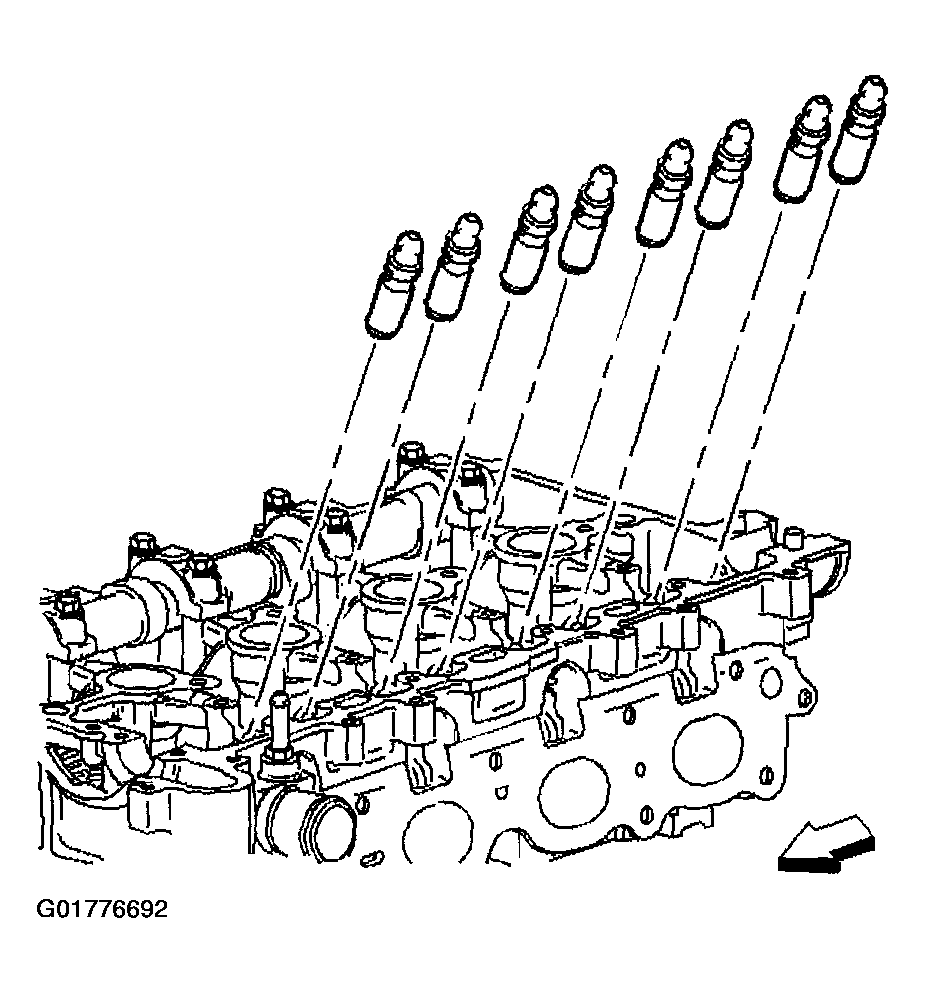

    Fig 7: Hydraulic Element Lash Adjusters
    G01776692Courtesy of GENERAL MOTORS CORP.
