Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the camshaft cover. Refer to Camshaft Cover Replacement .
  2. Remove the upper timing chain guide.

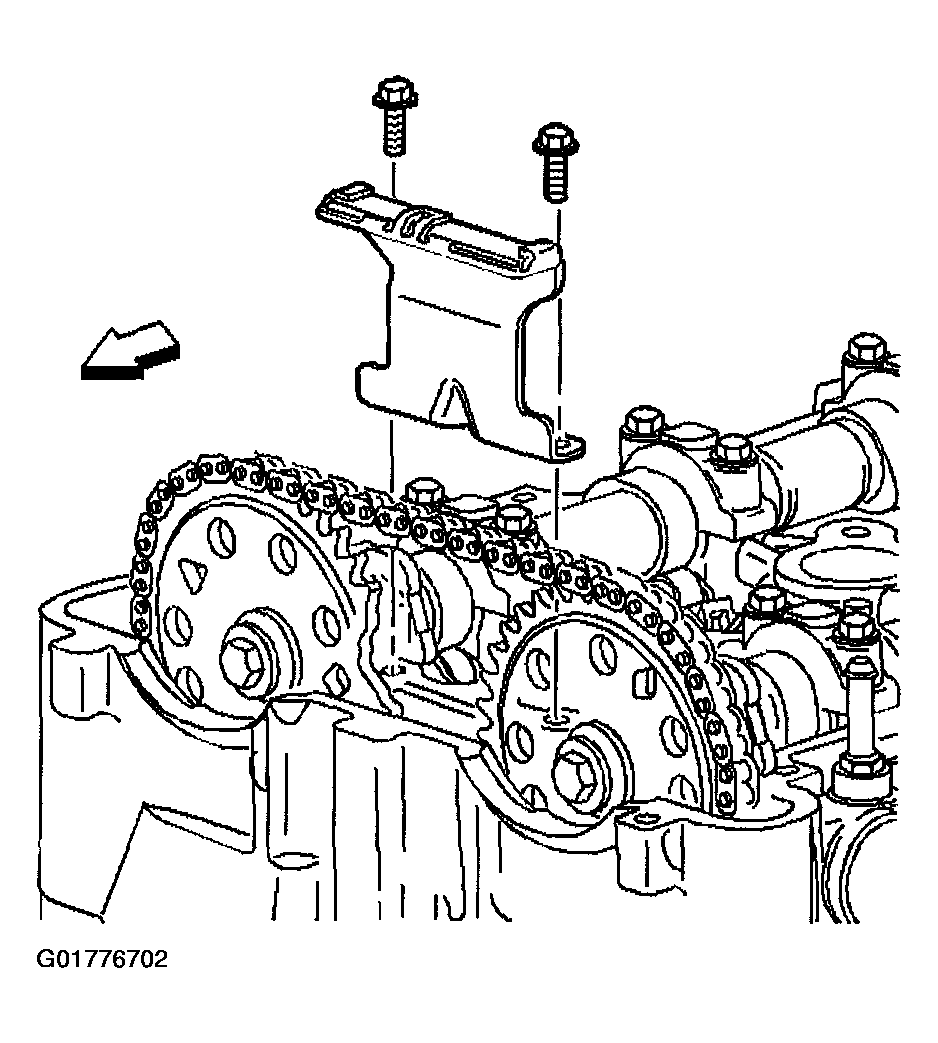

    Fig 1: Upper Timing Chain Guide
    G01776702Courtesy of GENERAL MOTORS CORP.
  3. Install the J 43655  .

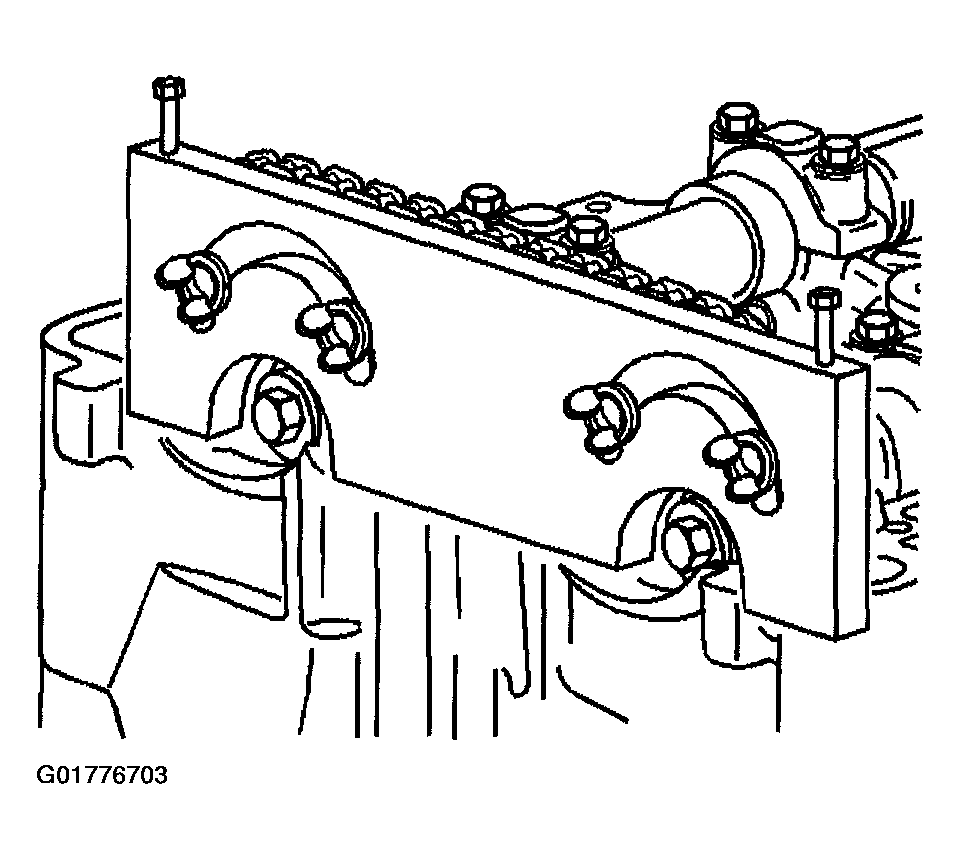

    Fig 2: Camshaft Sprocket Holding Tool
    G01776703Courtesy of GENERAL MOTORS CORP.
  4. Remove both the intake and the exhaust camshaft sprocket bolts and discard.

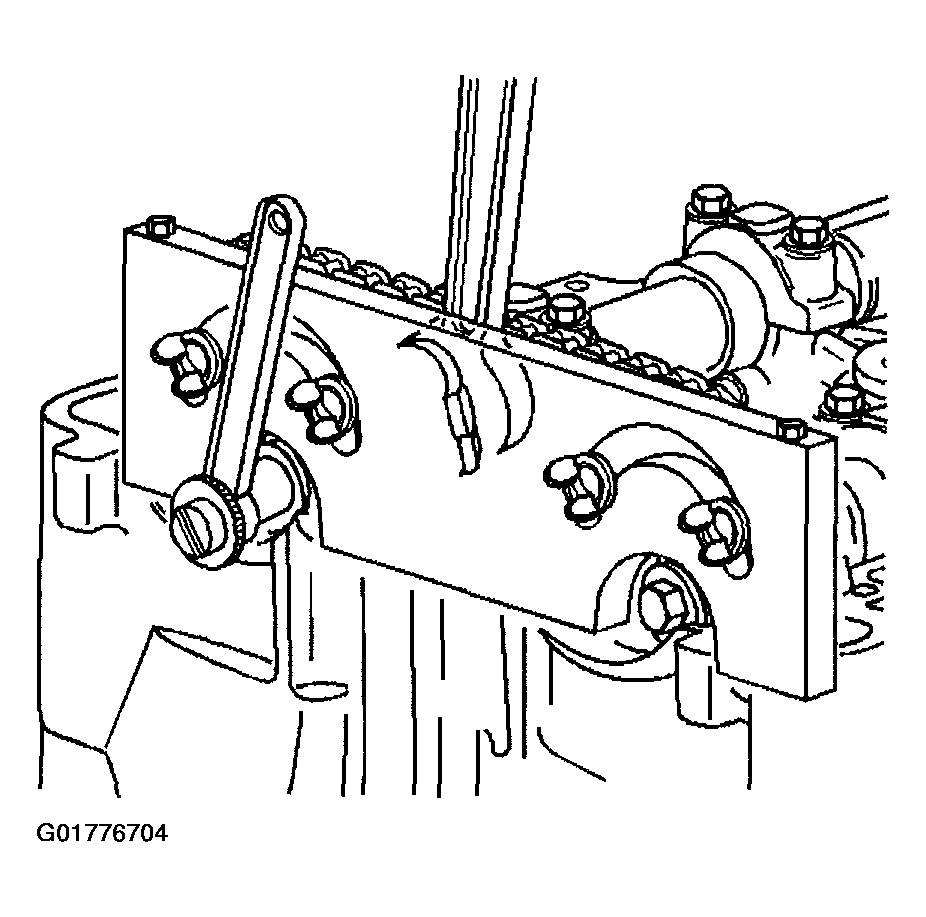

    5. Fig 3: Removing Intake And Exhaust Camshaft Sprocket Bolts
    G01776704Courtesy of GENERAL MOTORS CORP.
  5. Slide the camshaft sprockets forward.
  6. Mark the bearing caps to ensure that the bearing caps are installed in the original position.

    Important:  Remove each bolt on each cap one turn at a time until there is no spring tension on the camshaft.

  7. Remove the bearing caps.

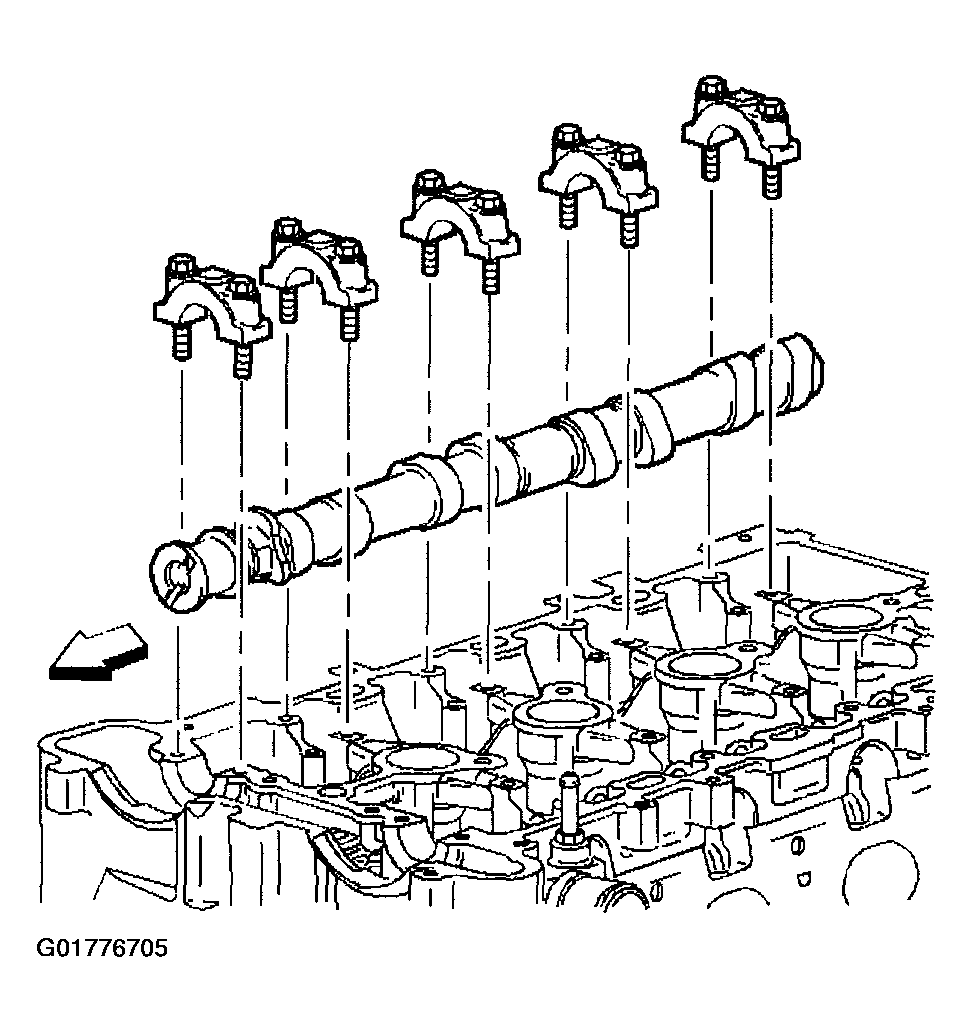

    8. Fig 4: Bearing caps
    G01776705Courtesy of GENERAL MOTORS CORP.
  8. Remove the exhaust camshaft.
  9. Remove the camshaft roller followers.

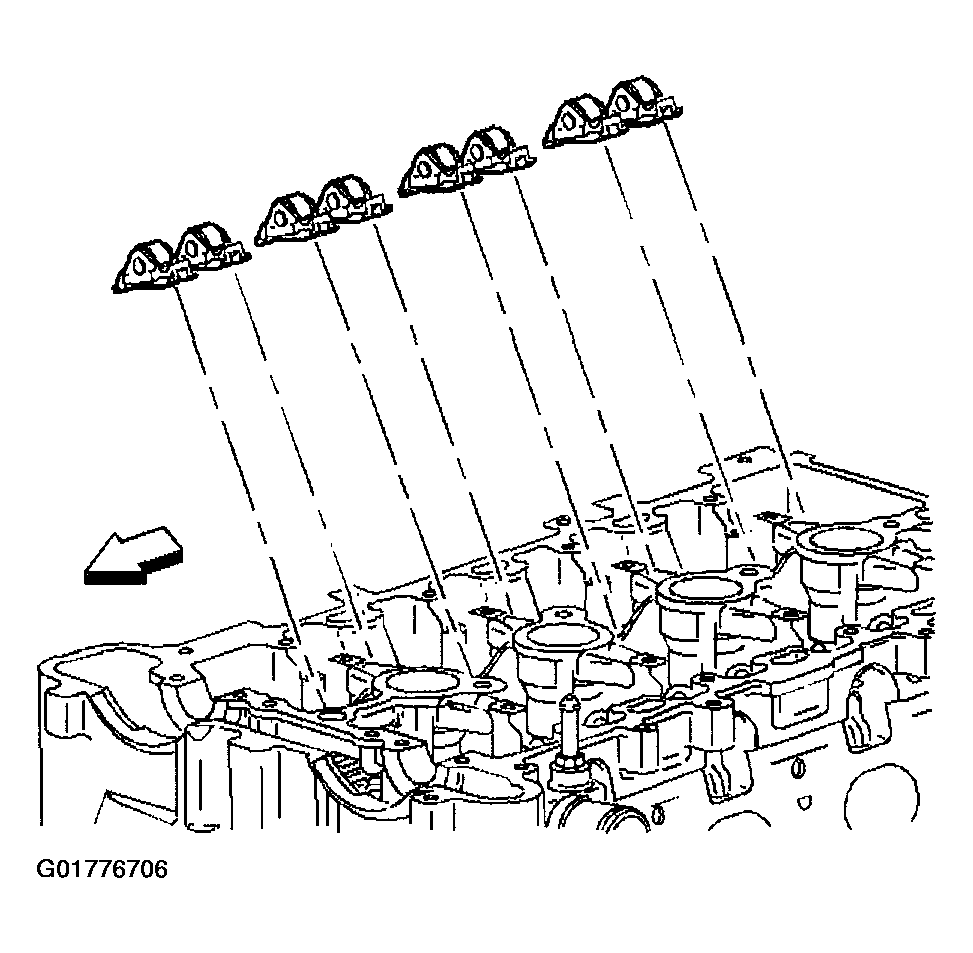

    Fig 5: Camshaft Roller Followers
    G01776706Courtesy of GENERAL MOTORS CORP.
  10. Remove the hydraulic element lash adjusters.

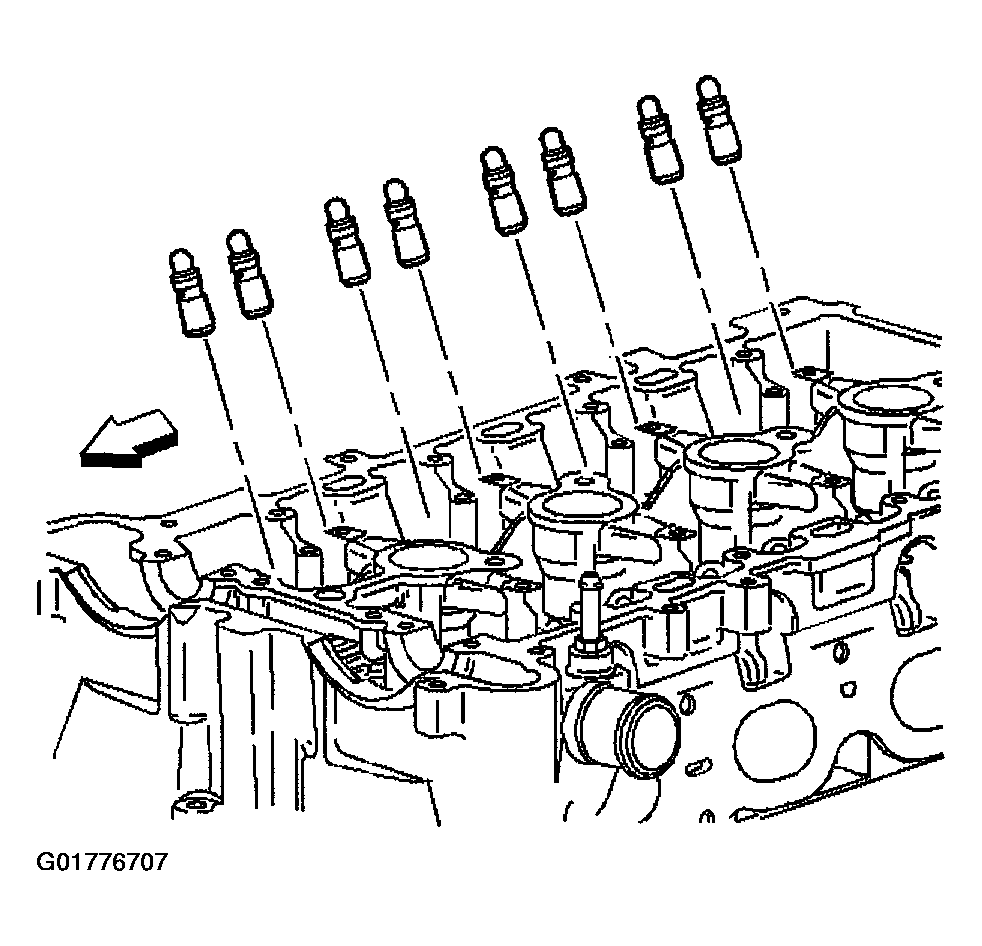

    Fig 6: Hydraulic Element Lash Adjusters
    G01776707Courtesy of GENERAL MOTORS CORP.
