Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the J 42451  to the right rear of the cylinder head.
  2. Install the J 28467-B  and J-28467-501  to the vehicle.

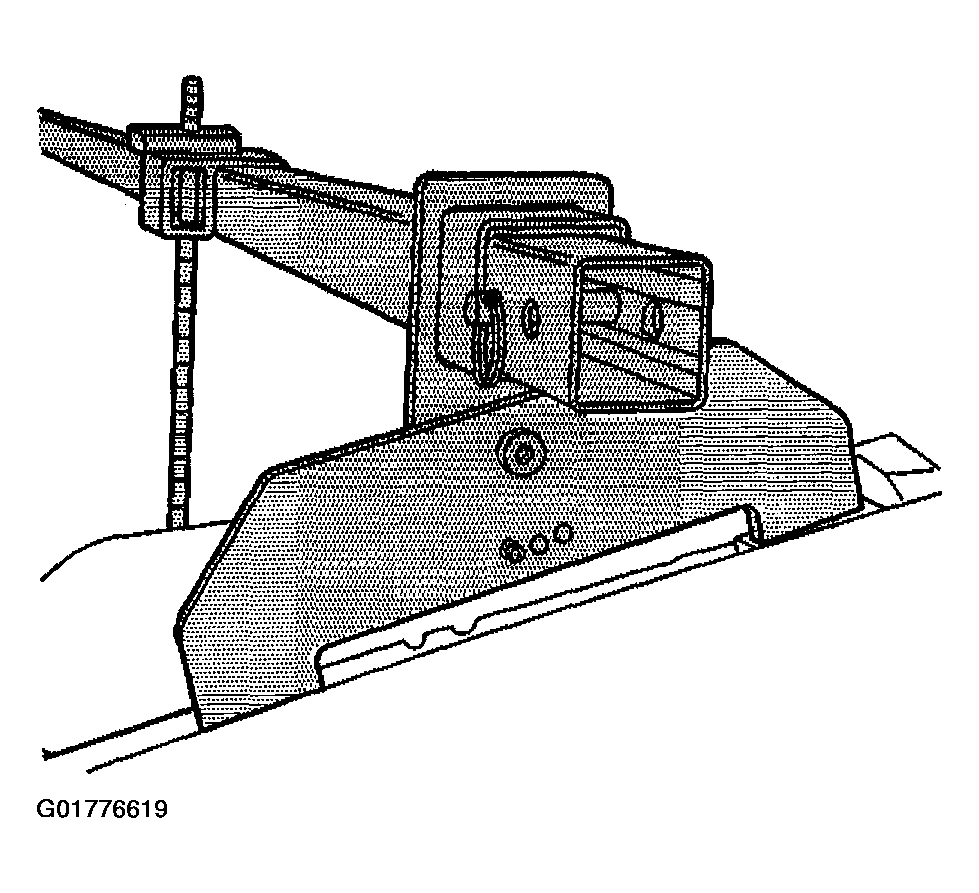

    Fig 1: Universal Engine Support Lift Bracket
    G01776619Courtesy of GENERAL MOTORS CORP.
  3. Install the J 28467-7 (2) to the engine front lift bracket.
  4. Install the J 28467-8 (5) to the engine front lift bracket.

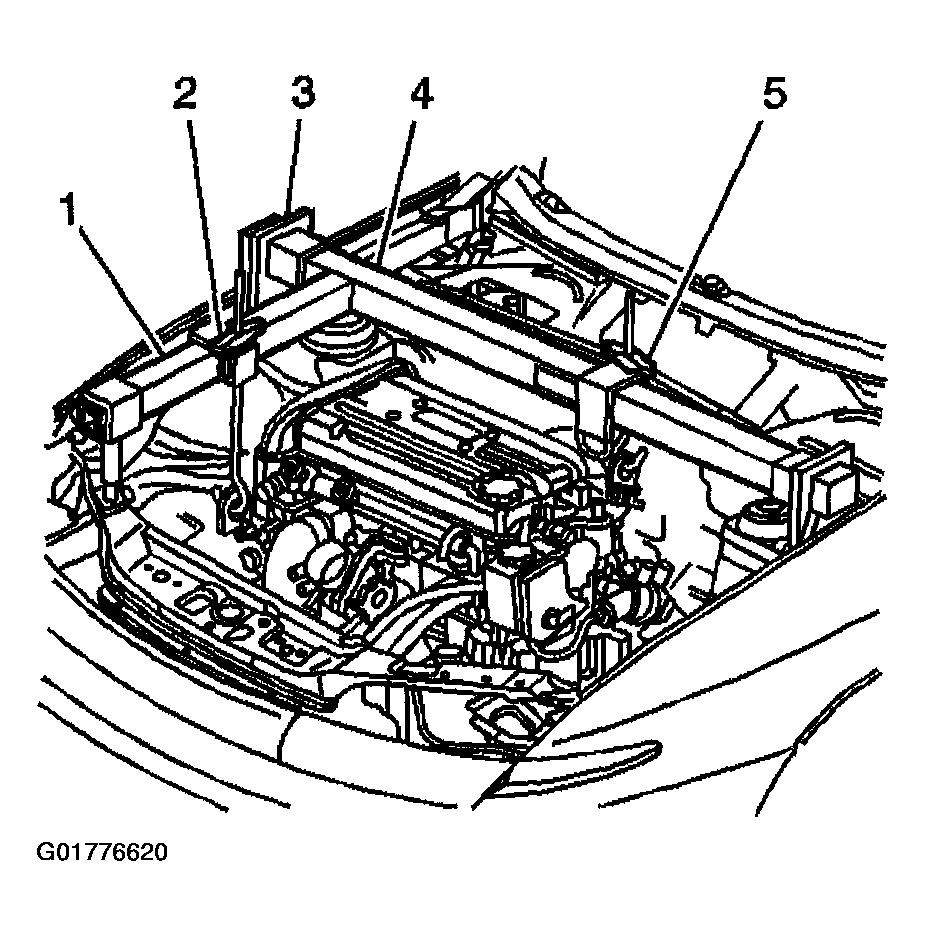

    Fig 2: Universal Engine Support Fixture Assembly
    G01776620Courtesy of GENERAL MOTORS CORP.
