Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Raise and support the vehicle.
  3. Disconnect the engine oil pressure sensor electrical connector.
  4. Remove the engine oil pressure sensor.

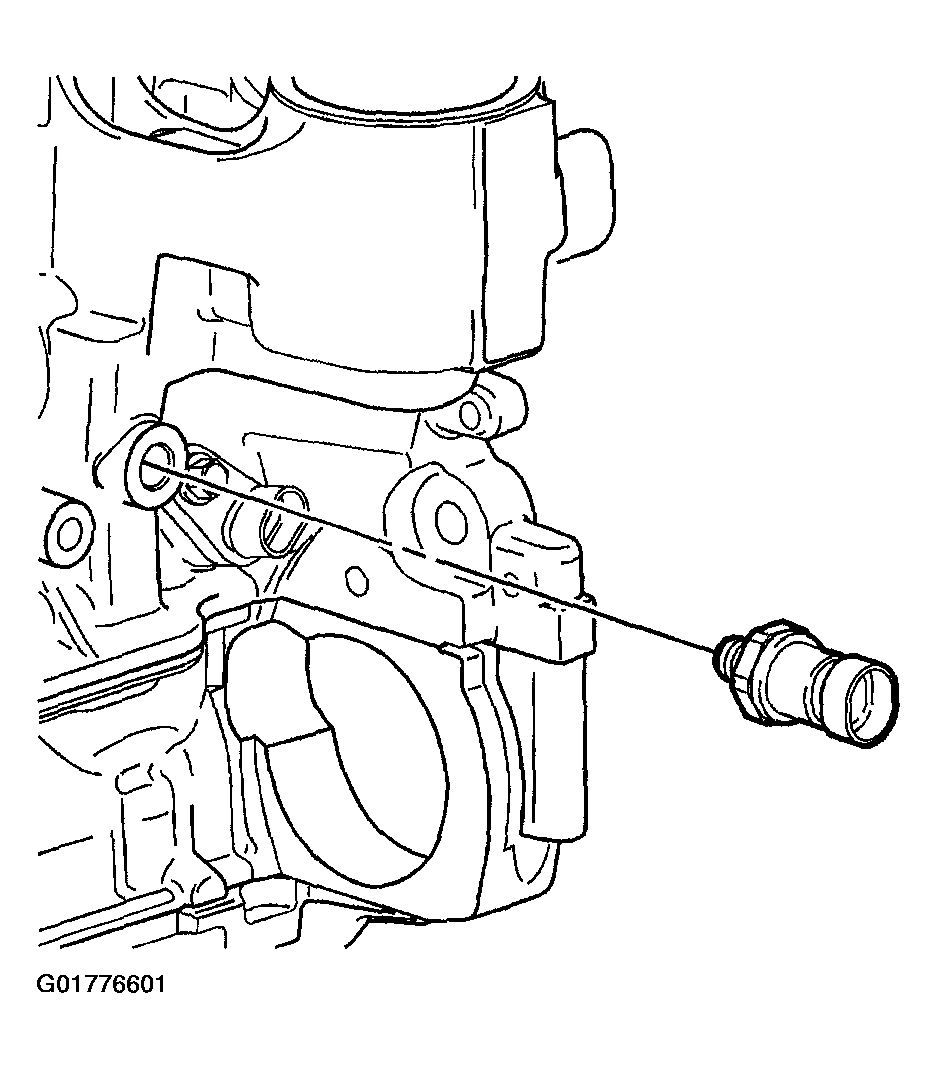

    Fig 1: Engine Oil Pressure Sensor
    G01776601Courtesy of GENERAL MOTORS CORP.
