Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the right engine splash shield.
  3. Remove the engine mount strut. Refer to Engine Mount Replacement .
  4. Remove the engine mount strut bracket bolts.
  5. Remove the engine mount strut bracket.

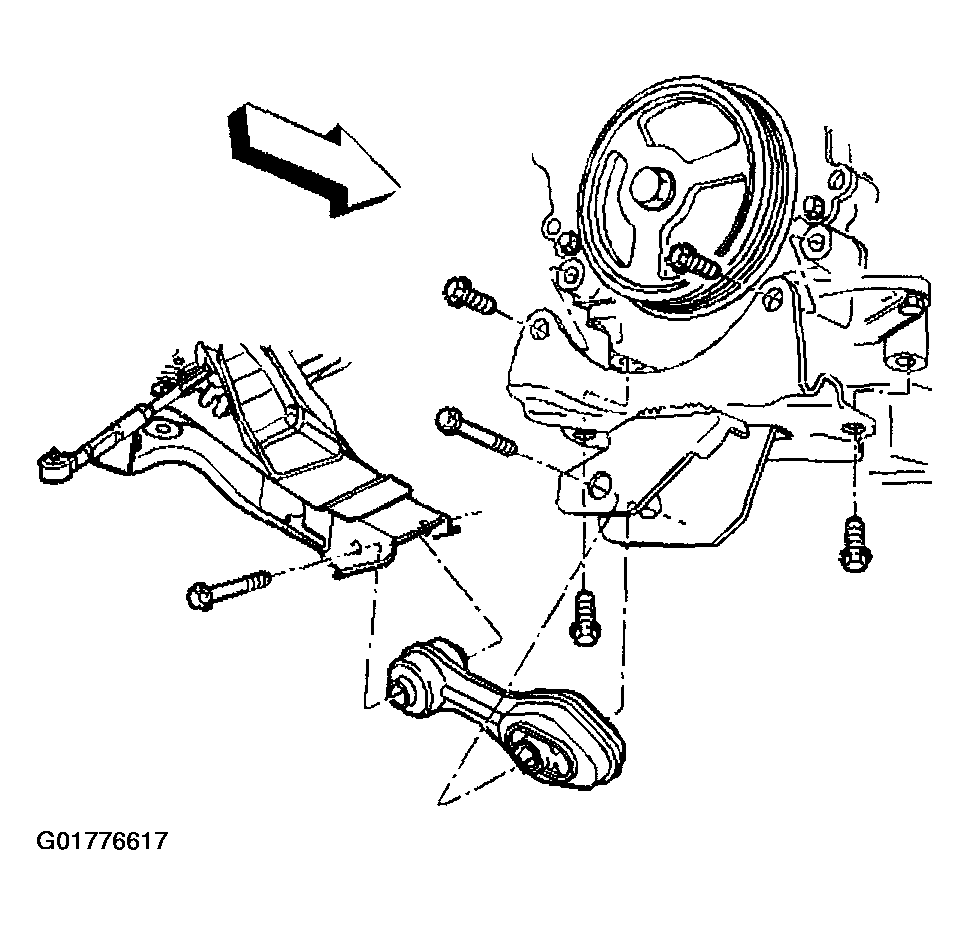

    Fig 1: Engine Mount Strut Bracket
    G01776617Courtesy of GENERAL MOTORS CORP.
