Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cruise control module mounting nuts.
  2. Remove the A/C low pressure line retaining bracket (1) nut.

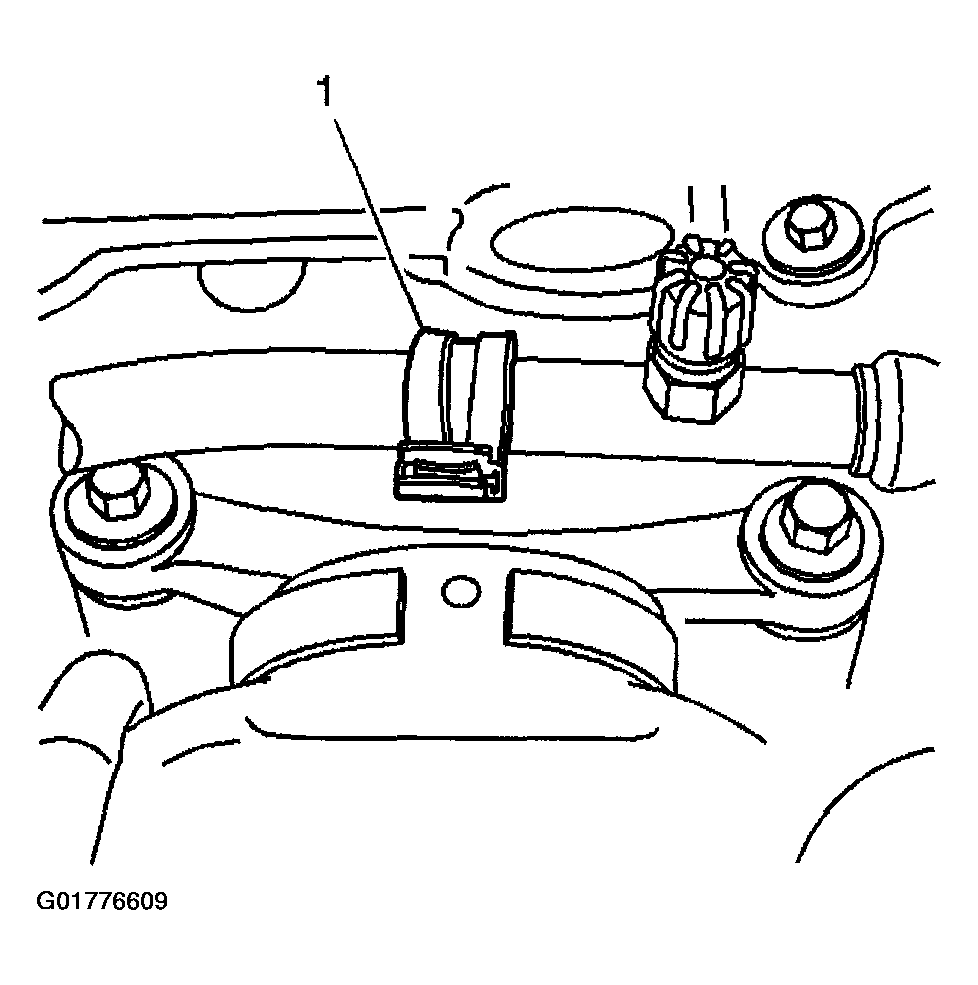

    Fig 1: A/C Low Pressure Line Retaining Bracket
    G01776609Courtesy of GENERAL MOTORS CORP.
  3. Using a block of wood between the floor jack and the oil pan, support the engine.
    Fig 2: Supporting Engine With Floor Jack
    G01776610Courtesy of GENERAL MOTORS CORP.
  4. Remove the engine mount (2) to bracket bolts (1).
    Fig 3: Engine Mount-To-Bracket Bolt
    G01776611Courtesy of GENERAL MOTORS CORP.
  5. Remove the engine mount to body nuts (1).

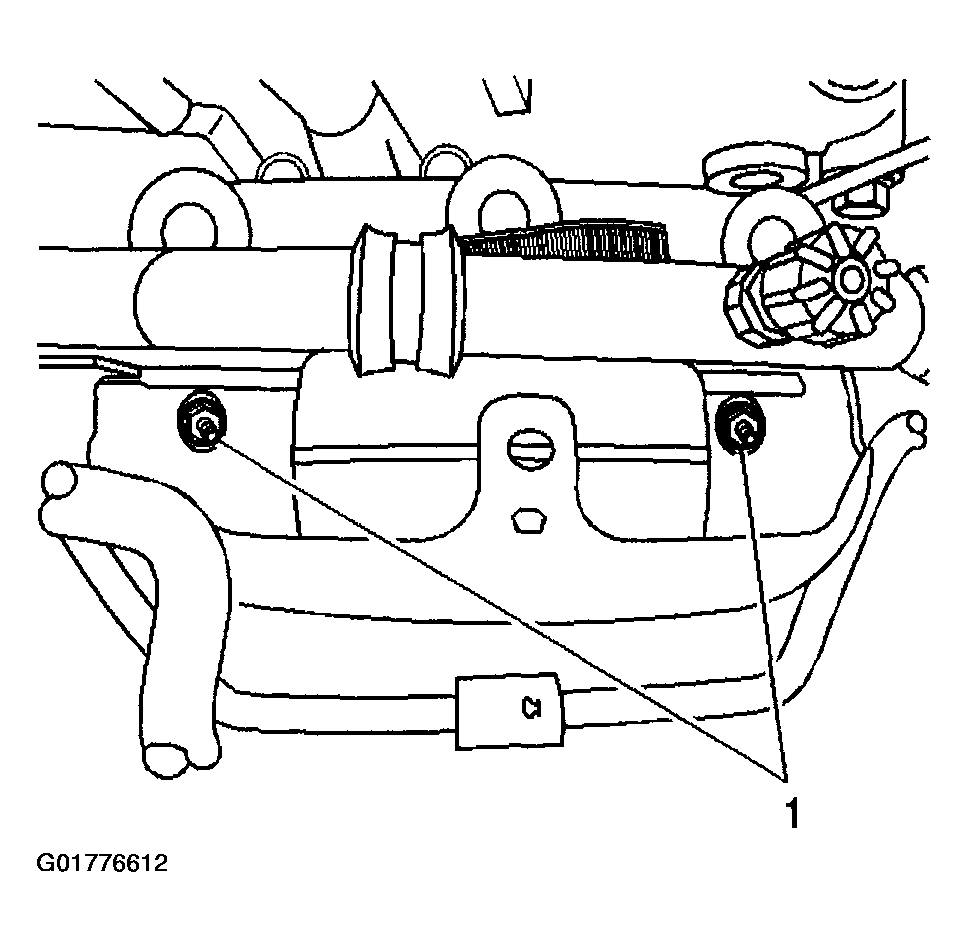

    6. Fig 4: Engine Mount-To-Body Nuts
    G01776612Courtesy of GENERAL MOTORS CORP.
  6. Remove the engine mount.
