Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine mount. Refer to Engine Mount Replacement .
  2. Raise the engine enough to gain clearance in order to remove the upper bracket bolts (1).

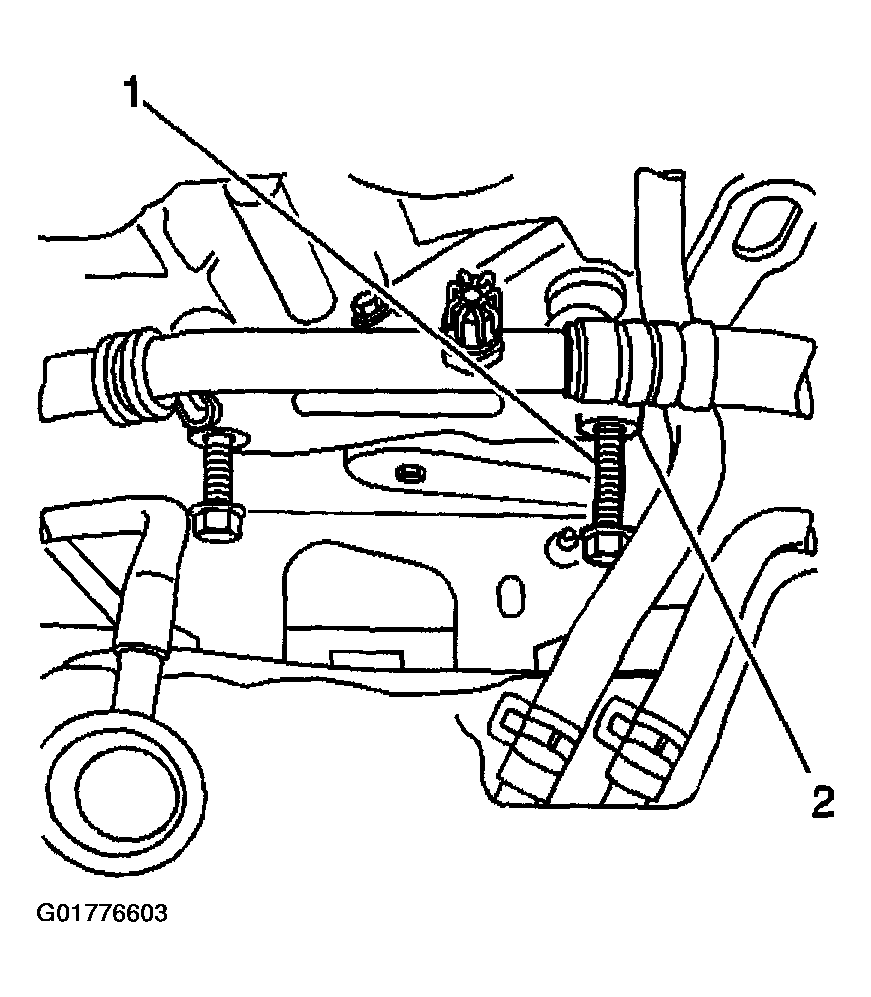

    Fig 1: Engine Mount Bracket
    G01776603Courtesy of GENERAL MOTORS CORP.
  3. Loosen the lower bracket bolt and remove the bracket (2) and the bolt together.

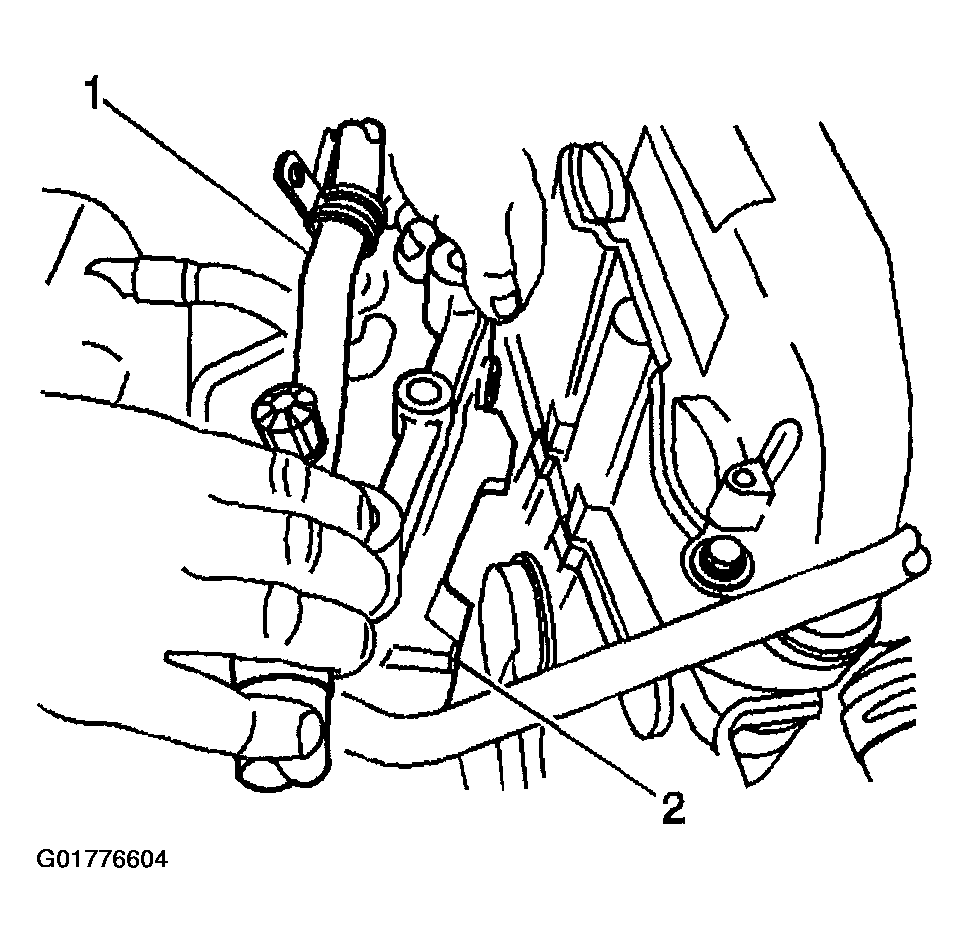

    Fig 2: Engine Mount Bracket
    G01776604Courtesy of GENERAL MOTORS CORP.
