Engine Front Cover Replacement: Notes

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankcase balancer. Refer to Crankshaft Balancer Replacement .
  2. Remove the drive belt tensioner.

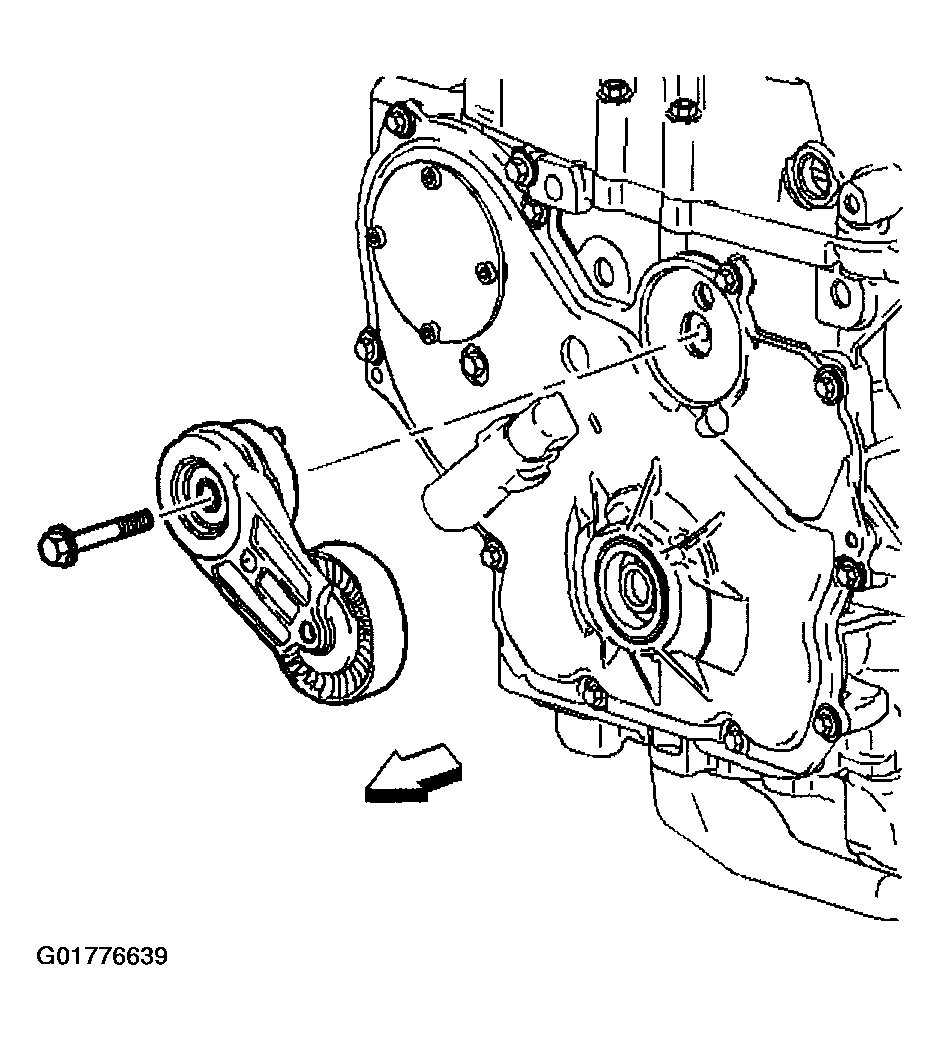

    Fig 1: Drive Belt Tensioner
    G01776639Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine front cover to water pump bolt.

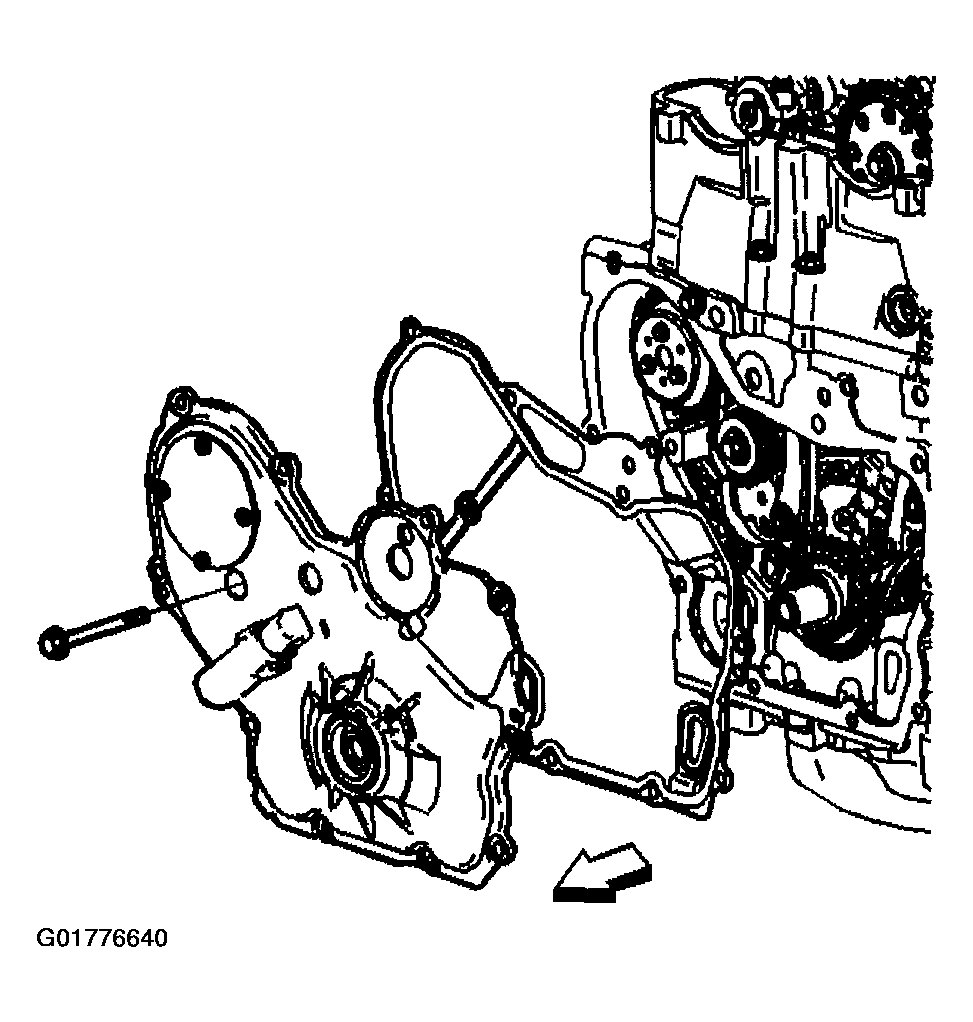

    Fig 2: Engine Front Cover
    G01776640Courtesy of GENERAL MOTORS CORP.
  4. Remove the remaining engine front cover bolts.

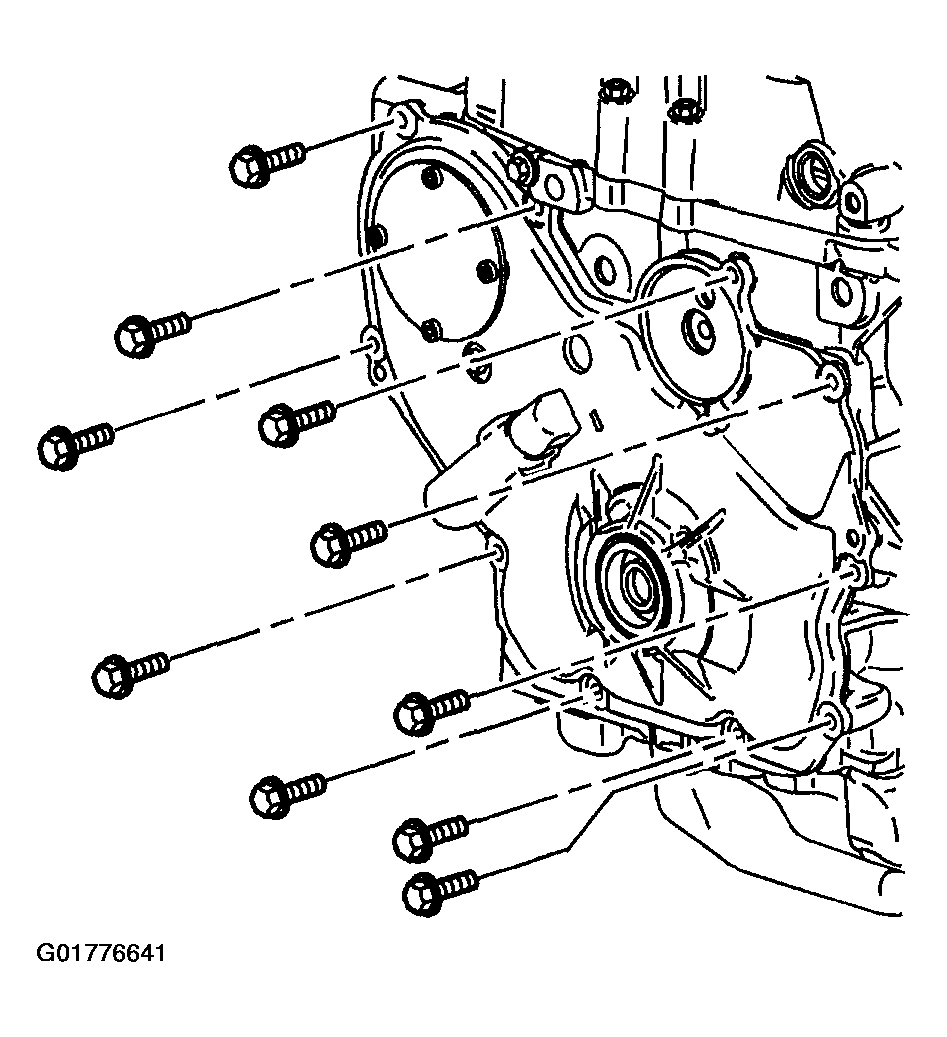

    5. Fig 3: Engine Front Cover Bolts
    G01776641Courtesy of GENERAL MOTORS CORP.
  5. Remove the engine front cover gasket if it is damaged.
