Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt. Refer to Drive Belt Replacement .
  2. Remove the drive belt tensioner bolt.
  3. Remove the drive belt tensioner.

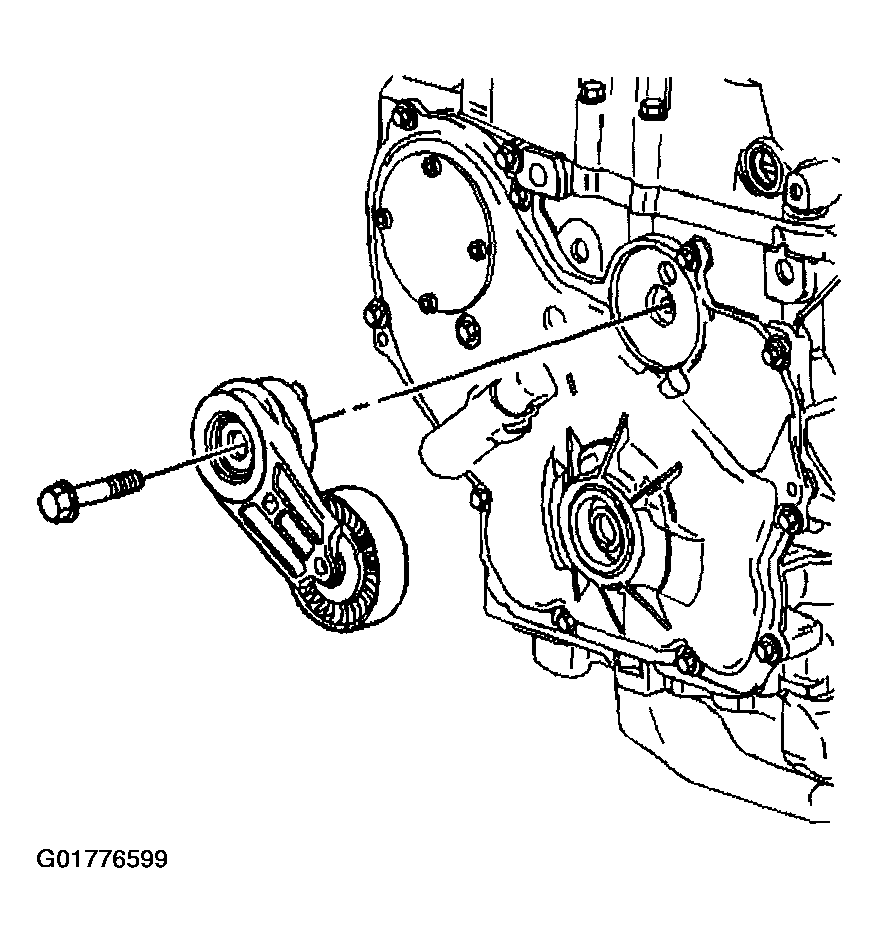

    Fig 1: Drive Belt Tensioner
    G01776599Courtesy of GENERAL MOTORS CORP.
