Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the front fender liner.
  3. Rotate the drive belt tensioner counter-clockwise to release the spring tension.
  4. Remove the drive belt.

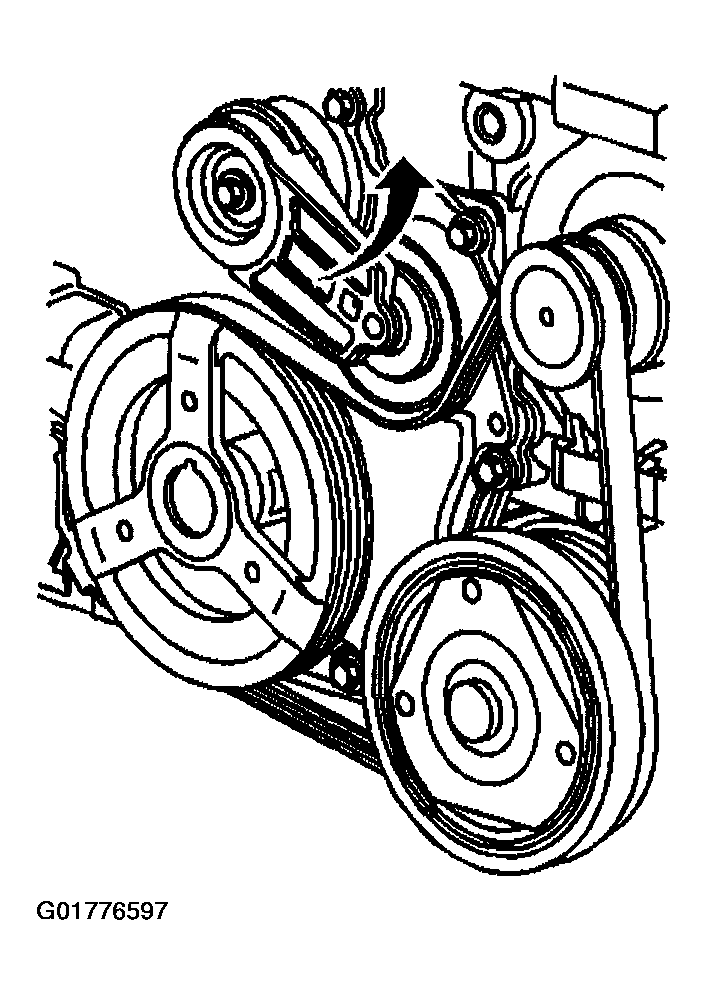

    Fig 1: Drive Belt Routing
    G01776597Courtesy of GENERAL MOTORS CORP.
