Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable.
  2. Remove the intake manifold. Refer to Intake Manifold Replacement .
  3. Remove the power steering pump bolts and set pump aside.

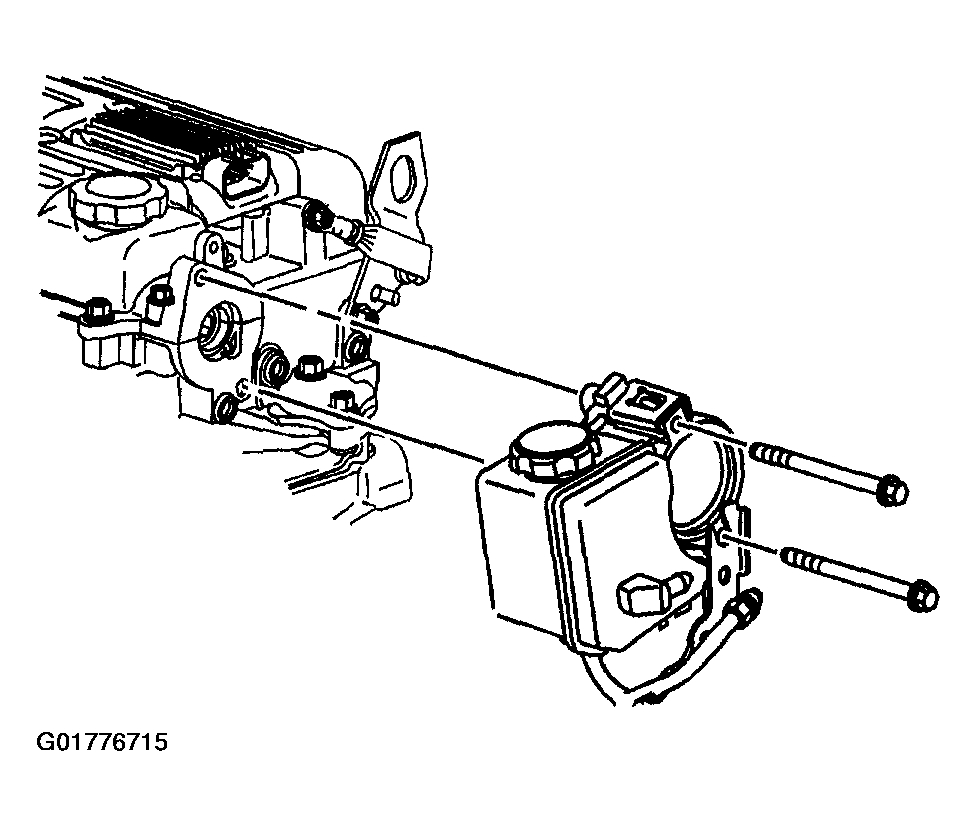

    Fig 1: Power Steering Pump
    G01776715Courtesy of GENERAL MOTORS CORP.
  4. Remove the exhaust manifold.
  5. Remove the timing chain. Refer to Timing Chain, Sprockets And/Or Tensioner Replacement .
  6. Drain the cooling system.
  7. Remove the cylinder head bolts in sequence and discard.

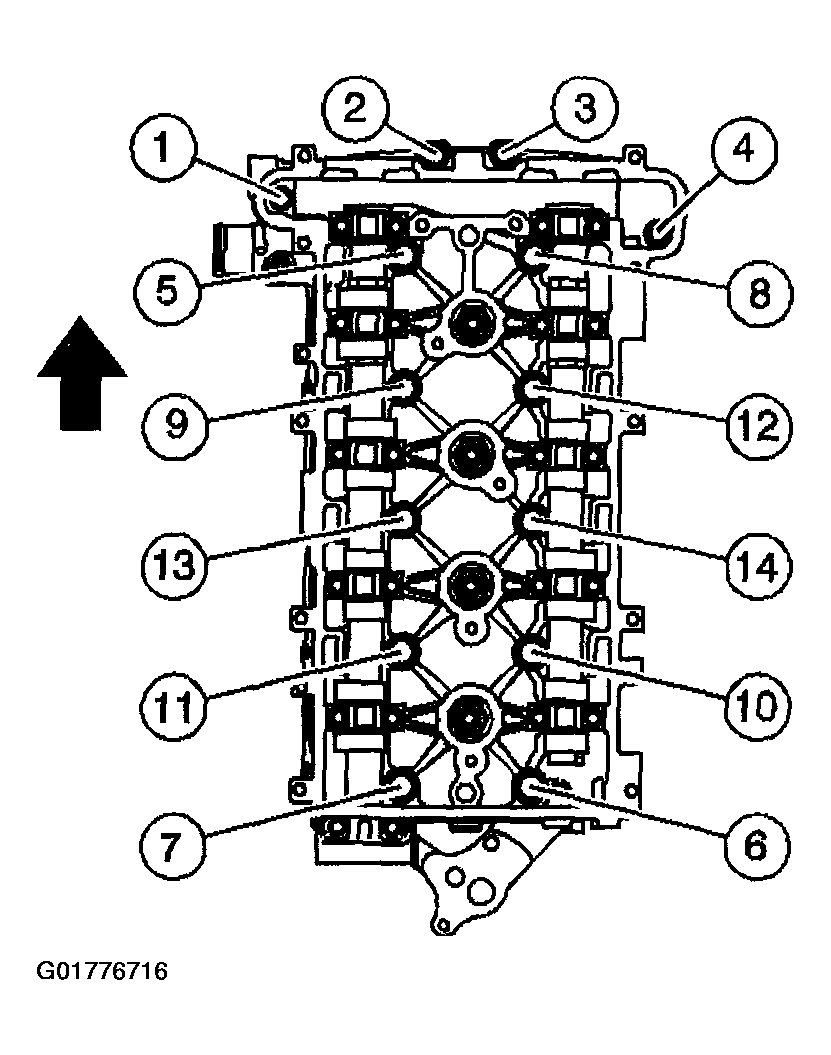

    Fig 2: Removing Cylinder Head Bolts In Sequence
    G01776716Courtesy of GENERAL MOTORS CORP.
  8. Remove the cylinder head and gasket.

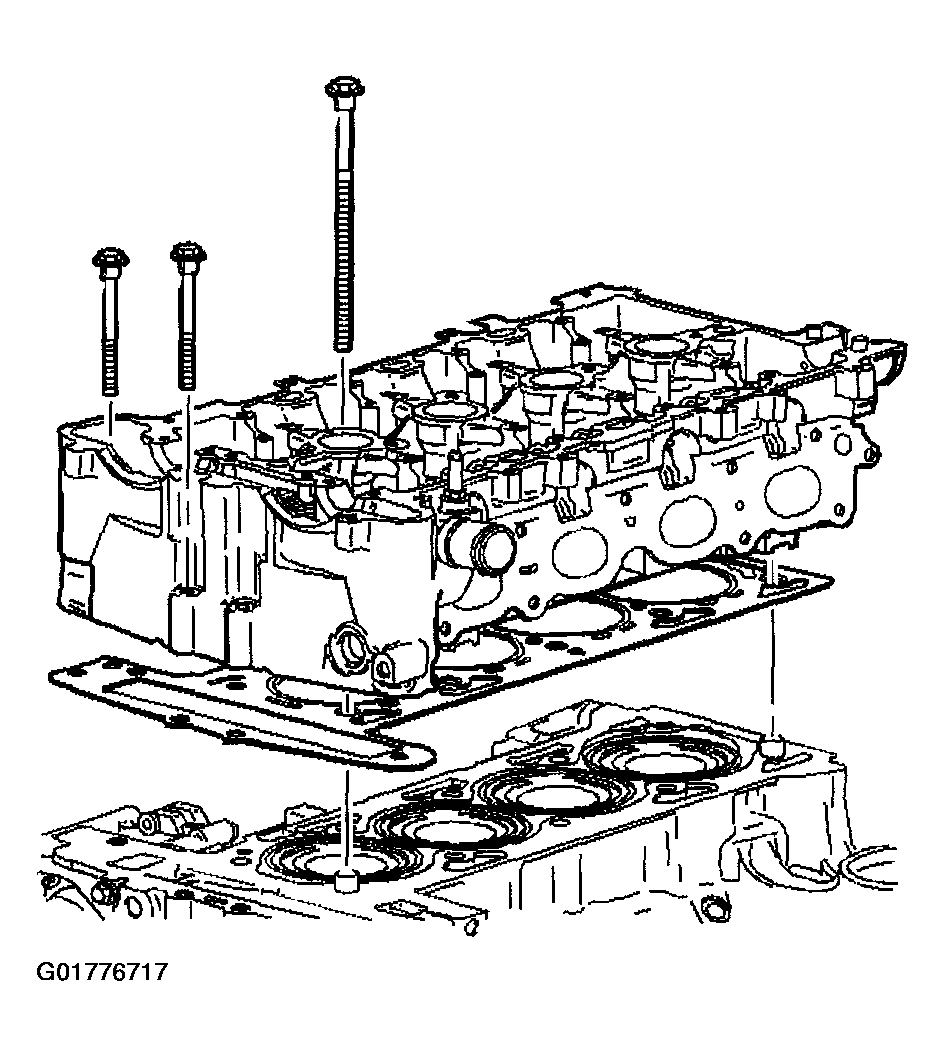

    9. Fig 3: Cylinder Head And Gasket
    G01776717Courtesy of GENERAL MOTORS CORP.
  9. Clean all gasket surfaces.
