Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission.
  2. Remove the flywheel.

    Important:  Make sure not to damage the outside diameter of the crankshaft or chamber with any tool.

  3. Pry the crankshaft rear oil seal with a flat bladed tool.

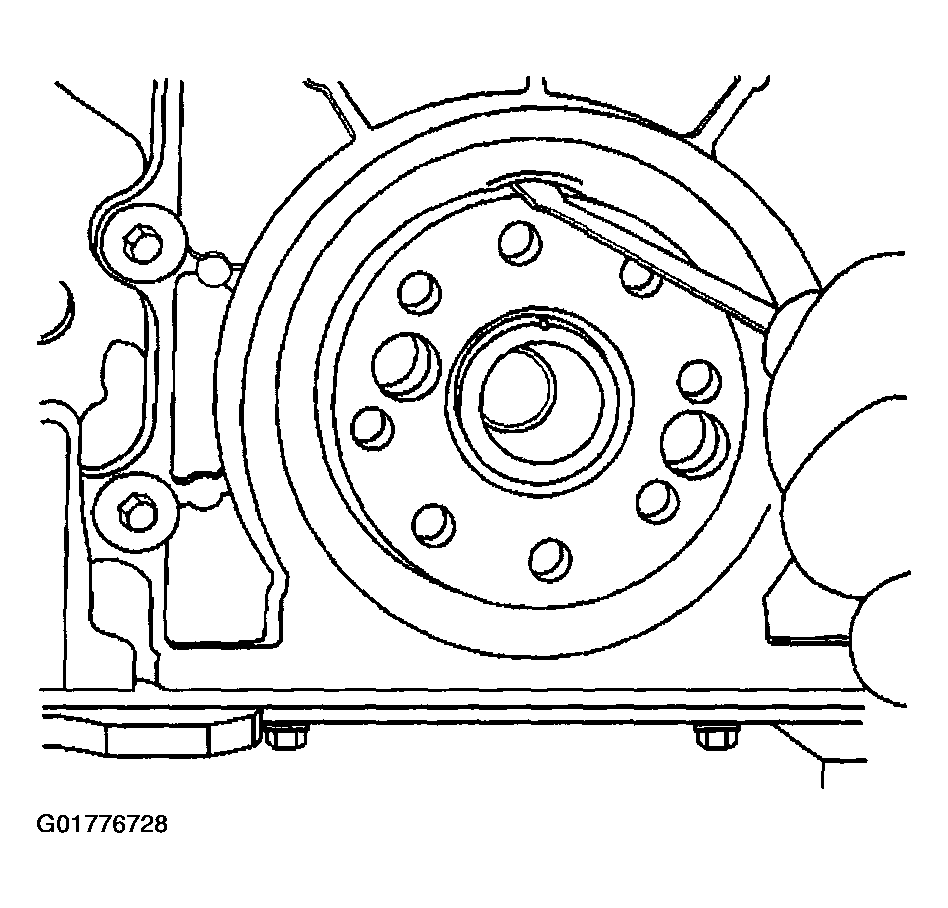

    Fig 1: Prying Crankshaft Rear Oil Seal
    G01776728Courtesy of GENERAL MOTORS CORP.
