Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

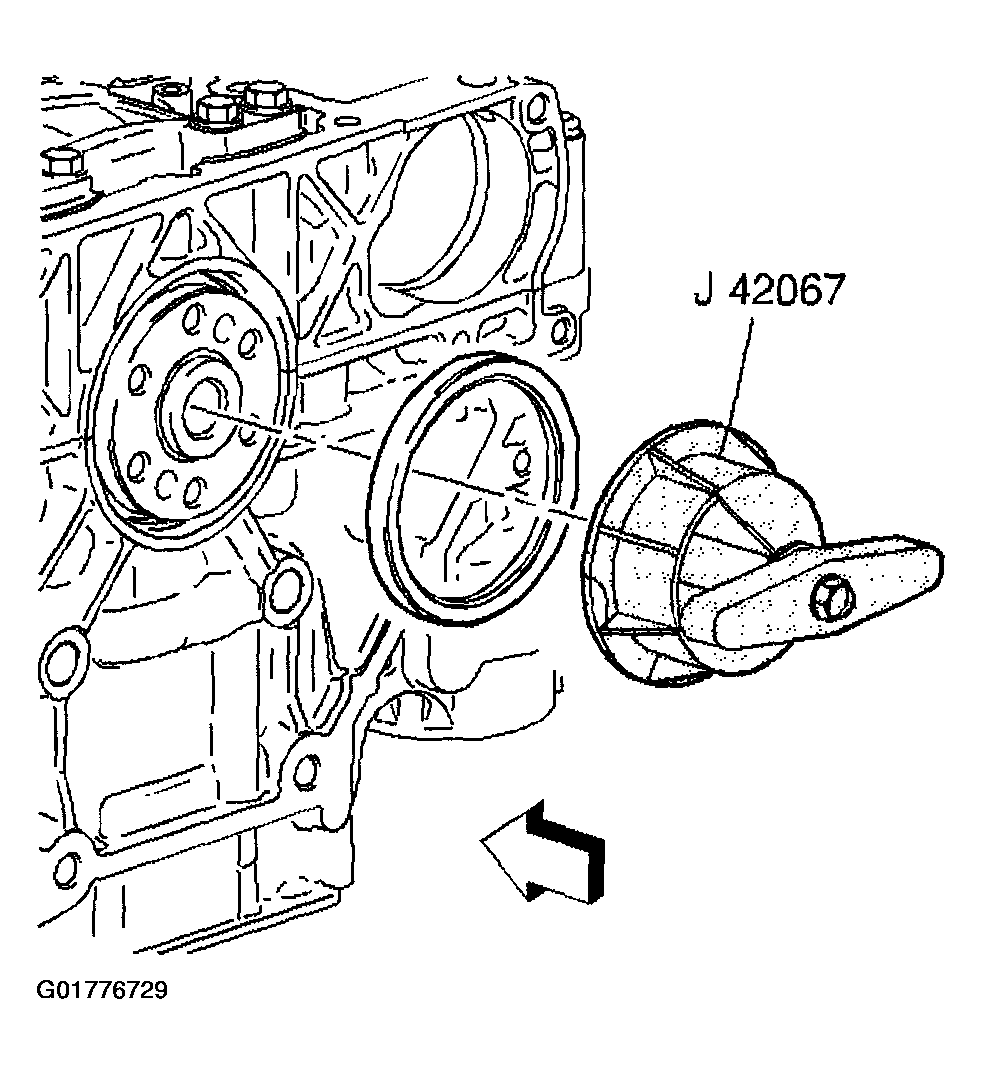

  1. Use the J 42607 and install the seal.
    Fig 1: Installing Crankshaft Rear Oil Seal
    G01776729Courtesy of GENERAL MOTORS CORP.
  2. Install the flywheel. Tighten the flywheel bolts to 53 N.m (39 lb ft) plus 25 degrees.
  3. Install the transmission.
