Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the front tire and wheel.
  3. Remove the front fender liner.
  4. Remove the engine drive belt. Refer to Drive Belt Replacement .
  5. Use J 38122-A  to prevent the crankshaft from rotating while loosening the crankshaft balancer bolt.

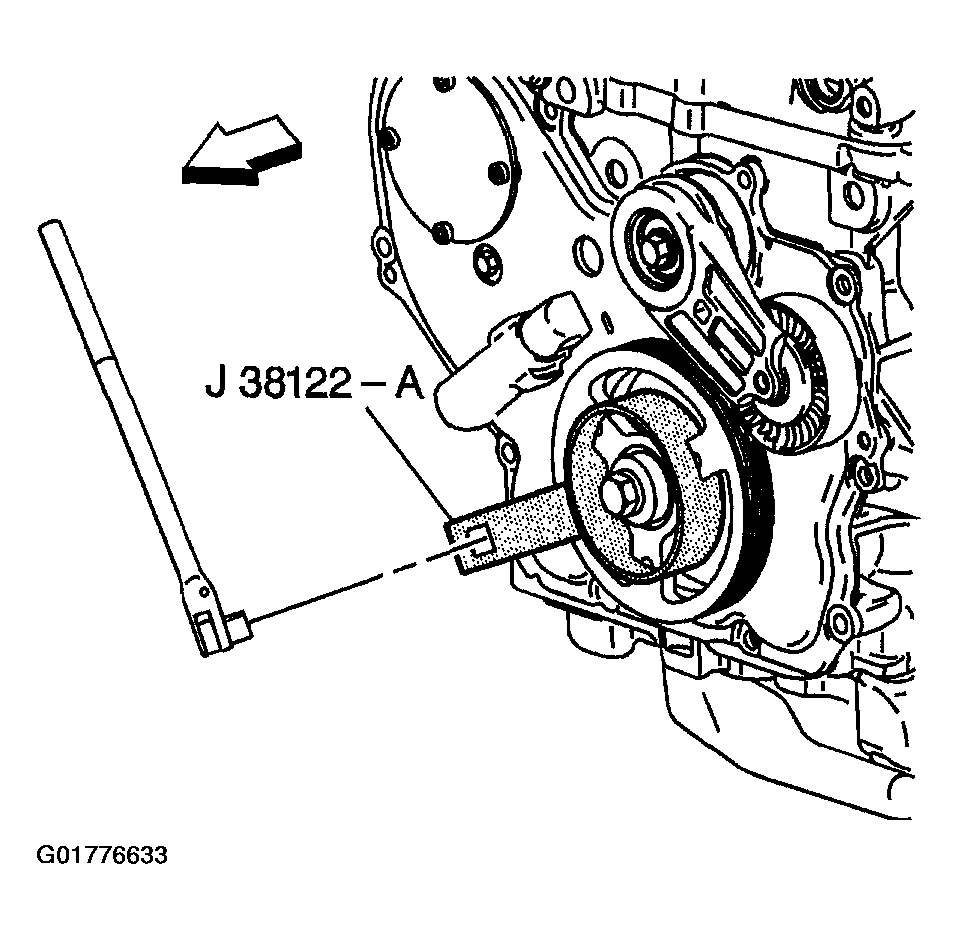

    6. Fig 1: Harmonic Balancer Holder
    G01776633Courtesy of GENERAL MOTORS CORP.
  6. Remover the crankshaft balancer bolt. Discard the bolt.
  7. Remove the crankshaft balancer.

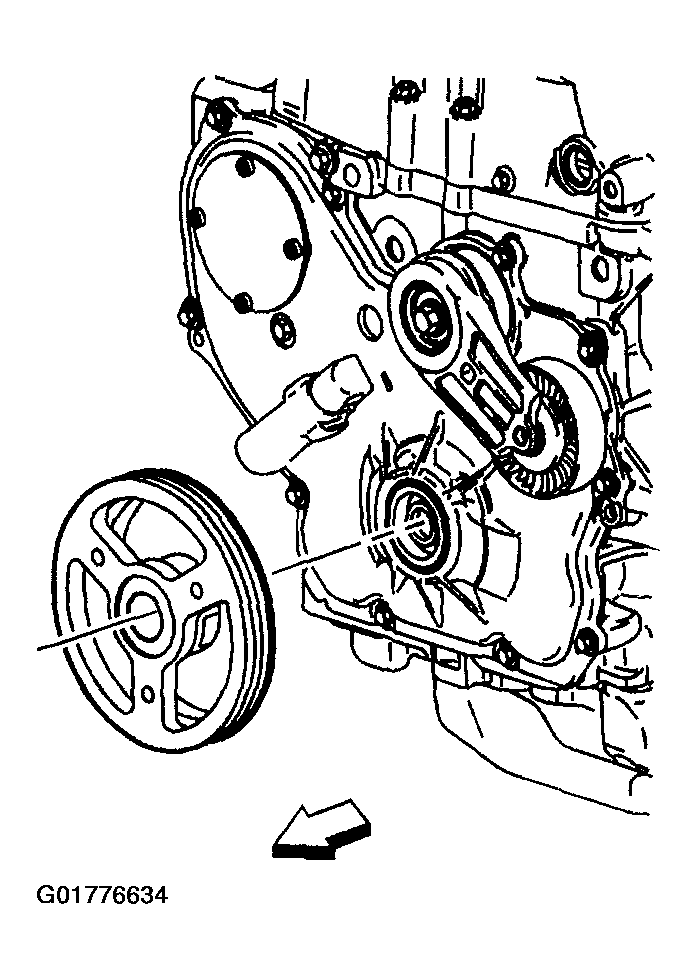

    Fig 2: Crankshaft Balancer
    G01776634Courtesy of GENERAL MOTORS CORP.
