Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the crankcase ventilation hose from the camshaft cover.
  2. Disconnect the crankcase ventilation hose from the intake manifold.

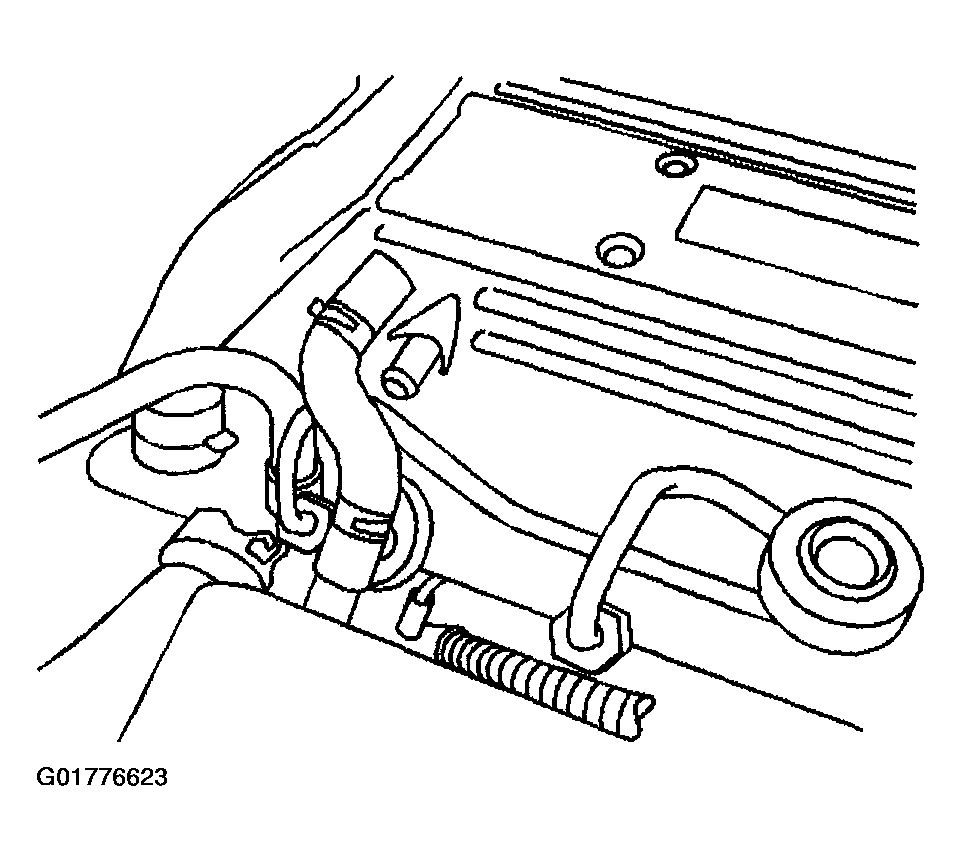

    Fig 1: Crankcase Ventilation Hose
    G01776623Courtesy of GENERAL MOTORS CORP.
