Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the air outlet resonator.
  3. Remove the accelerator and cruise control cables bracket.
  4. Remove the PCV hose.
  5. Remove the fuel line brackets.
  6. Remove the brake booster hose/pipe from it's bracket.
  7. Remove the ignition coil and module assembly.

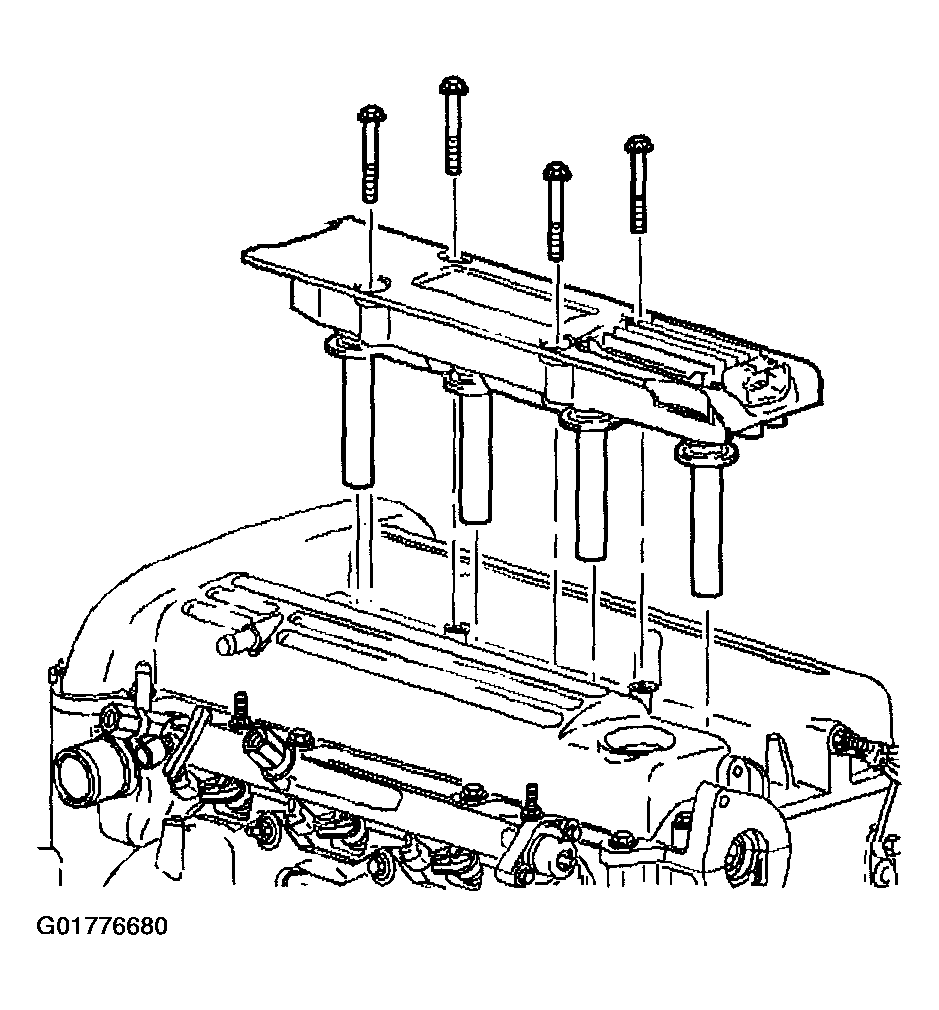

    Fig 1: Ignition Coil And Module Assembly
    G01776680Courtesy of GENERAL MOTORS CORP.
  8. Remove the ground strap.

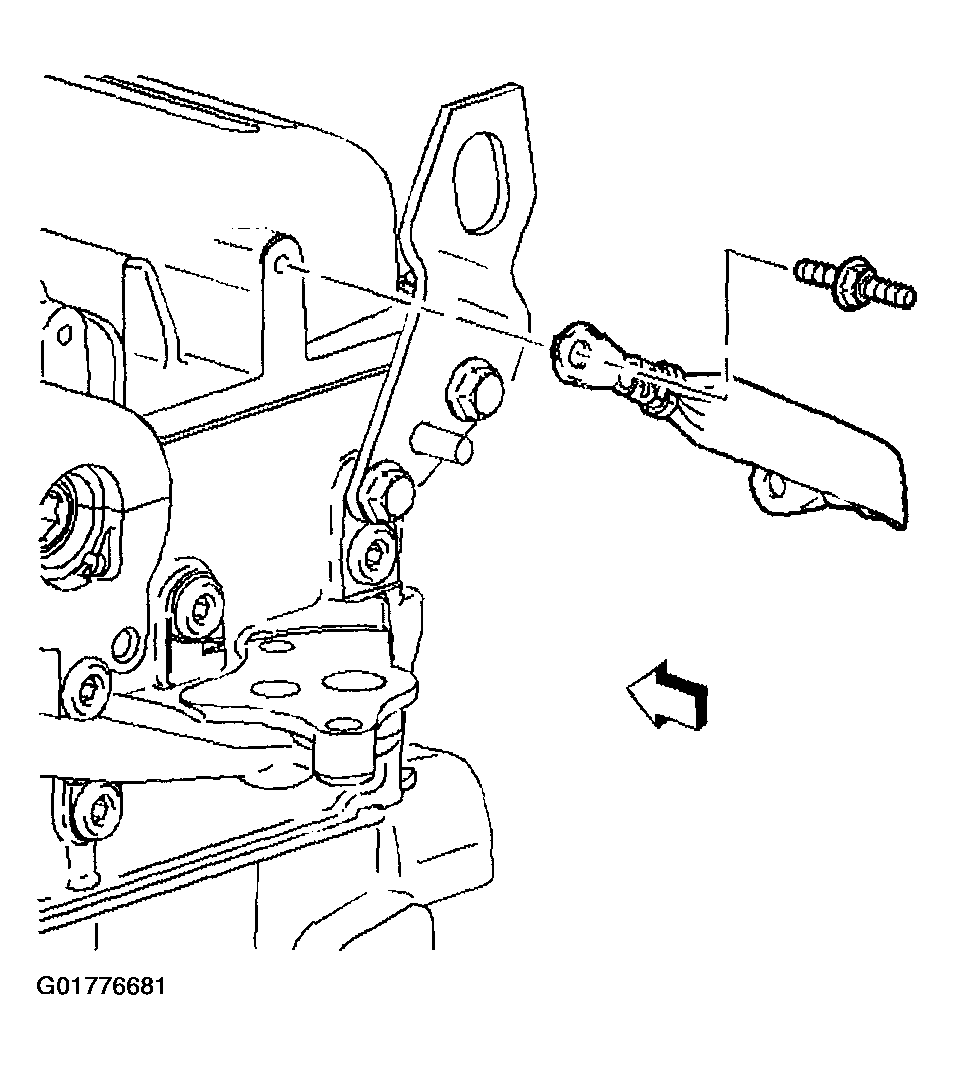

    Fig 2: Ground Strap
    G01776681Courtesy of GENERAL MOTORS CORP.
  9. Remove the camshaft cover bolts.
  10. Remove the camshaft cover.

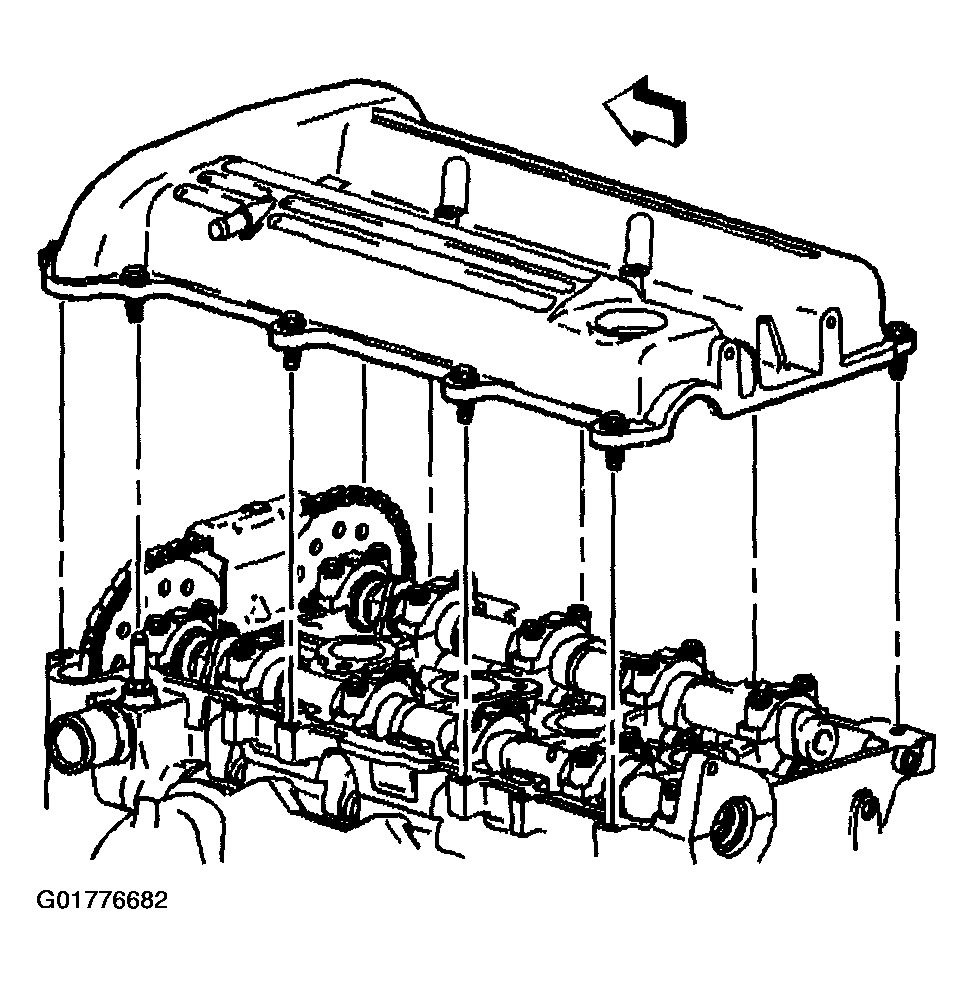

    Fig 3: Camshaft Cover
    G01776682Courtesy of GENERAL MOTORS CORP.
