Base Engine Misfire Without Internal Engine Noises

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

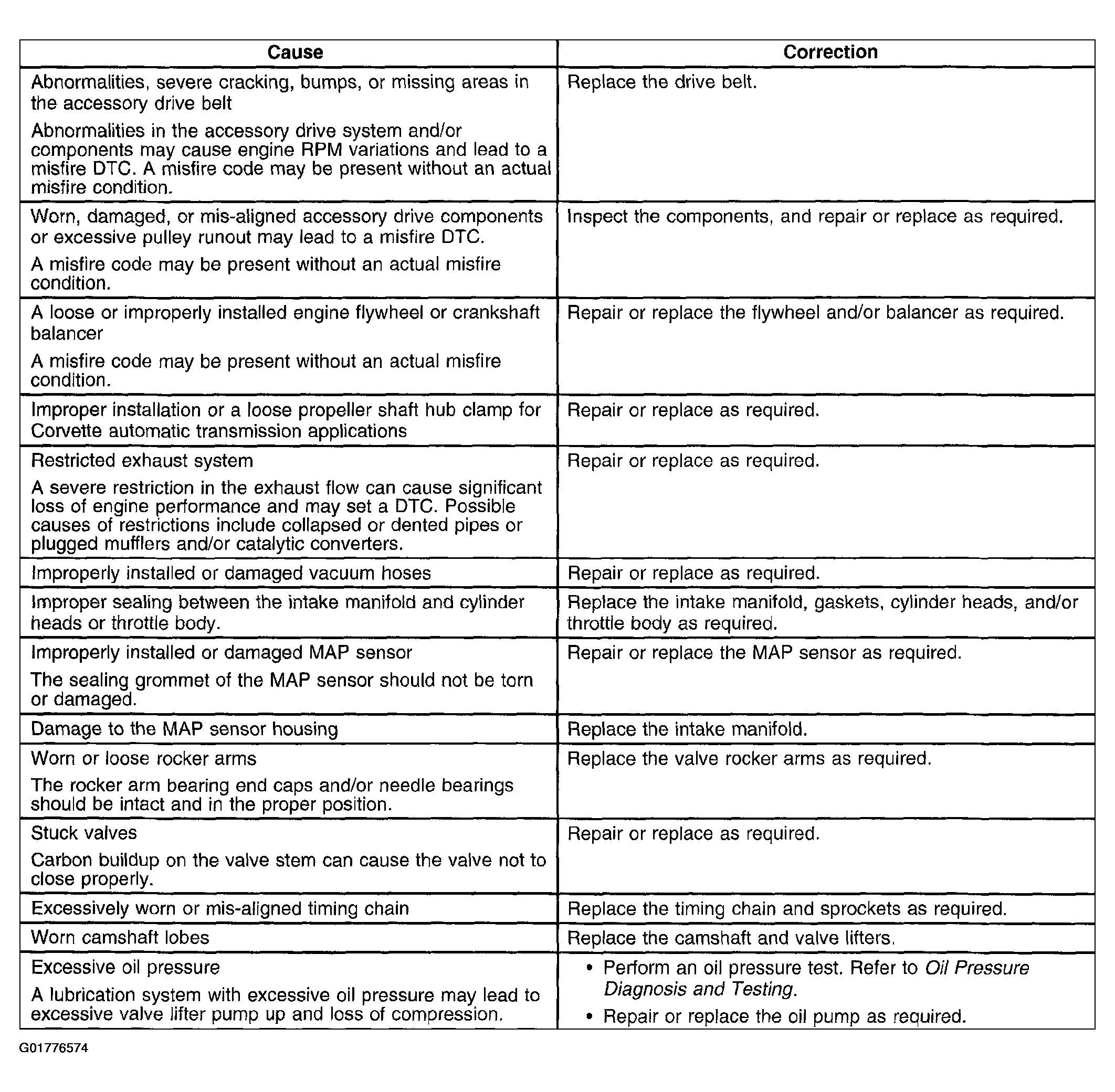

Fig 1: Base Engine Misfire Without Internal Engine Noises Diagnosis (1 Of 2)
G01776574Courtesy of GENERAL MOTORS CORP.

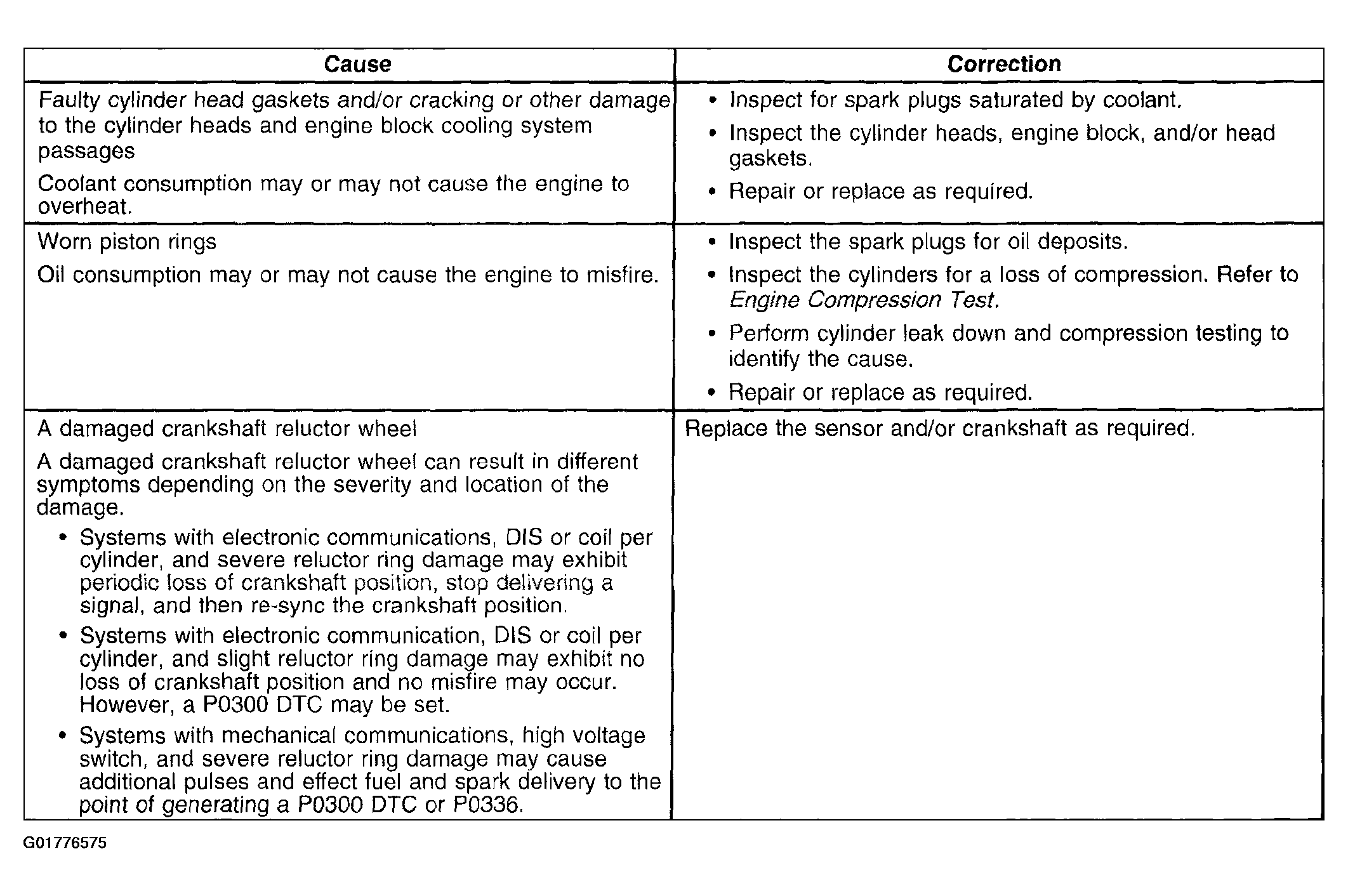

Fig 2: Base Engine Misfire Without Internal Engine Noises Diagnosis (2 Of 2)
G01776575Courtesy of GENERAL MOTORS CORP.
