Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Pull the hood rear seal (1) from the pinch weld.

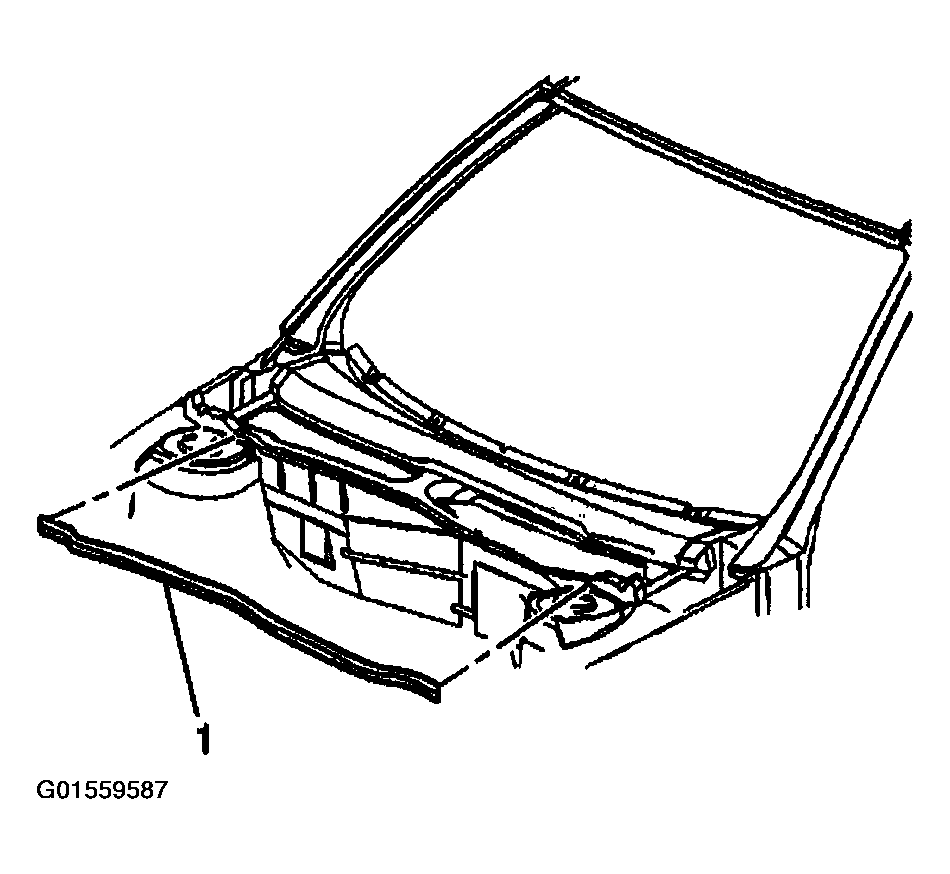

    Fig 1: Removing Hood Rear Seal
    G01559587Courtesy of GENERAL MOTORS CORP.
