Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the hood rear seal to the vehicle.
  2. Push the hood rear seal (1) into the pinch weld in order to fully seat the seal.

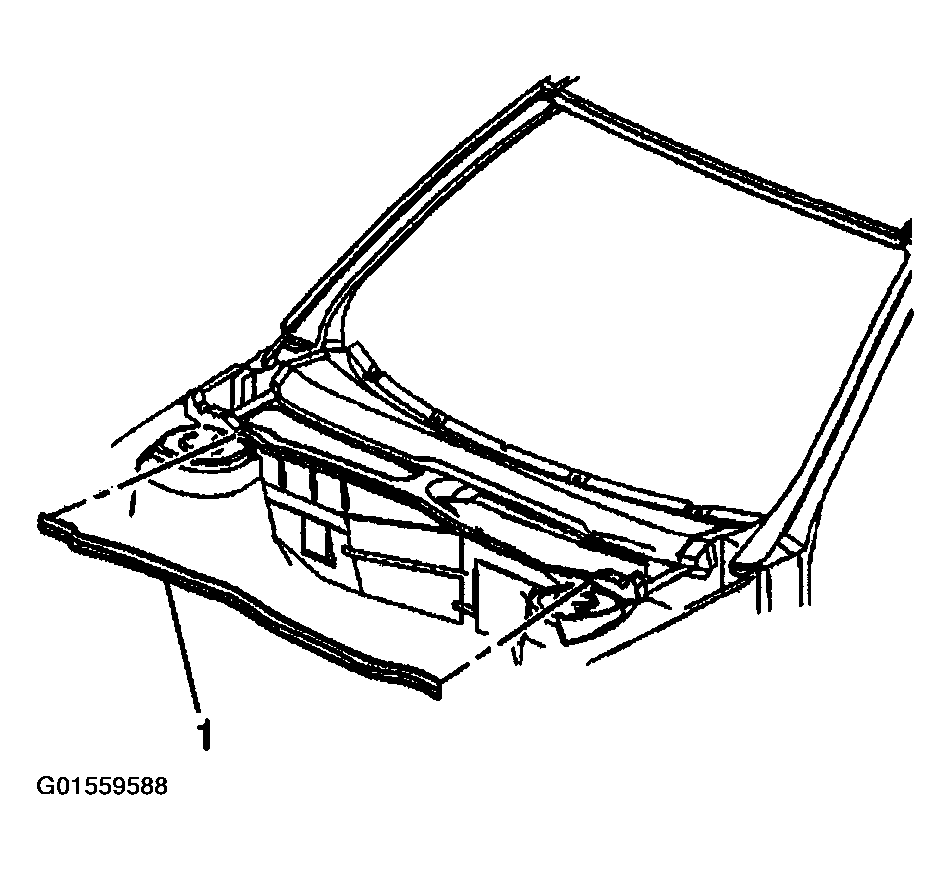

    Fig 1: Installing Hood Rear Seal
    G01559588Courtesy of GENERAL MOTORS CORP.
