Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Pull the rear side hood seal, located at the end of the plenum to hood seal, from the fender.
  3. Remove the seal from the vehicle.
  4. Clean any adhesive from the pinch-weld flange and hood hinge using 3M™ P/N 8984.

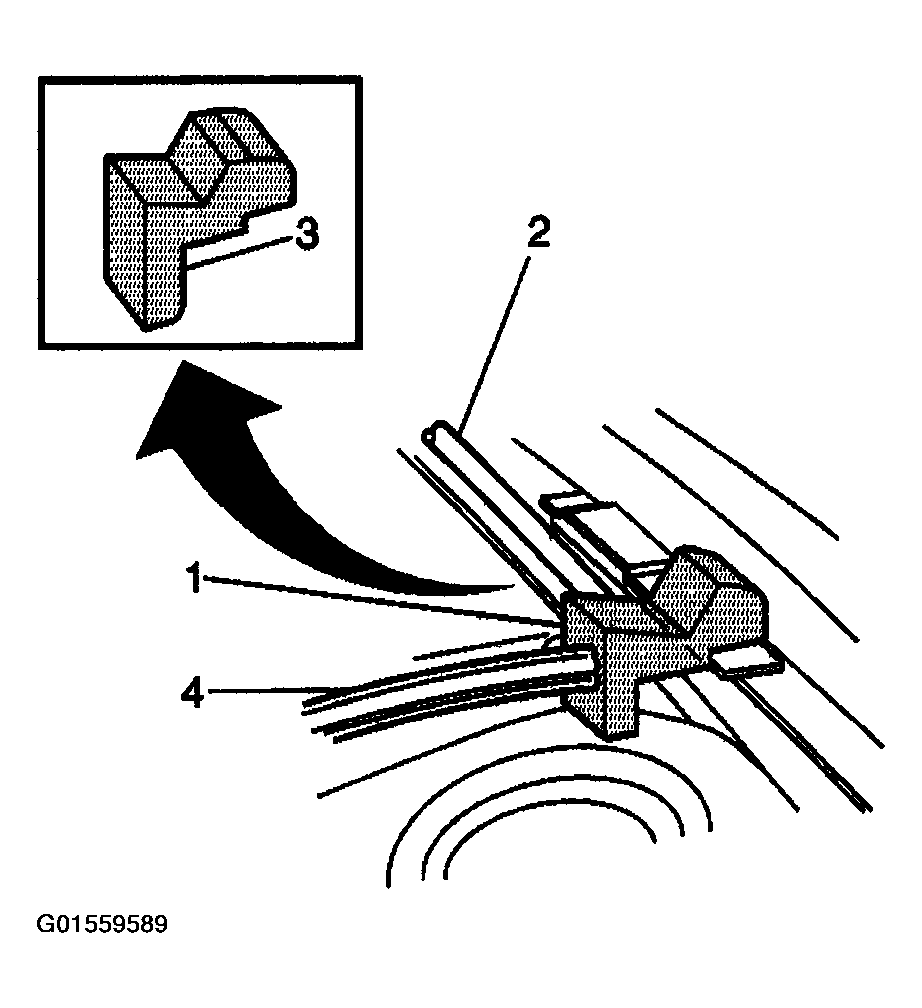

    Fig 1: Removing Hood Rear Side Seal
    G01559589Courtesy of GENERAL MOTORS CORP.
