Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner assembly.
  2. Remove the battery. Refer to BATTERY REPLACEMENT in Battery.
  3. Remove the underhood electrical center push-in retainer (3) and reposition.
  4. Remove the clutch pedal reservoir, if equipped.

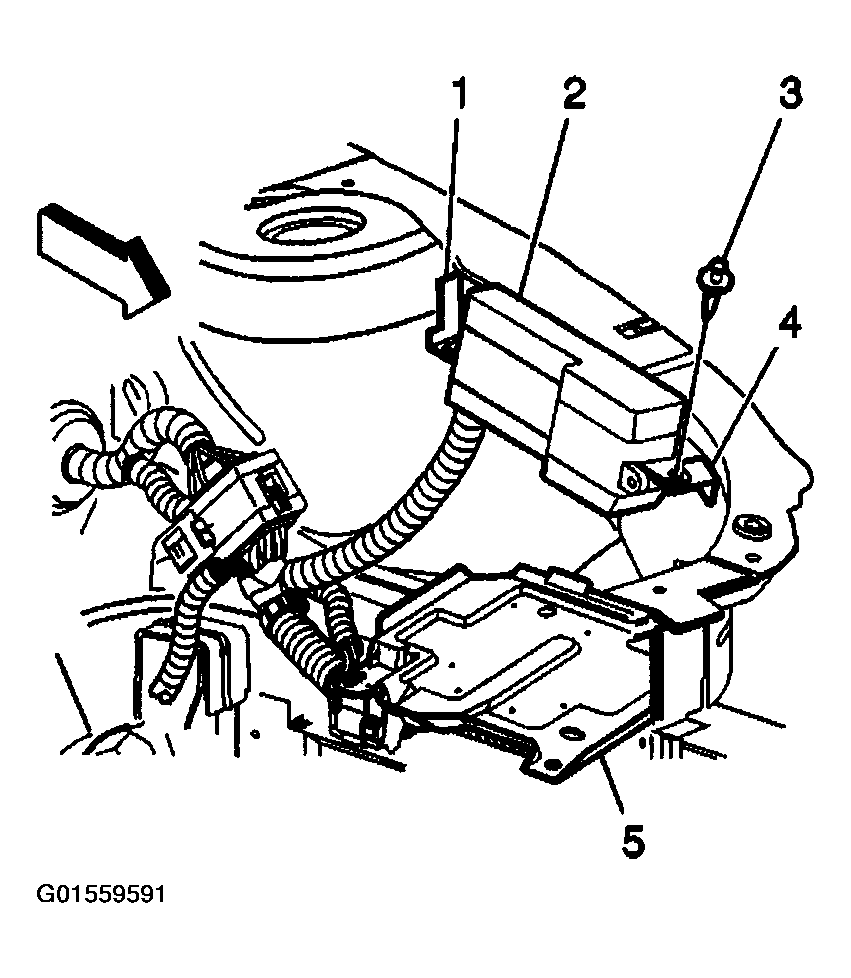

    Fig 1: Removing Underhood Electrical Center Push-In Retainer
    G01559591Courtesy of GENERAL MOTORS CORP.
  5. Lift the front of the air cleaner mounting bracket (1) to disengage it from the air inlet duct (3).

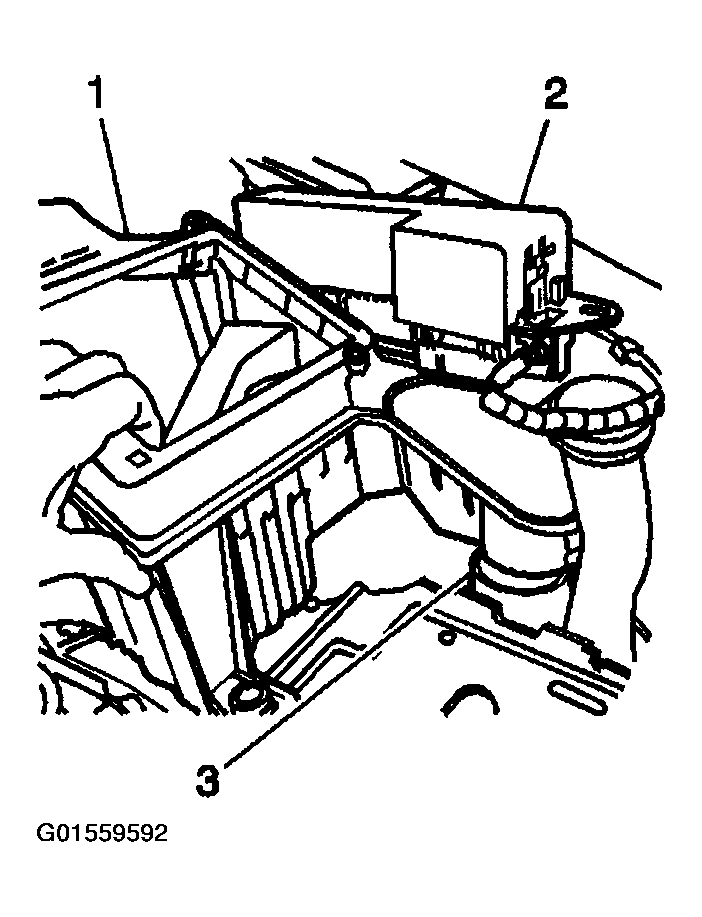

    Fig 2: Aligning Front Air Cleaner Mounting Bracket
    G01559592Courtesy of GENERAL MOTORS CORP.
  6. Slide the air cleaner mounting bracket forward to disengage the rear rubber mount (2).
  7. Remove the air cleaner mounting bracket (1).

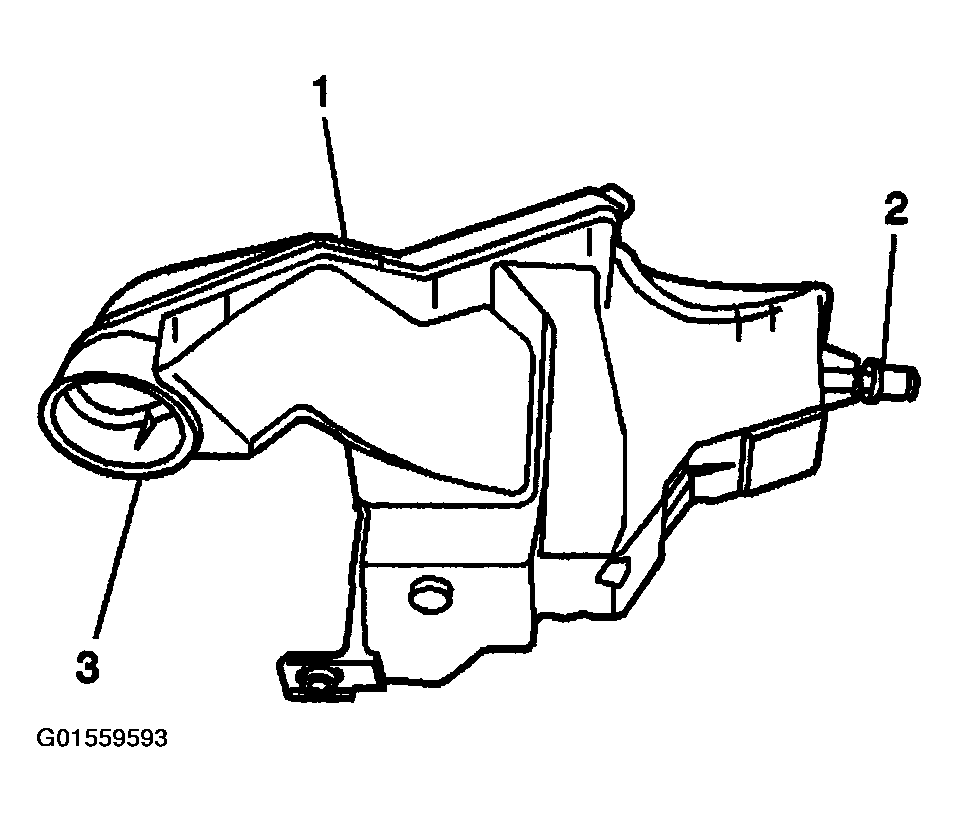

    Fig 3: View Of Front Air Inlet Duct
    G01559593Courtesy of GENERAL MOTORS CORP.
