Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the air cleaner mounting bracket (1) to the vehicle.
  2. Push the air cleaner mounting bracket to the rear to engage the rubber mount.
  3. Place the front of the mounting bracket into the air duct (3).

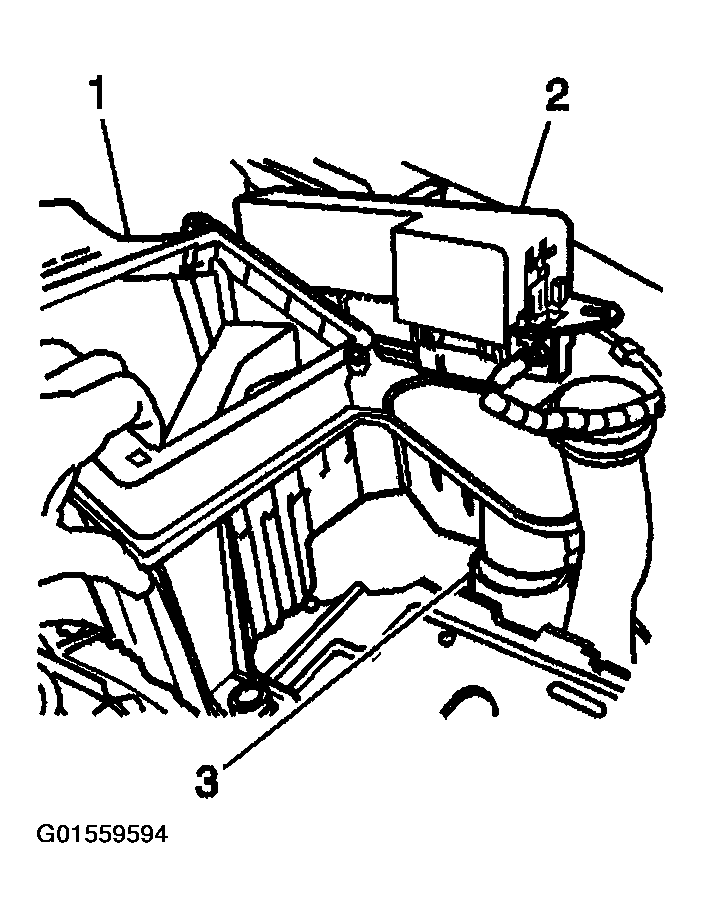

    Fig 1: Aligning Front Air Cleaner Mounting Bracket
    G01559594Courtesy of GENERAL MOTORS CORP.
  4. Install the clutch pedal reservoir, if equipped.
  5. Install the battery. Refer to BATTERY REPLACEMENT in Battery.

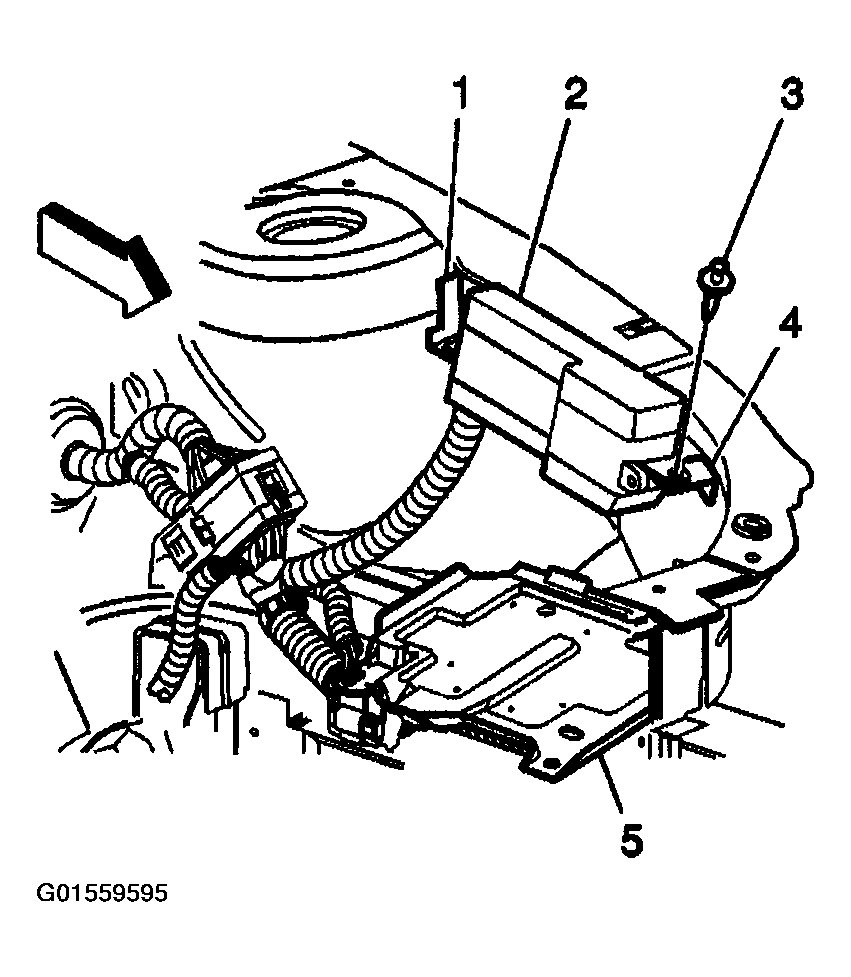

    Fig 2: Installing Underhood Electrical Center Push-In Retainer
    G01559595Courtesy of GENERAL MOTORS CORP.
  6. Install the air cleaner assembly.
