Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When removing body panels, apply tape to corners of panel and adjacent surfaces to help prevent paint damage.
  1. Open and support the hood.
  2. Install a protective covering over the fenders.
  3. Remove the hood insulator, if equipped. Refer to Hood Insulator Replacement .
  4. Remove the hood latch striker. Refer to Hood Latch Striker Replacement .
  5. Mark the upper hood hinge location to the hood with a grease pencil.
  6. With the aid of an assistant, remove the bolts which secure the hood hinge to the hood.
  7. With the aid of an assistant, remove the hood.

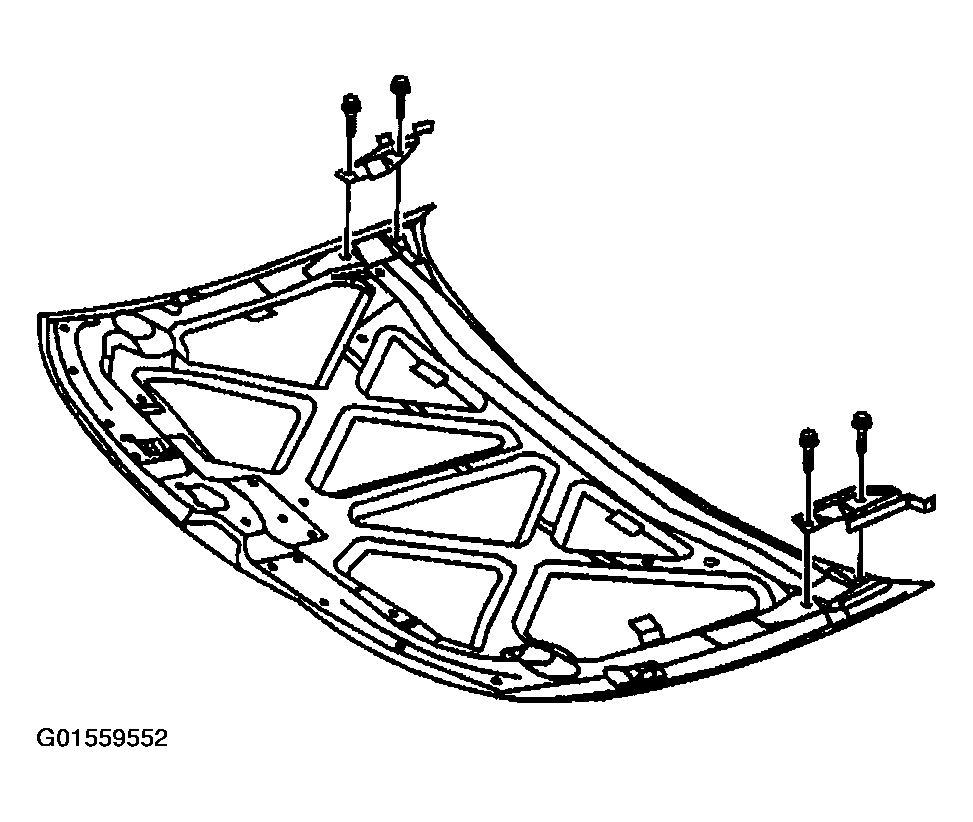

    Fig 1: Removing Hood Hinges & Bolts
    G01559552Courtesy of GENERAL MOTORS CORP.
