Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Mark the location of the hood latch striker on the hood.
  3. Remove the hood latch striker bolts (2) from the hood.
  4. Remove the hood latch striker (1) from the hood.

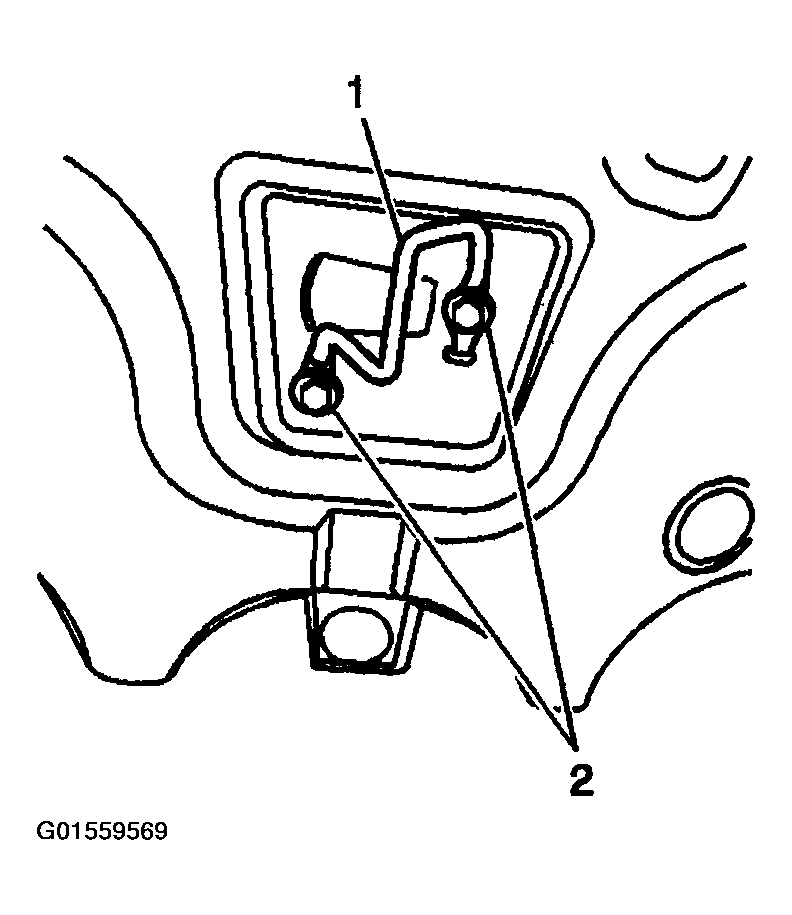

    Fig 1: Removing Hood Latch Striker & Bolts
    G01559569Courtesy of GENERAL MOTORS CORP.
