Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the hood latch striker (1) to the hood to the marks on the hood.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the hood latch striker bolts (2) to the hood.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

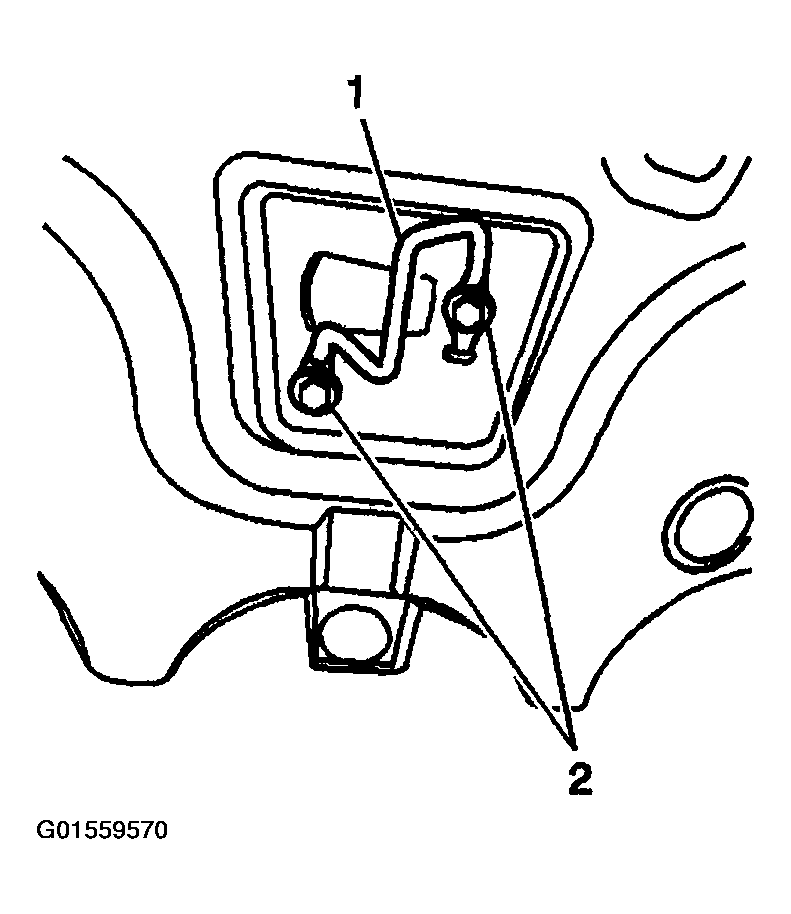

    Fig 1: Installing Hood Latch Striker & Bolts
    G01559570Courtesy of GENERAL MOTORS CORP.
  3. Adjust the hood latch striker if necessary.
  4. Close the hood.
