Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Mark the hood latch location to the support bracket with a grease pencil.
  3. Remove the hood latch bolts (2).
  4. Disconnect the hood latch release cable (3) from the hood latch (1) by squeezing the cable retainer.
  5. Remove the hood latch (1) from the vehicle.

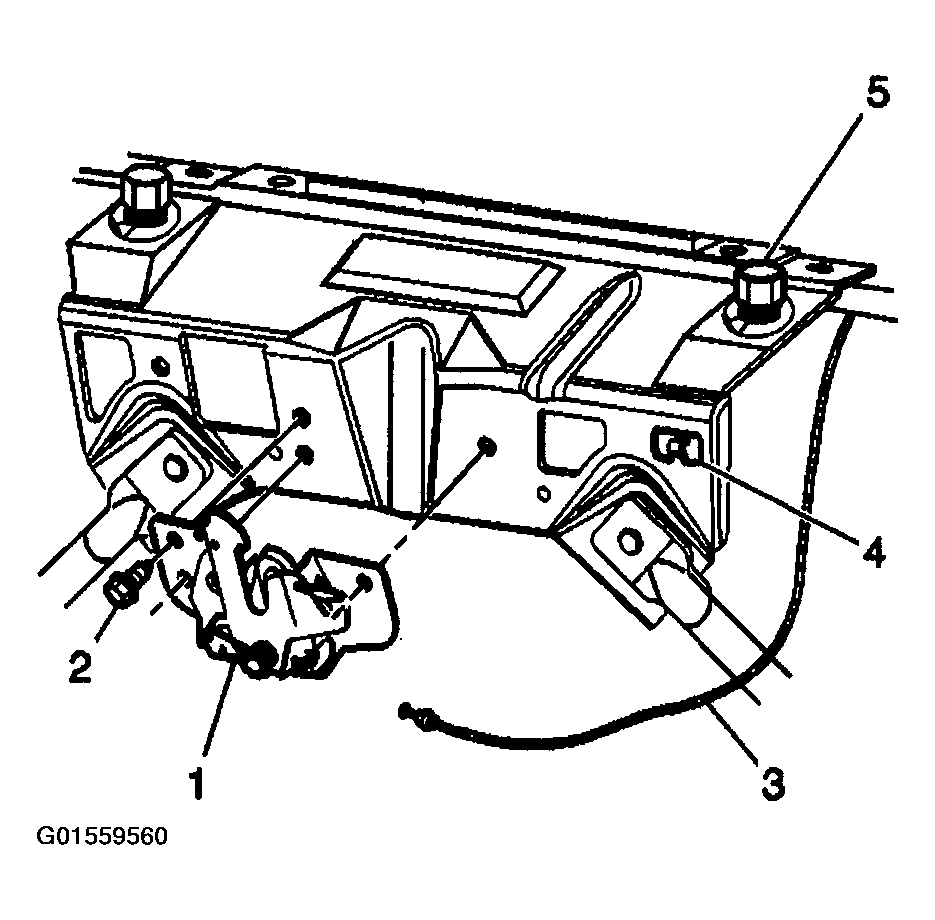

    Fig 1: Removing Hood Latch, Release Cable & Bolts
    G01559560Courtesy of GENERAL MOTORS CORP.
