Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. If Sunfire, remove the hood close out filler panel. Refer to Hood Close Out Filler Replacement
  2. Remove the hood latch cover retainers (2).
  3. Remove the hood latch cover (1).

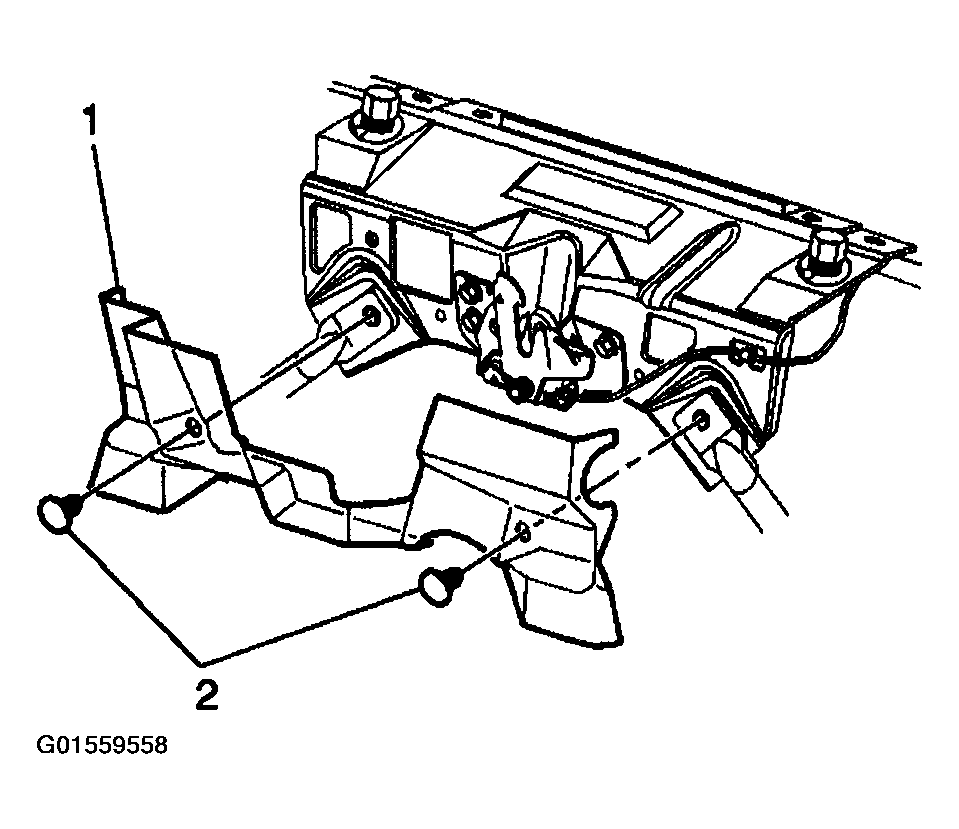

    Fig 1: Removing Hood Latch Cover & Retainers
    G01559558Courtesy of GENERAL MOTORS CORP.
