Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood latch cover (1).
  2. Install the hood latch cover retainers (2).
  3. If Sunfire, install the hood close out filler panel. Refer to Hood Close Out Filler Replacement

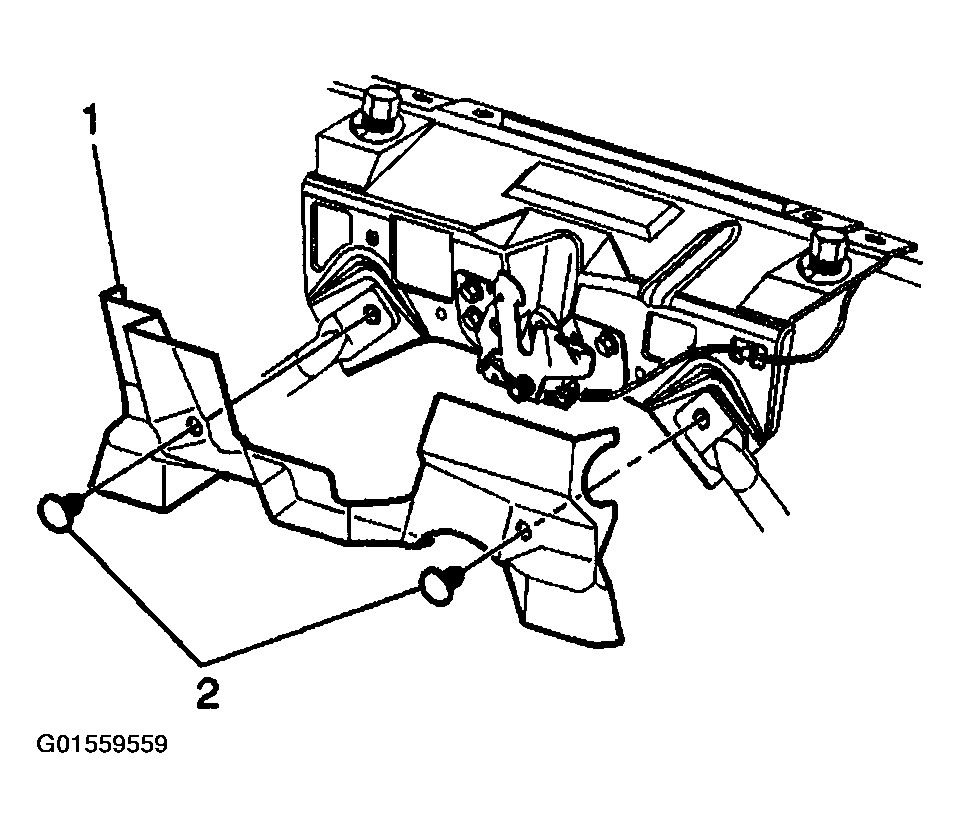

    Fig 1: Installing Hood Latch Cover & Retainers
    G01559559Courtesy of GENERAL MOTORS CORP.
