Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Use the J 38778  to remove the hood insulator push-in retainers from the hood.
  3. Remove the hood insulator from the hood.

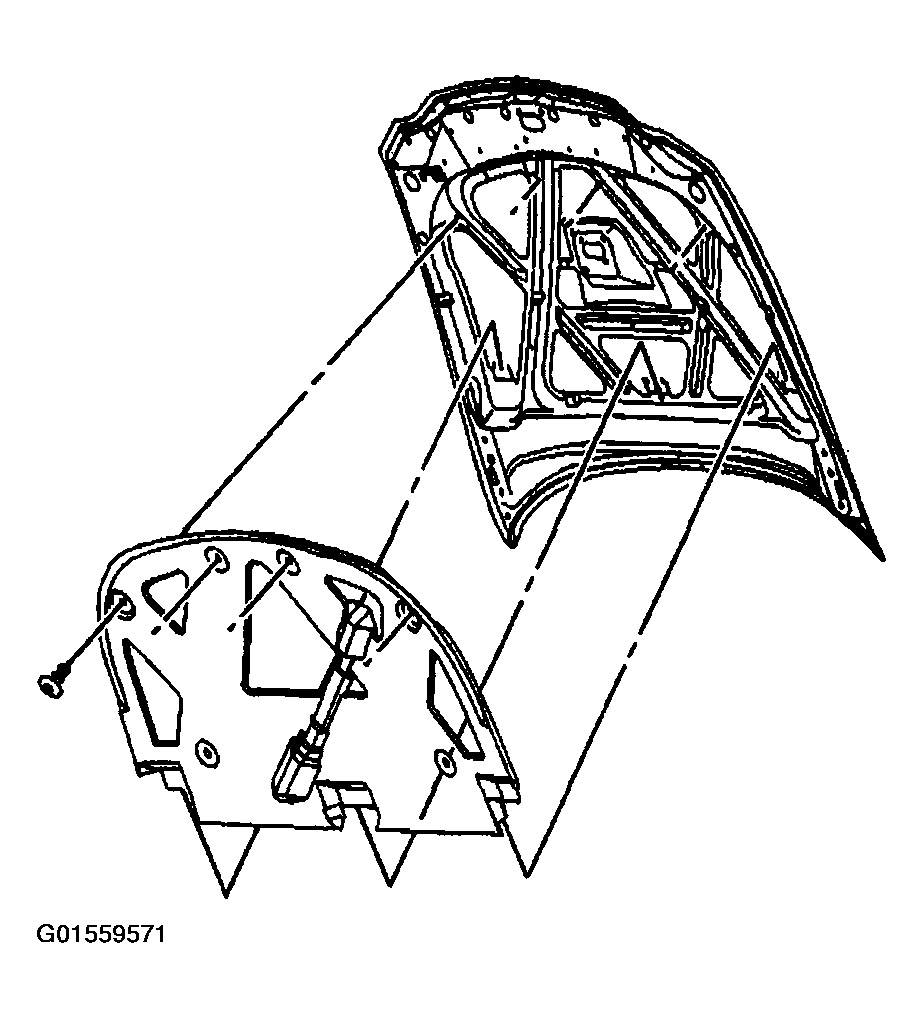

    Fig 1: Removing Hood Insulator & Push-In Retainers
    G01559571Courtesy of GENERAL MOTORS CORP.
