Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the hood insulator to the hood.
  2. Install the hood insulator push-in retainers until fully seated.
  3. Close the hood.

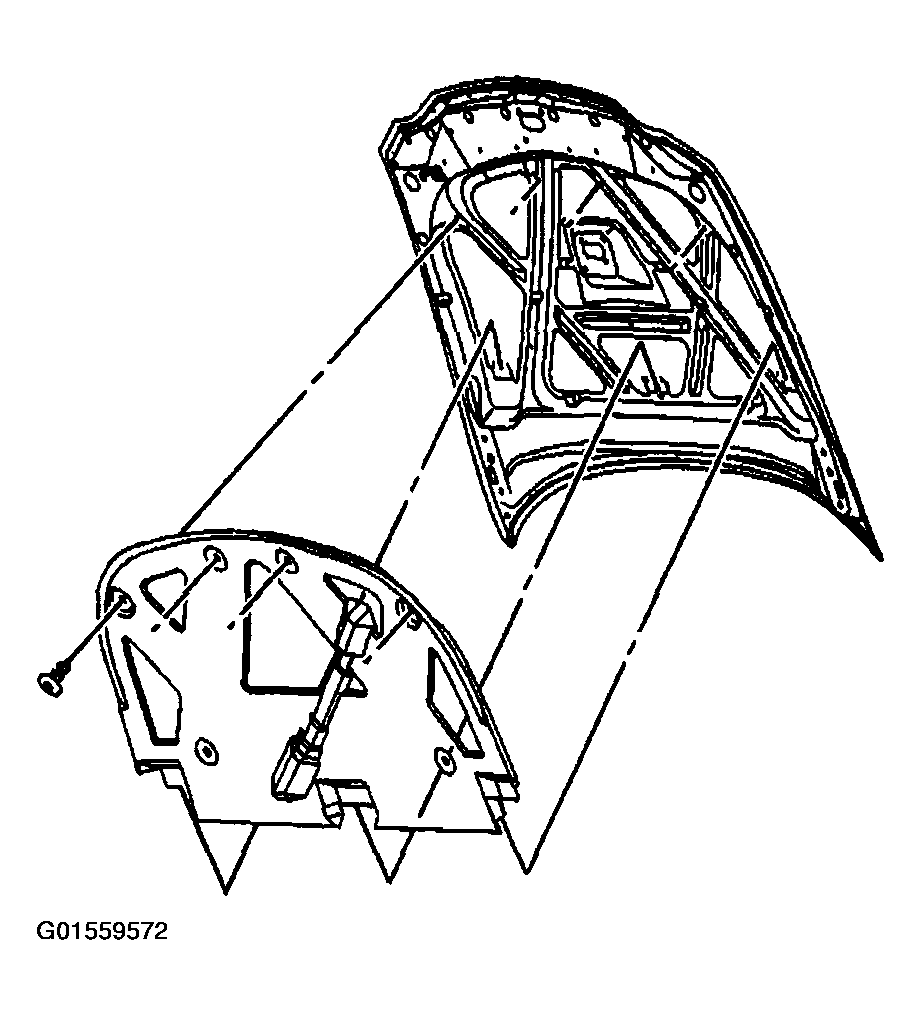

    Fig 1: Installing Hood Insulator & Push-In Retainers
    G01559572Courtesy of GENERAL MOTORS CORP.
