Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
  1. Open and support the hood.
  2. Remove the support from the hood rod retaining clip (1).
  3. Use a small, flat-bladed tool to lift up the retainer clip (1).
  4. Use a small, flat-bladed tool to remove the hood hold open rod (2), by prying outward.

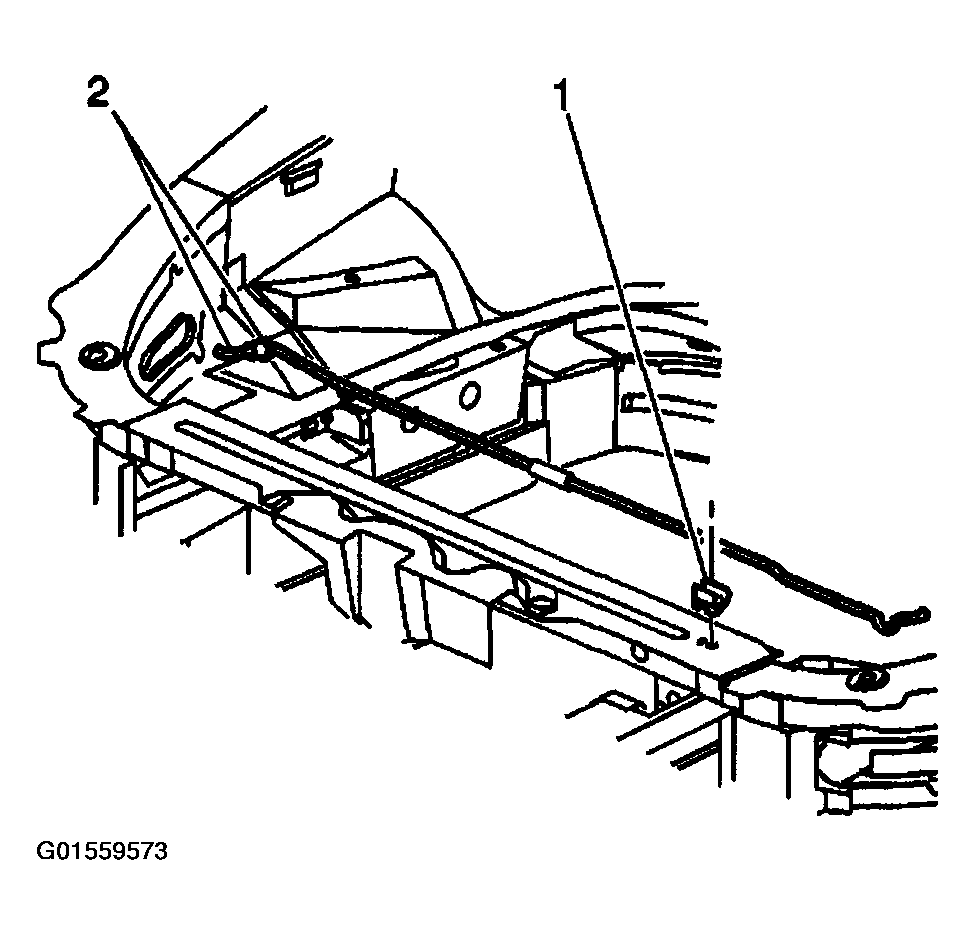

    Fig 1: Removing Hood Hold Open Rod & Retainer Clip
    G01559573Courtesy of GENERAL MOTORS CORP.
  5. Remove the hood hold open rod retainer bushing by pulling outward.
