Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the hood hold open rod retainer to the radiator support. Press in until fully seated.
  2. Push the hood hold open rod (2) into the retainer until fully seated.
  3. Install the retainer clip (1).
  4. Position the rod in the clip (1).

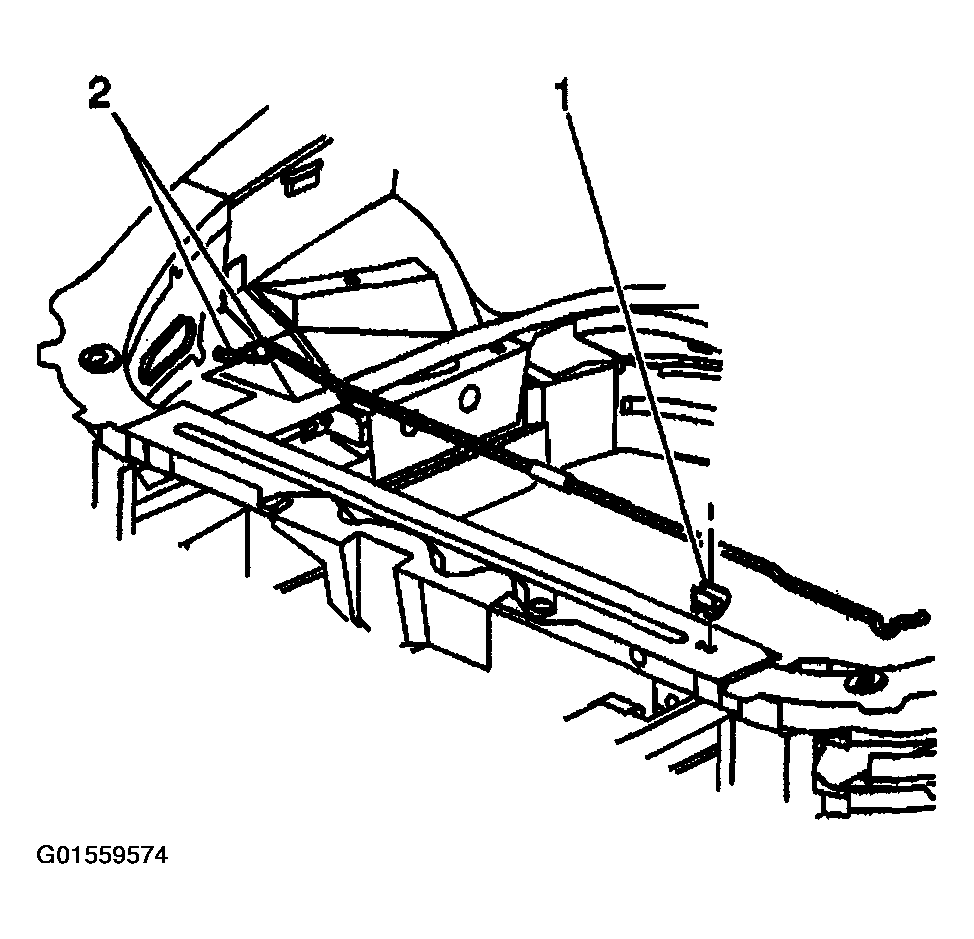

    Fig 1: Installing Hood Hold Open Rod & Retainer Clip
    G01559574Courtesy of GENERAL MOTORS CORP.
  5. Remove the hood support.
  6. Close the hood.
