Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the hood. Refer to Hood Replacement
  2. Using a grease pencil, mark the position of the hood hinge to the fender.
  3. Remove the hinge to fender bolts.
  4. Remove the hinge from the vehicle.

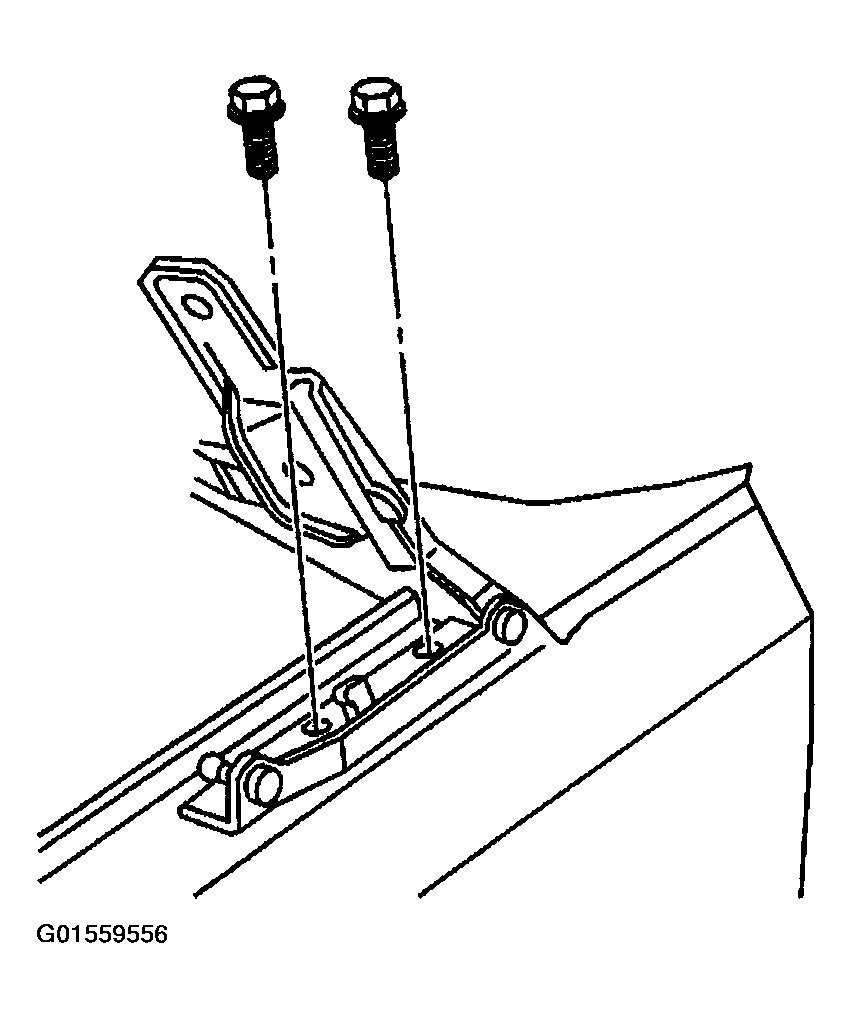

    Fig 1: Removing Hinge To Fender Bolts
    G01559556Courtesy of GENERAL MOTORS CORP.
