Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the hood hinge to the alignment marks on the fender.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the hood hinge to fender bolts.

    Tighten

    Tighten the hood hinge bolts to 20 N.m (15 lb ft).

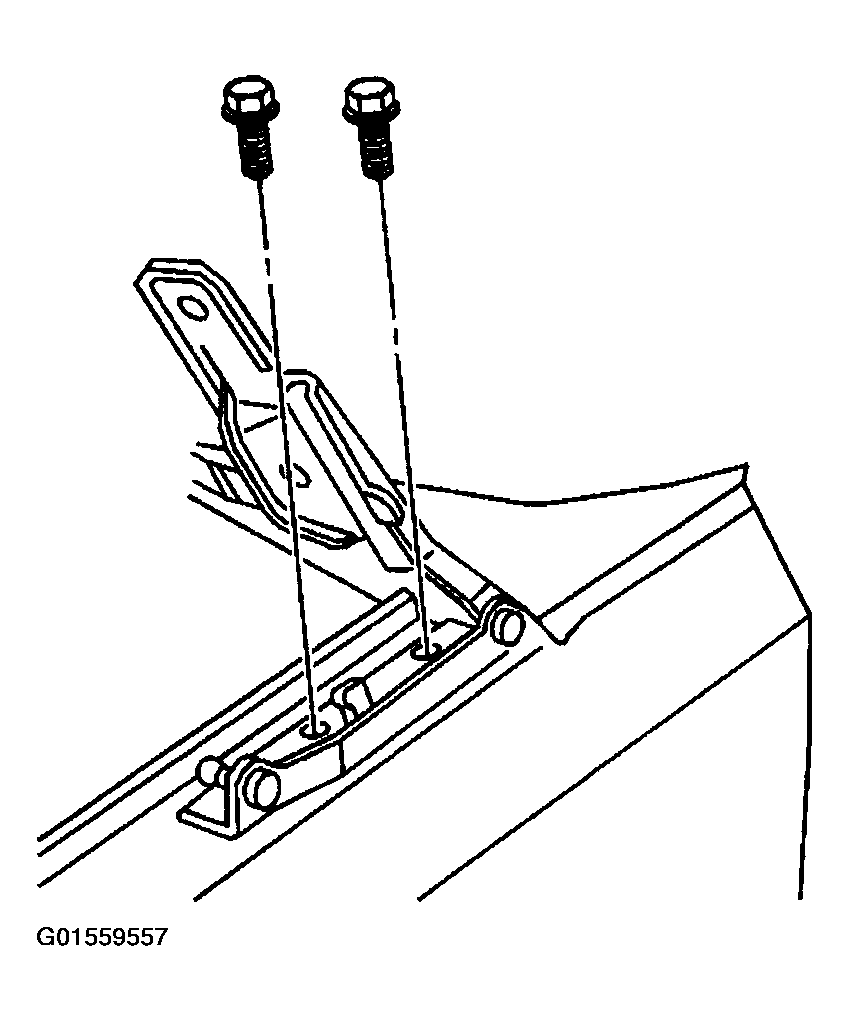

    Fig 1: Installing Hinge To Fender Bolts
    G01559557Courtesy of GENERAL MOTORS CORP.
  3. Install the hood. Refer to Hood Replacement
  4. Align the hood if necessary. Refer to Hood Adjustment .
