Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the hood.
  2. Remove the push-pin retainers.
  3. Remove the hood close out panel.

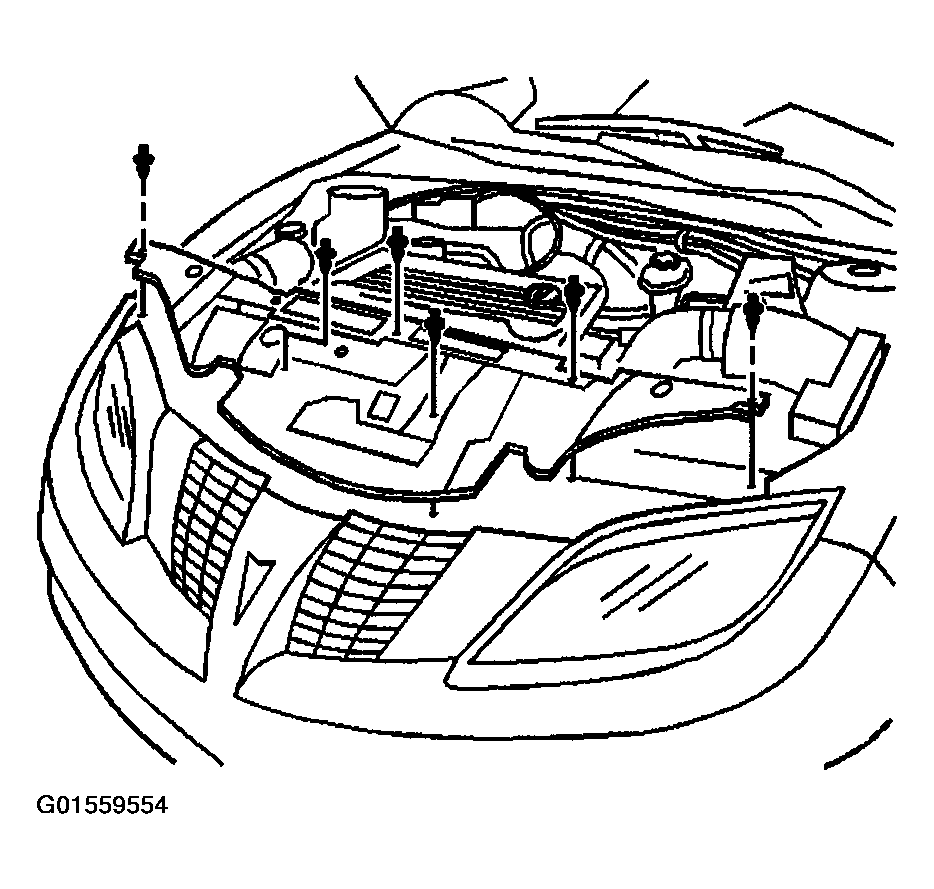

    Fig 1: Removing Hood Close Out Panel & Push-Pin Retainers
    G01559554Courtesy of GENERAL MOTORS CORP.
