Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the hood side bumper (1) from the fender by sliding the bumper rearward.

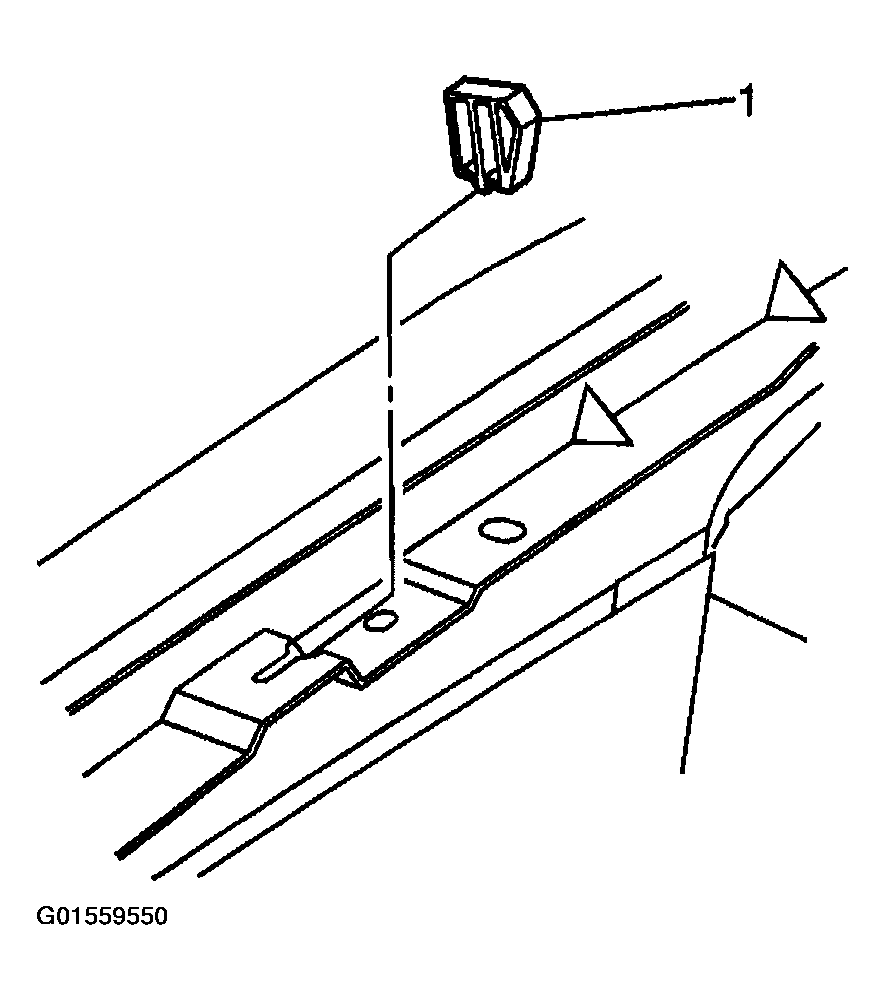

    Fig 1: Removing Hood Side Bumper
    G01559550Courtesy of GENERAL MOTORS CORP.
