Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Remove the screws from the front fender liner at the front bumper fascia.

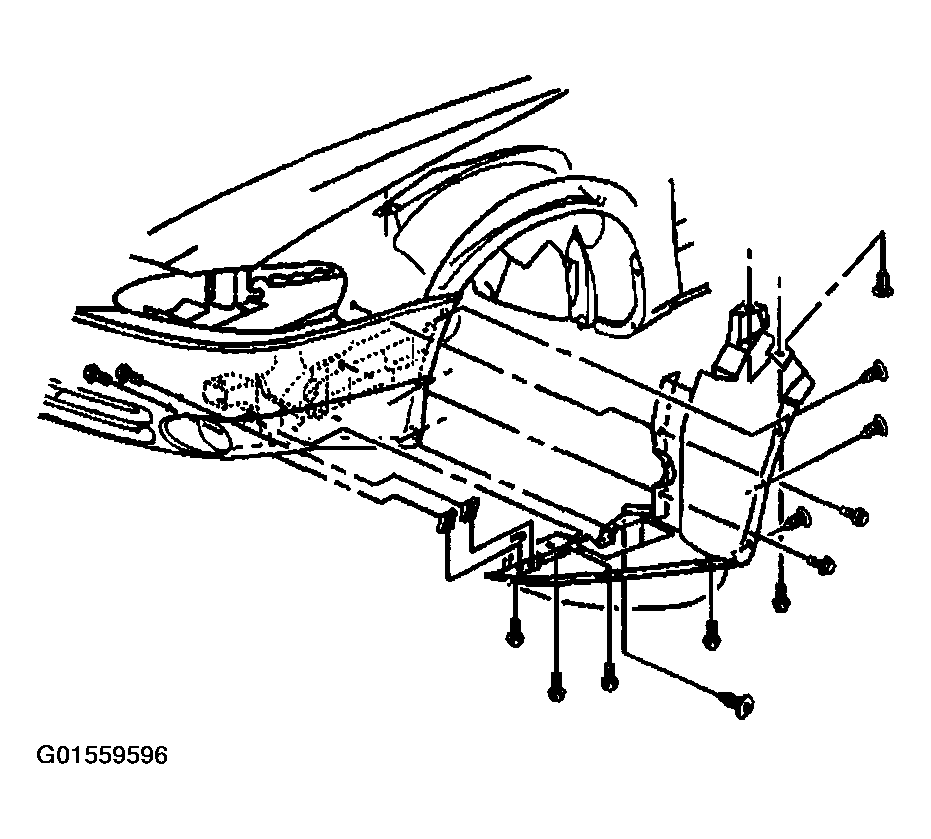

    Fig 1: Removing Front Fender Liner To Front Bumper Screws
    G01559596Courtesy of GENERAL MOTORS CORP.
  4. Remove the push-in retainers from the fender liner.
  5. Remove the screws from the fender liner to the fender.
  6. Remove the front fender liner (3) from the fender.

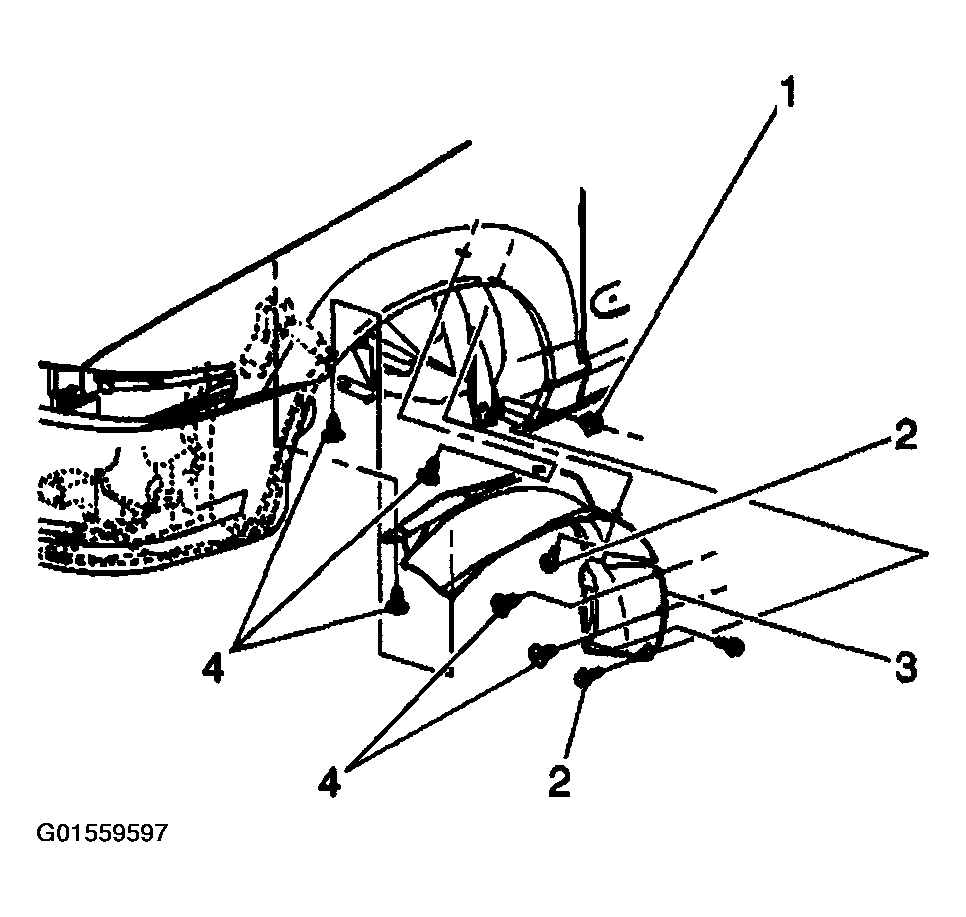

    Fig 2: Removing Front Fender Liner To Fender Screws
    G01559597Courtesy of GENERAL MOTORS CORP.
