Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the fender liner (3) to the front fender.
  2. Install the push-in retainers.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screws from the fender liner to the fender.

    Tighten

    Tighten the screws to 2 N.m (18 lb.in).

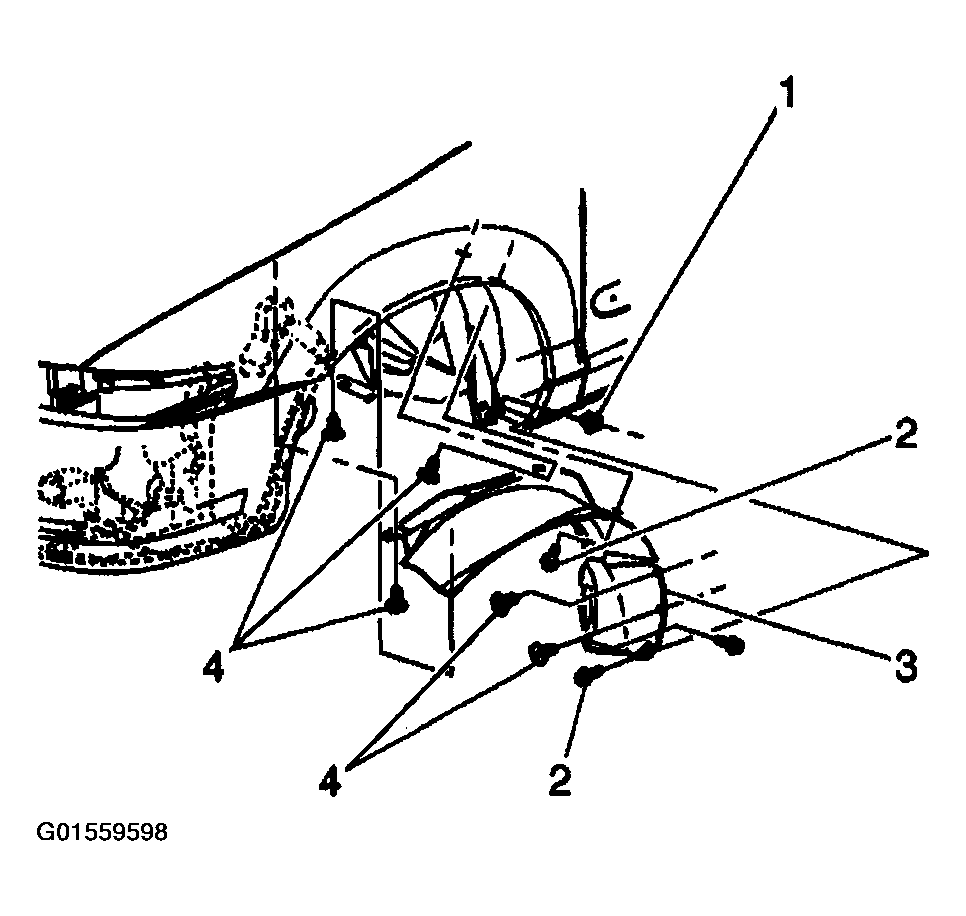

    Fig 1: Installing Front Fender Liner To Fender Screws
    G01559598Courtesy of GENERAL MOTORS CORP.
  4. Install the screws to the front fender liner to the front bumper fascia.

    Tighten

    Tighten the screws to 2 N.m (18 lb.in).

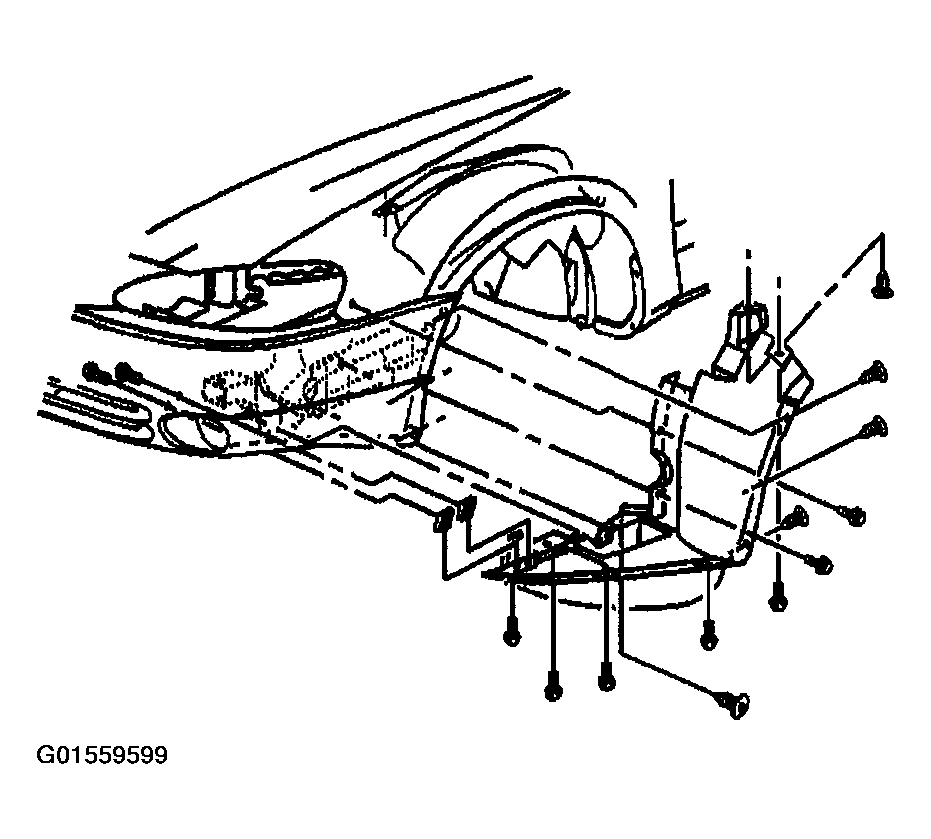

    Fig 2: Installing Front Fender Liner To Front Bumper Screws
    G01559599Courtesy of GENERAL MOTORS CORP.
  5. Install the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  6. Lower the vehicle.
