Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the wiper arm assemblies. Refer to WIPER ARM REPLACEMENT in Wipers/Washer Systems.
  3. Disconnect the washer tubing from the air inlet screen.
  4. Using J 38778  , remove the air inlet grille panel push-in retainers (1) from the panel.

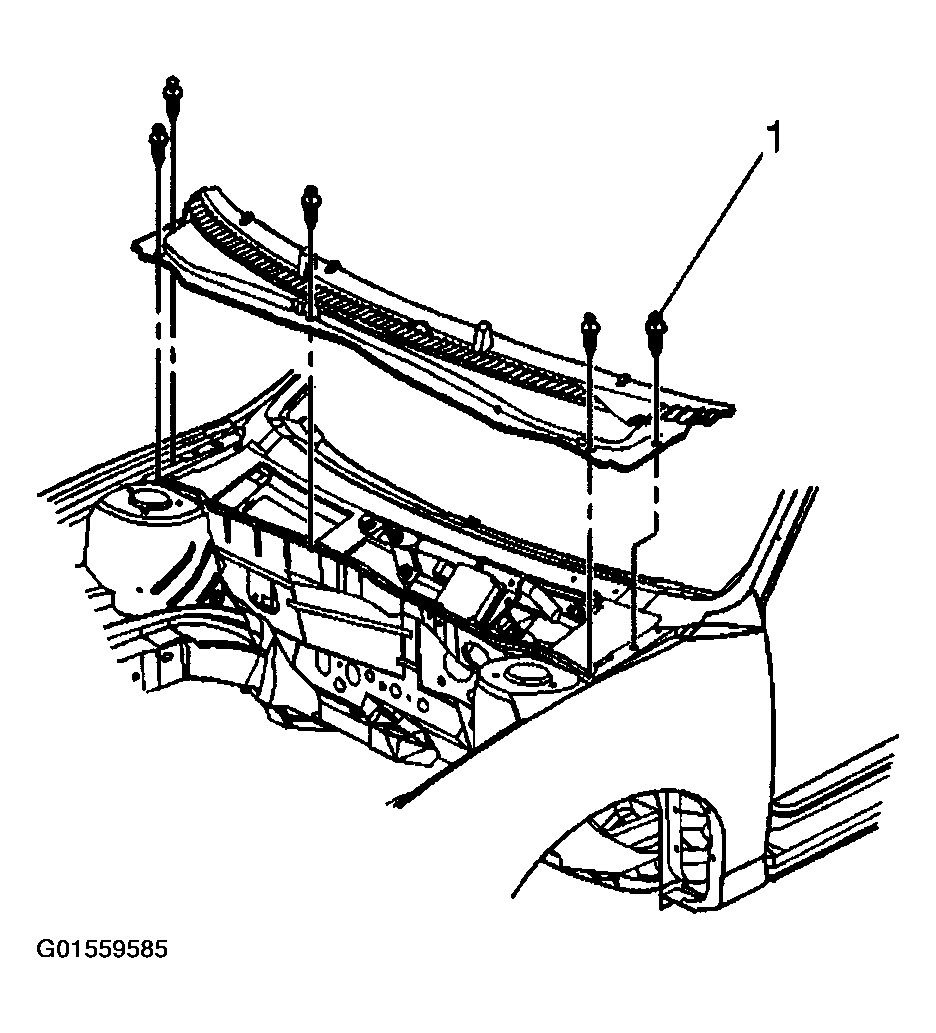

    Fig 1: Removing Air Inlet Grille Panel & Push-Pin Retainers
    G01559585Courtesy of GENERAL MOTORS CORP.
  5. Remove the air inlet grille panel from the vehicle.
