Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the air inlet grille panel to the vehicle.
  2. Install the air inlet grille panel push-in retainers (1) to the panel.

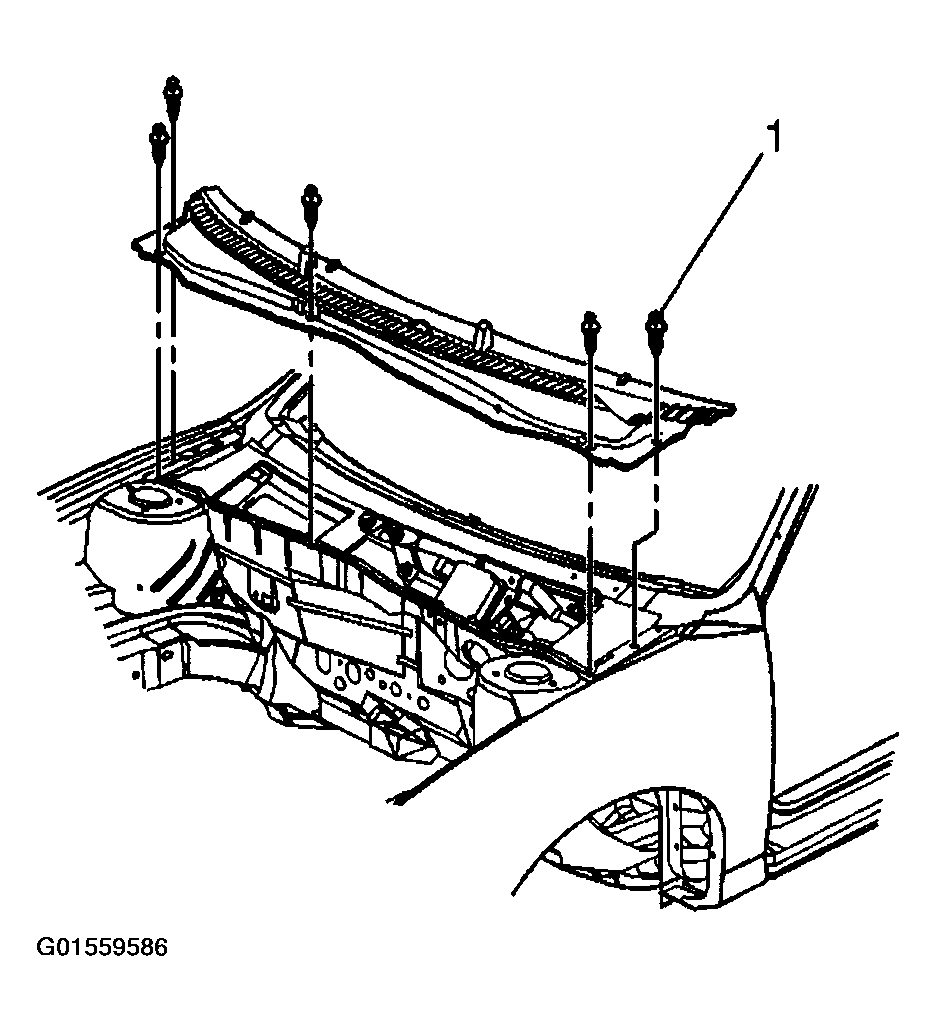

    Fig 1: Installing Air Inlet Grille Panel & Push-Pin Retainers
    G01559586Courtesy of GENERAL MOTORS CORP.
  3. Connect the washer tubing to the air inlet panel.
  4. Install the wiper arms and blade assemblies. Refer to WIPER ARM REPLACEMENT in Wipers/Washer Systems.
  5. Close the hood.
