Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the vehicle speed sensor (VSS) electrical connector.

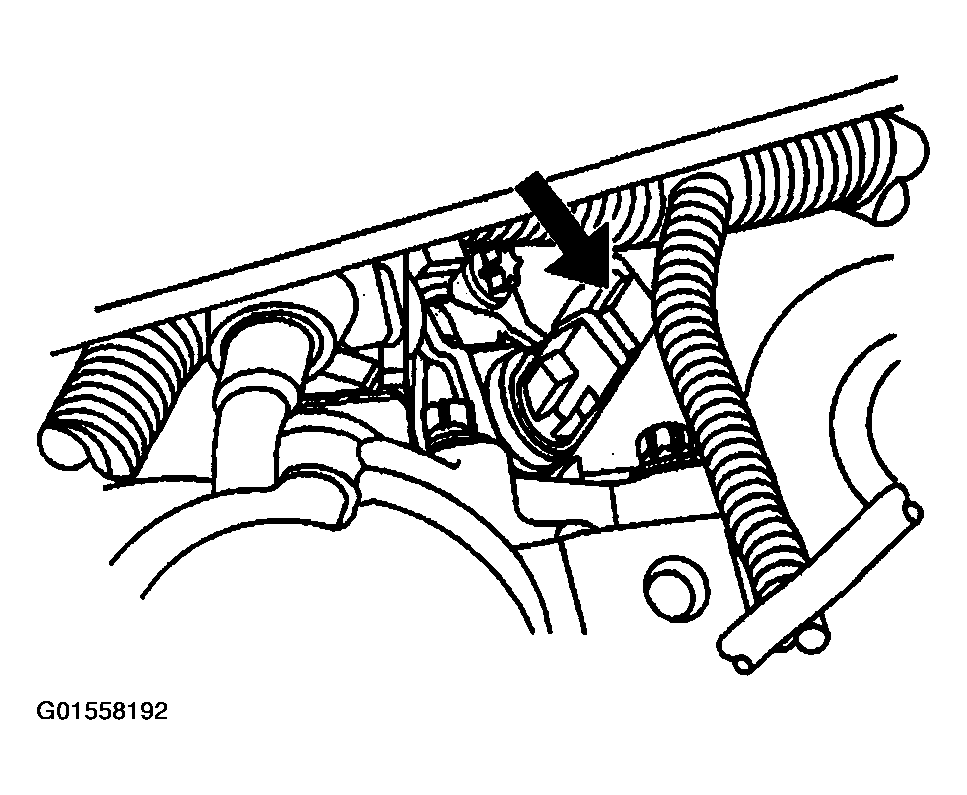

    Fig 1: Locating Vehicle Speed Sensor (VSS)
    G01558192Courtesy of GENERAL MOTORS CORP.
  2. Remove the retainer bolt.
  3. Remove the retainer.
  4. Remove the VSS.
  5. Remove the O-ring.

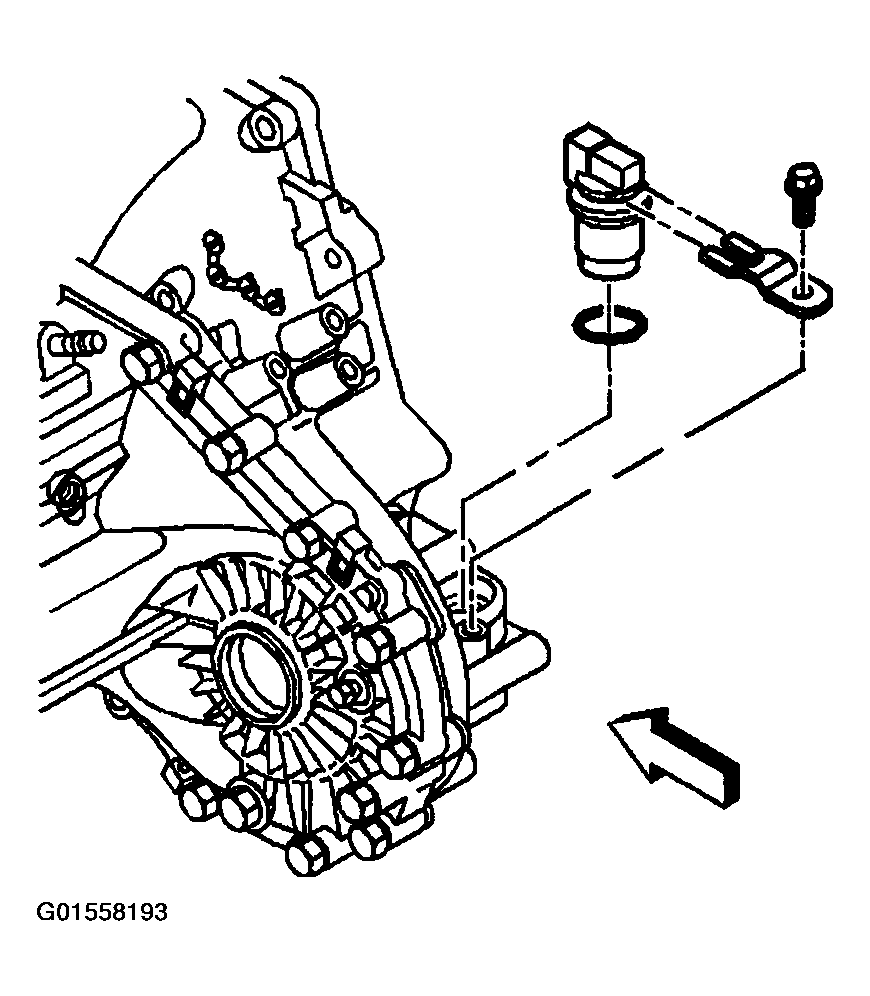

    Fig 2: Removing Vehicle Speed Sensor (VSS)
    G01558193Courtesy of GENERAL MOTORS CORP.
