Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear transaxle.
  2. Start the rear transaxle mount bolts.
  3. Install the transaxle mount through-bolt.

    Tighten

    Tighten the bolt to 75 N.m (55 lb. ft).

  4. Remove the following items from under the transaxle:
    • The wood block
    • The jack stand
  5. Lower the vehicle.
  6. Install the rear bolts.

    Tighten

    Tighten the bolts to 75 N.m (55 lb. ft).

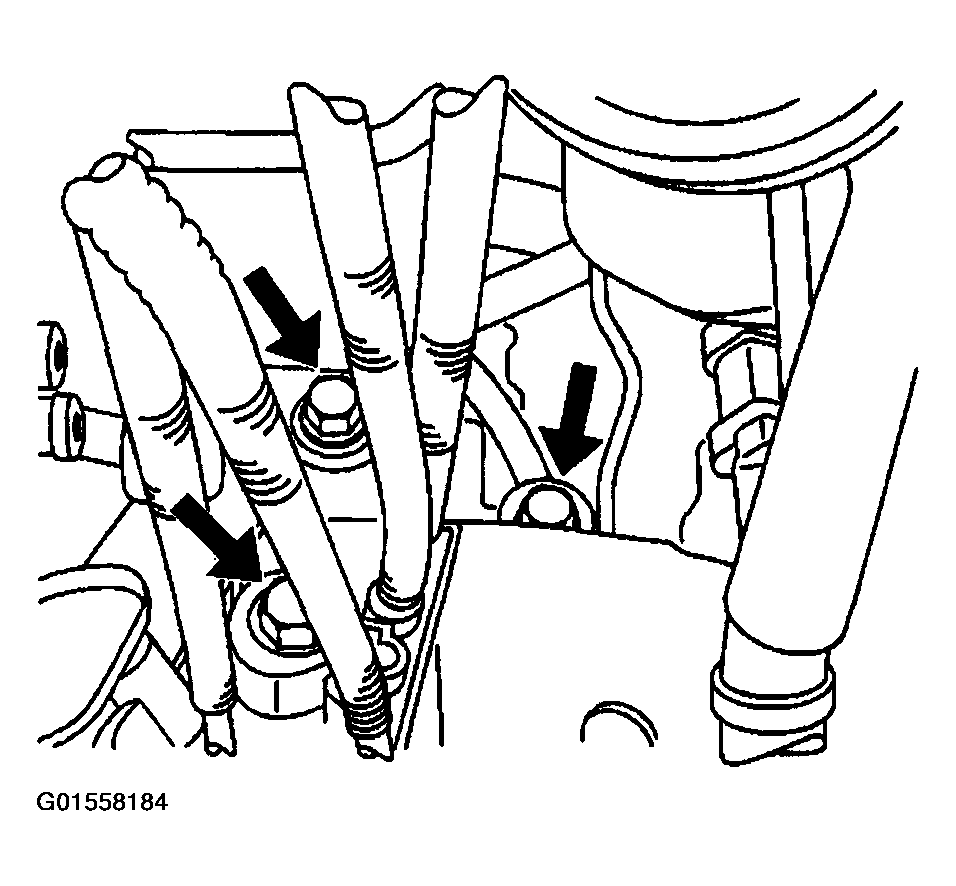

    Fig 1: Locating Transaxle Mount Fastener
    G01558184Courtesy of GENERAL MOTORS CORP.
