Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the shift cables from the shifter assembly. Refer to Shift Control Cable Replacement .
  2. Disconnect the shift interlock cable.

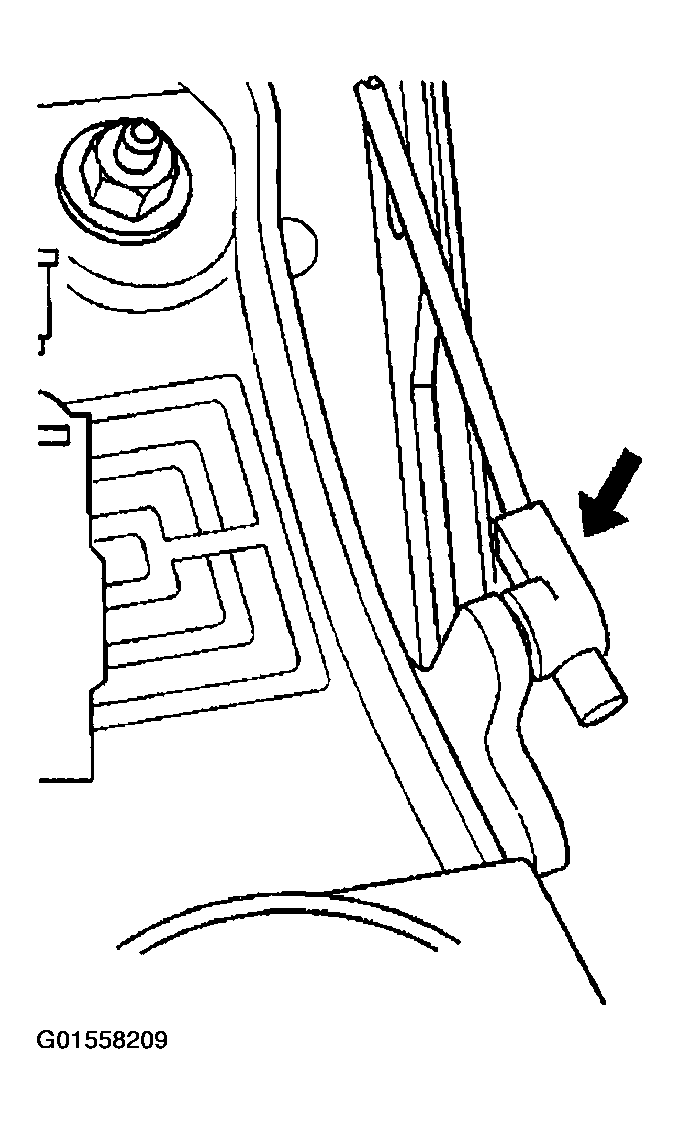

    Fig 1: Disconnecting Shift Interlock Cable
    G01558209Courtesy of GENERAL MOTORS CORP.
  3. Remove the 2 front mounting nuts.

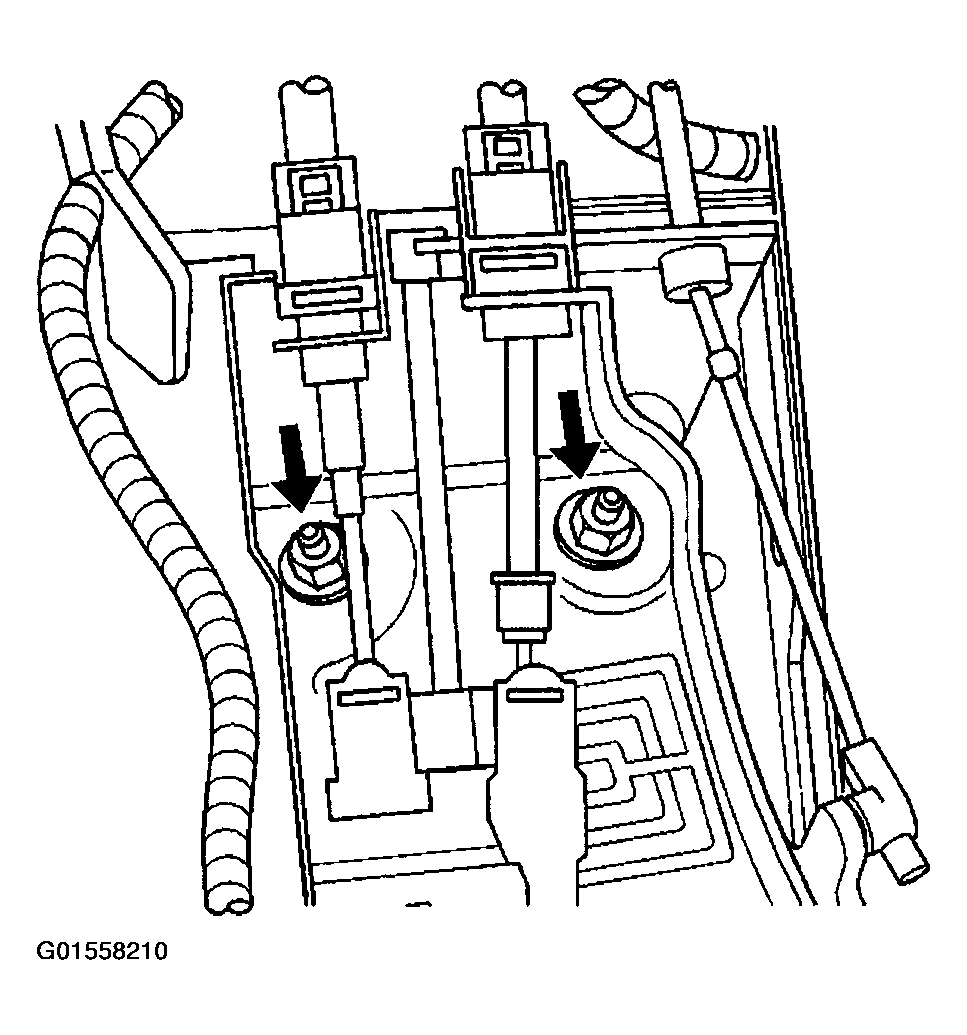

    Fig 2: Locating 2 Front Mounting Nuts
    G01558210Courtesy of GENERAL MOTORS CORP.
  4. Remove the 2 rear mounting bolts and the shifter.

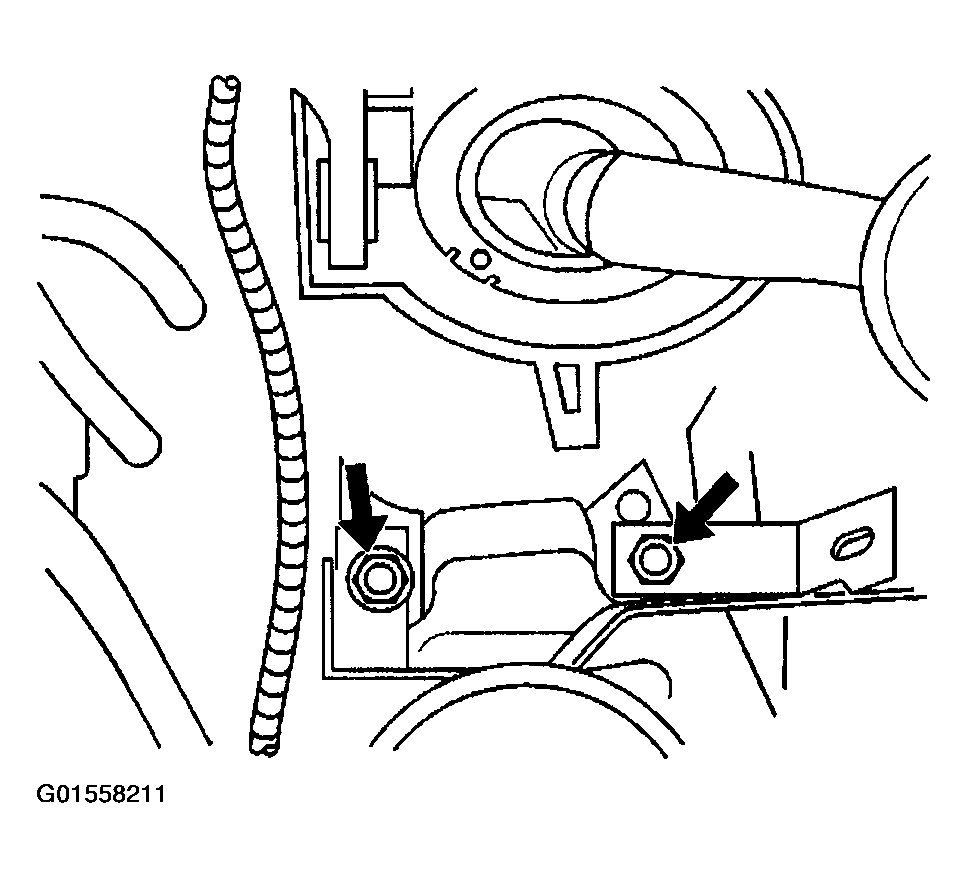

    Fig 3: Locating 2 Rear Mounting Bolts
    G01558211Courtesy of GENERAL MOTORS CORP.
