Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the shifter on the studs and install the front 2 nuts.

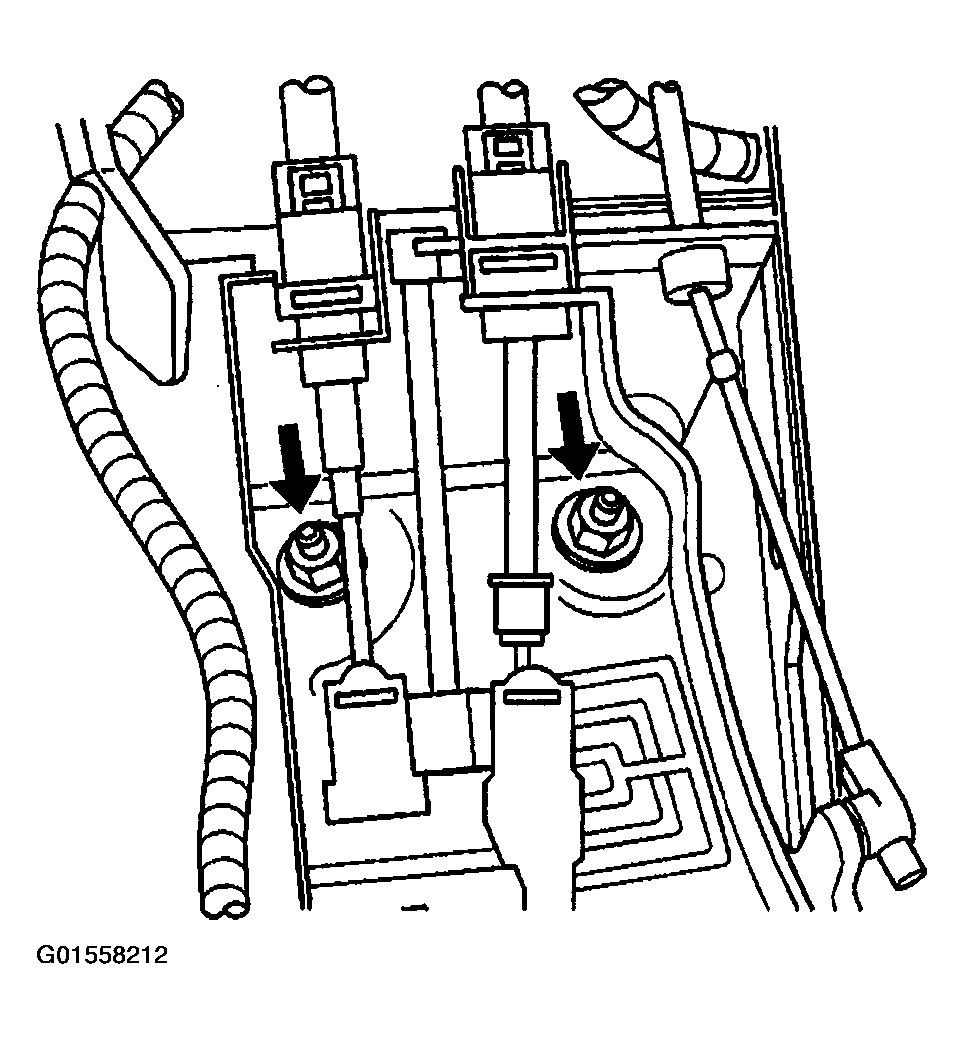

    Fig 1: Installing Front 2 Nuts
    G01558212Courtesy of GENERAL MOTORS CORP.
  2. Install the 2 rear bolts.

    Tighten

    Tighten the nuts and bolts to 25 N.m (18 lb. ft).

  3. Install the shift cables. Refer to Shift Control Cable Replacement .
  4. Install the console.
