Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the console.
  3. Lift up on the cable retainers.
  4. Disconnect the cable ends from the shifter.

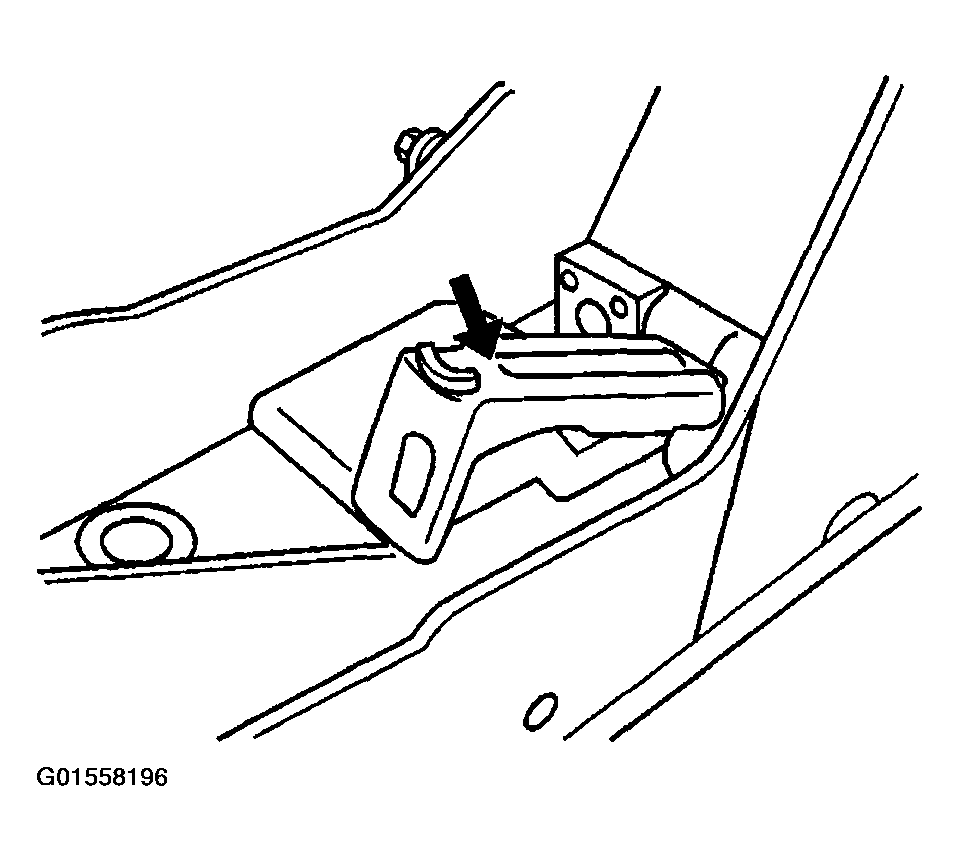

    Fig 1: Disconnecting Cable Ends From Shifter
    G01558196Courtesy of GENERAL MOTORS CORP.
  5. Depress the locking tabs and remove the forward cable from the anchor.
  6. Remove the Air Inlet Duct.

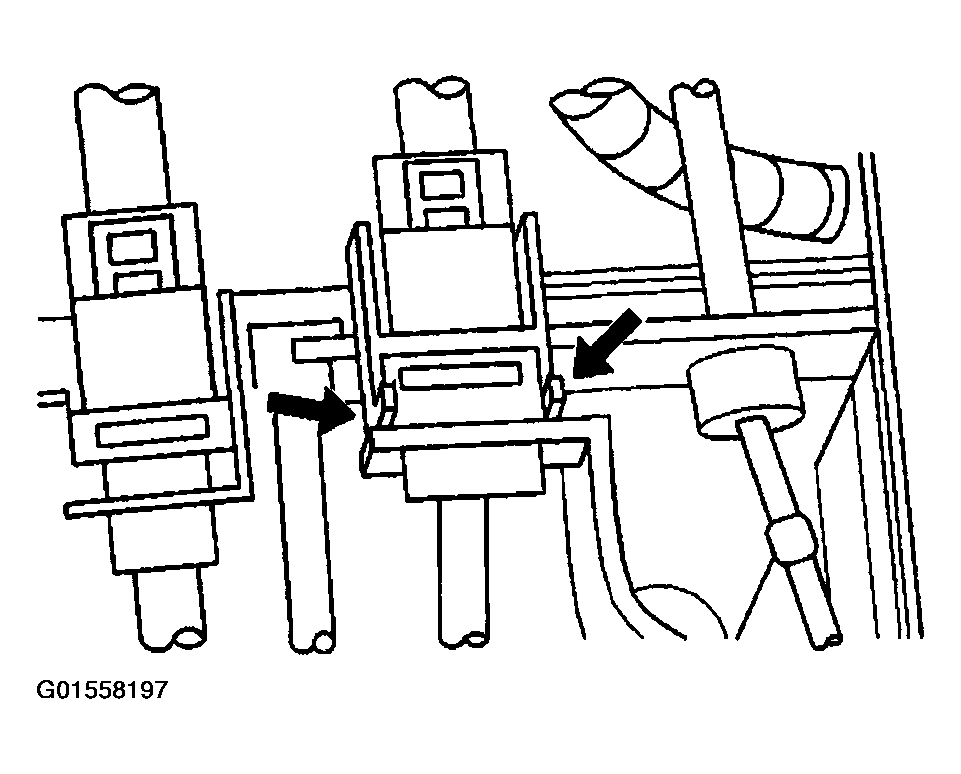

    Fig 2: Depressing Locking Tabs
    G01558197Courtesy of GENERAL MOTORS CORP.
  7. On the transmission end, disconnect the cable from the shift actuator.

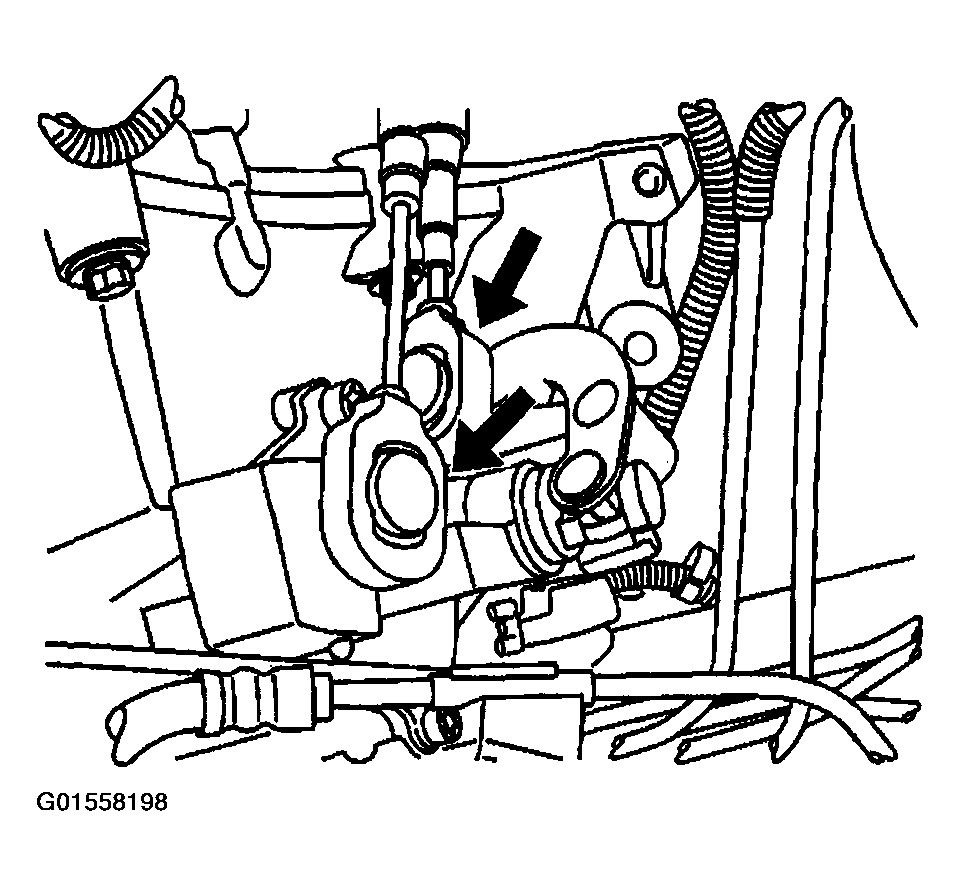

    Fig 3: Disconnecting Cable From Shift Actuator
    G01558198Courtesy of GENERAL MOTORS CORP.
  8. Remove both cables from the underhood cable bracket.
  9. Position aside the passenger front carpet.

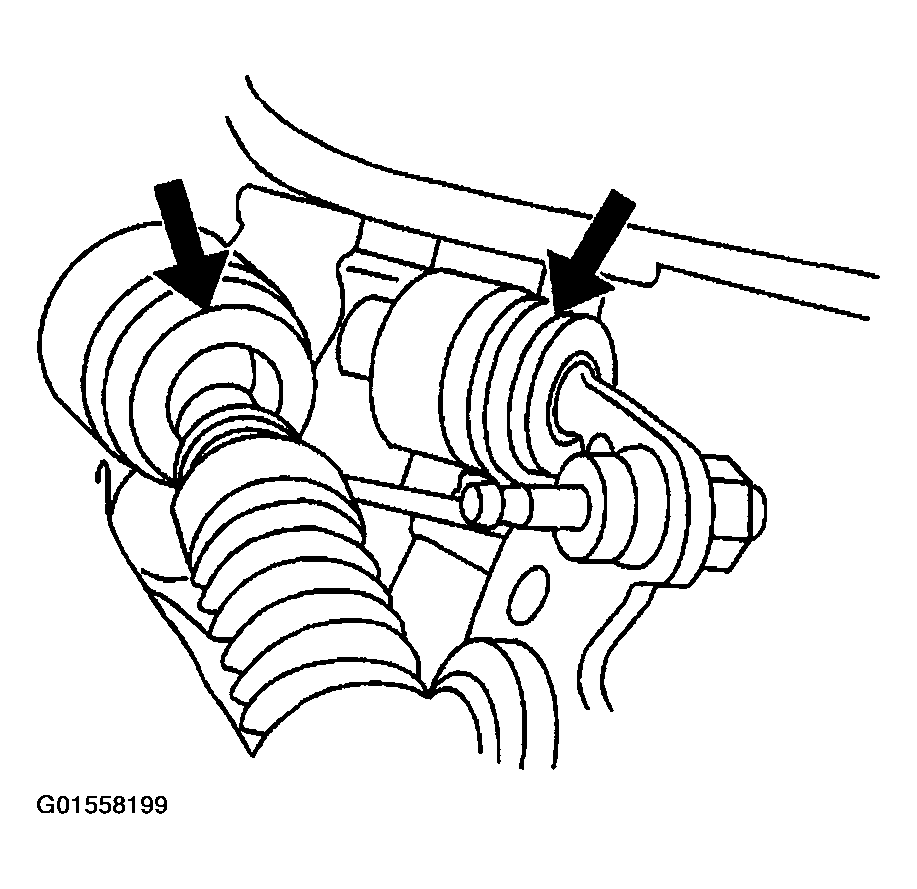

    Fig 4: Removing Cables From Underhood Cable Bracket
    G01558199Courtesy of GENERAL MOTORS CORP.
  10. Remove the right rear floor duct elbow.

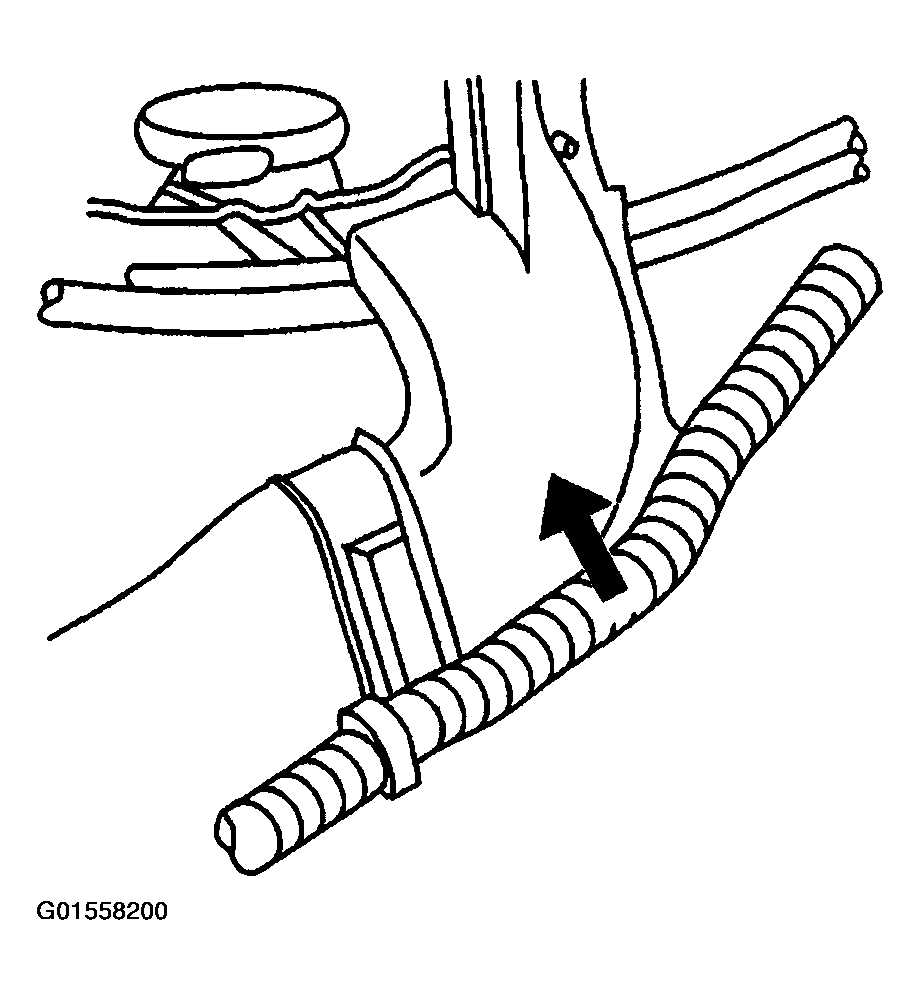

    Fig 5: Removing Right Rear Floor Duct Elbow
    G01558200Courtesy of GENERAL MOTORS CORP.
  11. Separate the grommet from the floor plan.
  12. Pull the cables through the passenger floor opening.

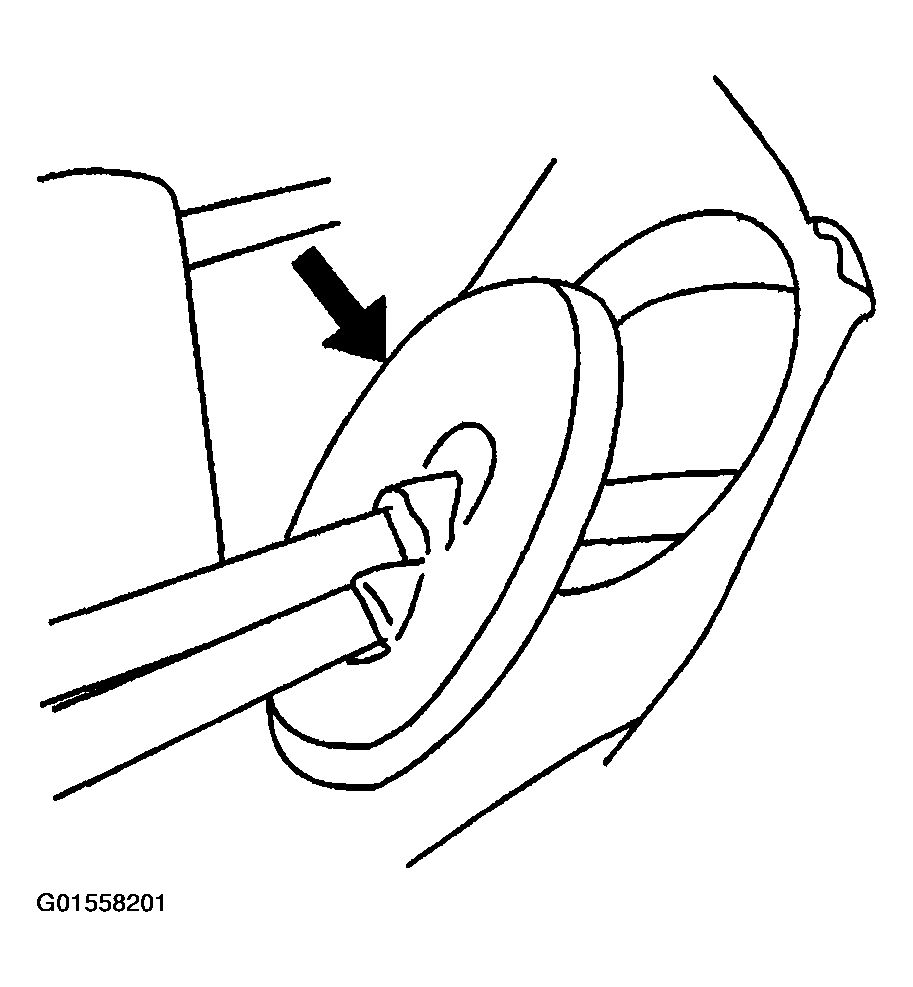

    Fig 6: Separating Grommet From Floor Plan
    G01558201Courtesy of GENERAL MOTORS CORP.
