Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Feed the cable assembly through the passenger floor pan opening.
    Fig 1: Feeding Cable Assembly Through Passenger Floor Pan Opening
    G01558202Courtesy of GENERAL MOTORS CORP.

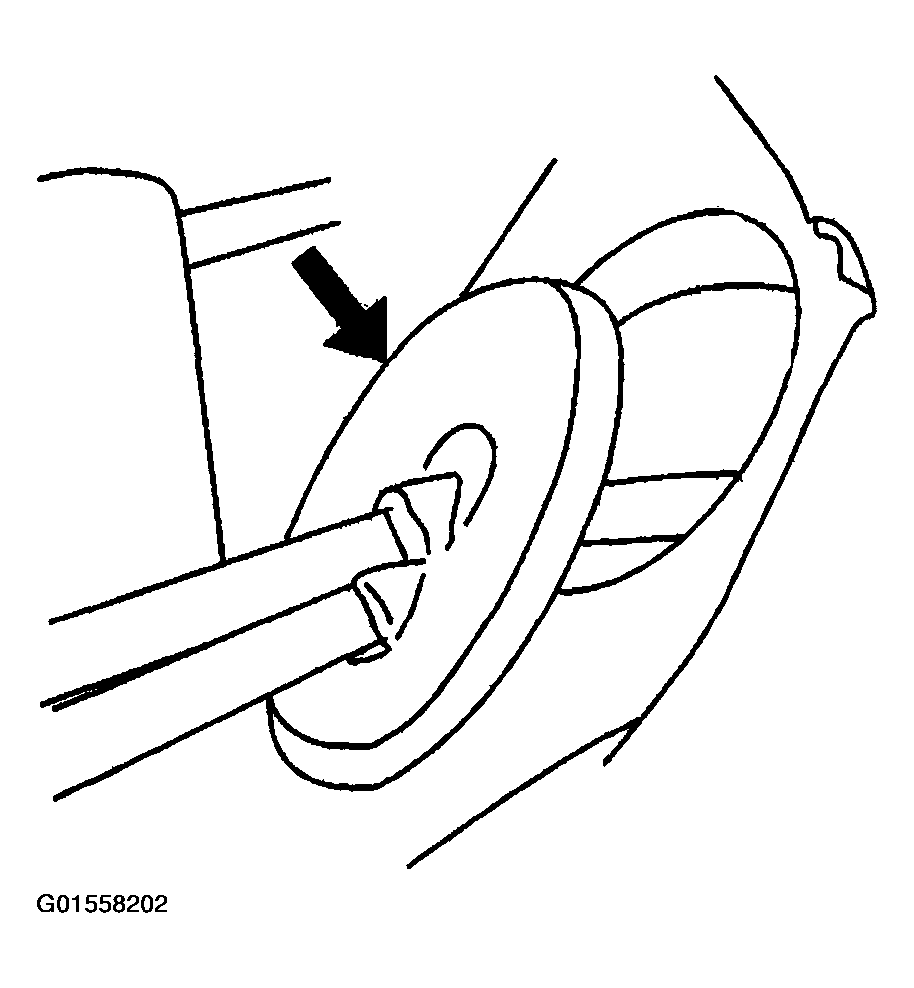

  2. Install the grommet flush with the floor opening.
    Fig 2: Installing Grommet Flush With Floor Opening
    G01558203Courtesy of GENERAL MOTORS CORP.

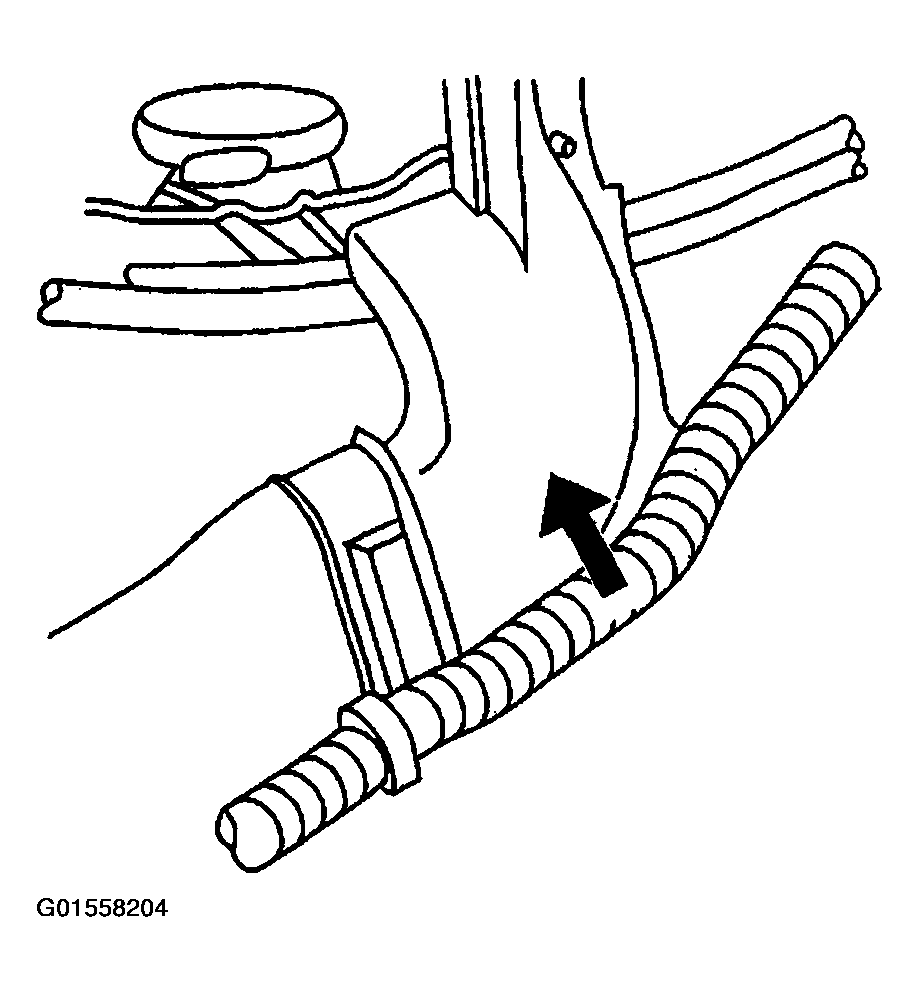

  3. Install the right rear floor right side elbow duct.

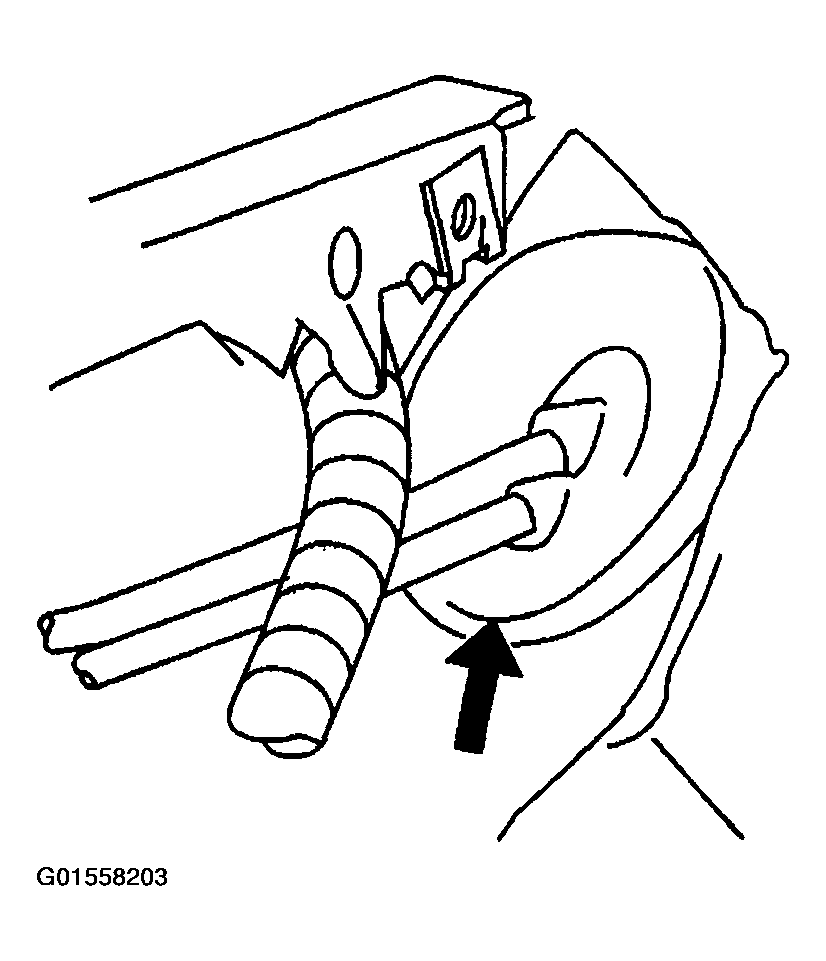

    Fig 3: Installing Right Rear Floor Right Side Elbow Duct
    G01558204Courtesy of GENERAL MOTORS CORP.
  4. Position and install the passenger side carpet.
  5. Install the cables into the underhood bracket.

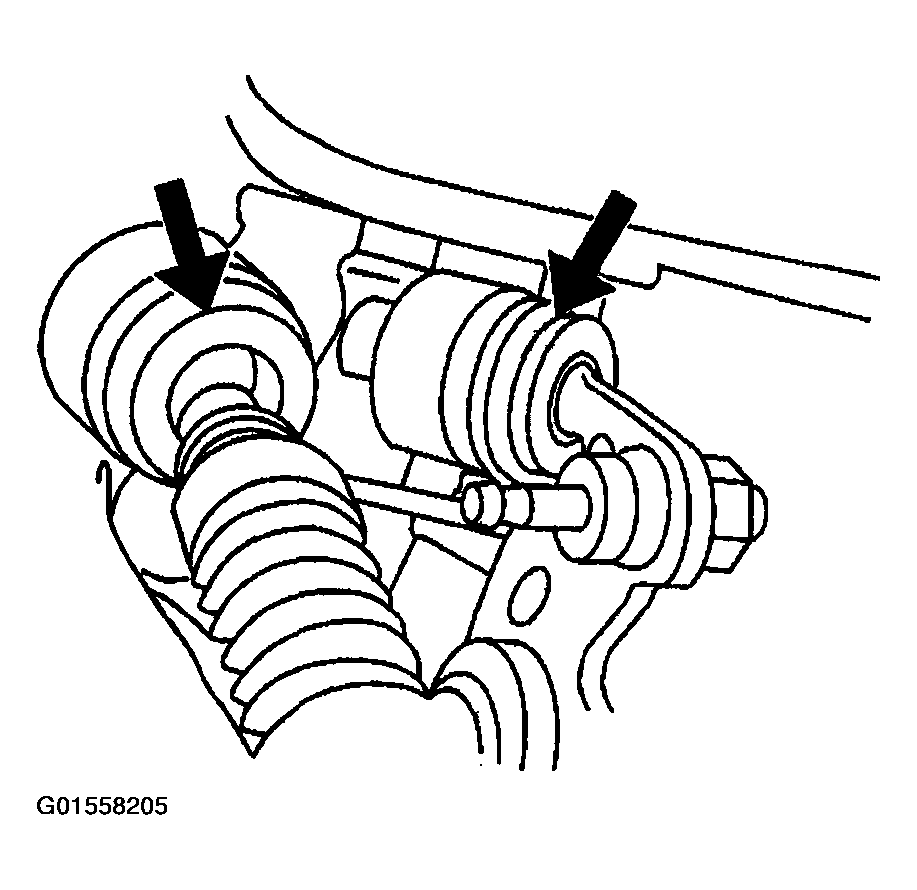

    Fig 4: Installing Cables Into Underhood Bracket
    G01558205Courtesy of GENERAL MOTORS CORP.
  6. Connect the shift cable to the shift actuator.
  7. Connect the cables to the shifter.

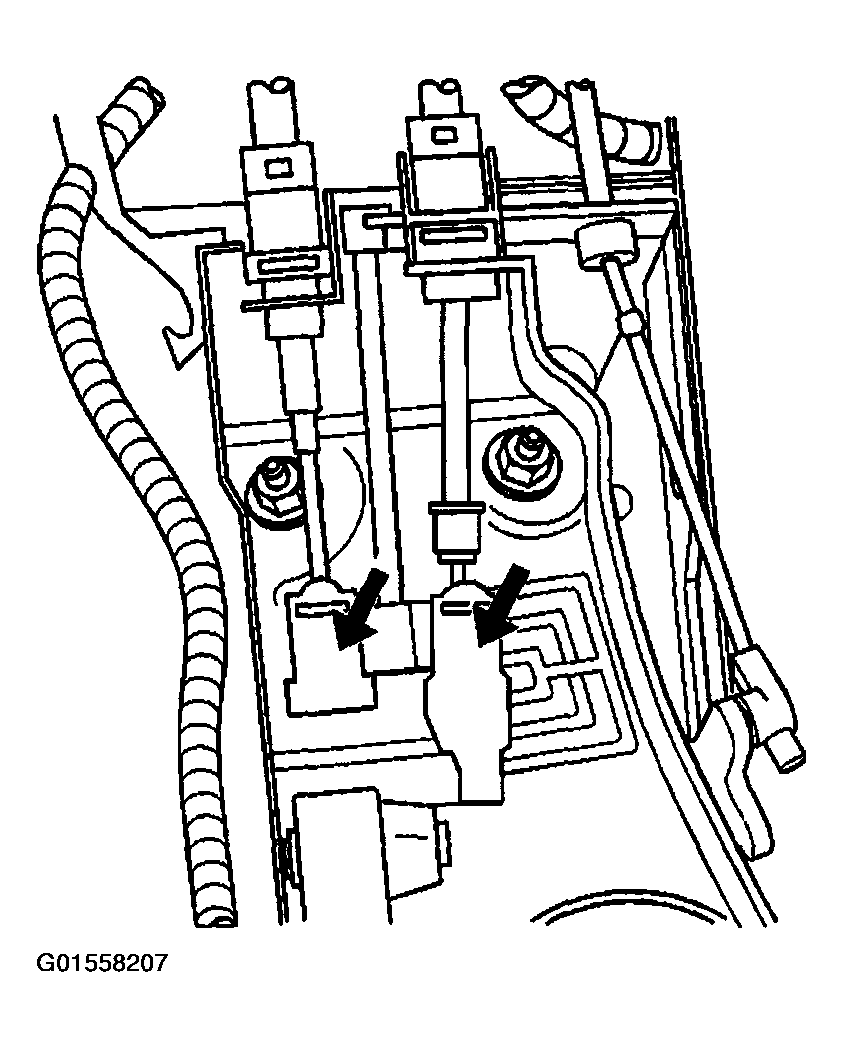

    Fig 5: Connecting Cables To Shifter
    G01558207Courtesy of GENERAL MOTORS CORP.
  8. Press down on the locking tabs.

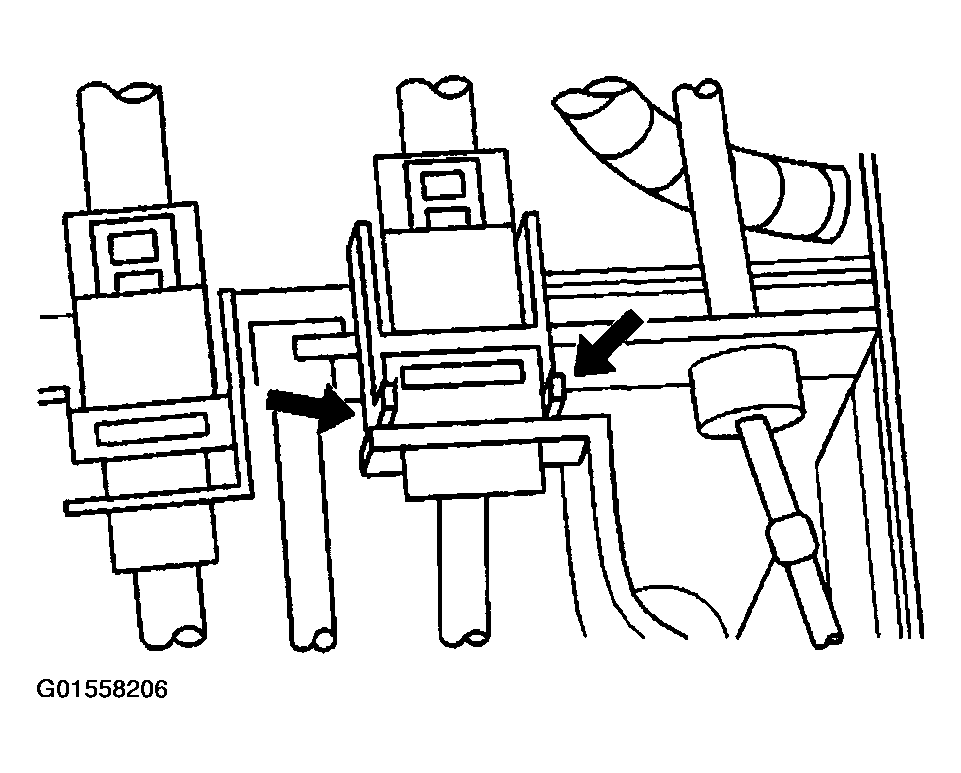

    Fig 6: Pressing Down On Locking Tabs
    G01558206Courtesy of GENERAL MOTORS CORP.
  9. Install the console.
  10. Install the Air Cleaner Inlet Duct.
  11. Connect the battery.
