Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When removing or installing the backup lamp switch, do not use an open end wrench. Use only a socket in order to avoid damage to the switch assembly.

Disconnect the backup lamp connector.

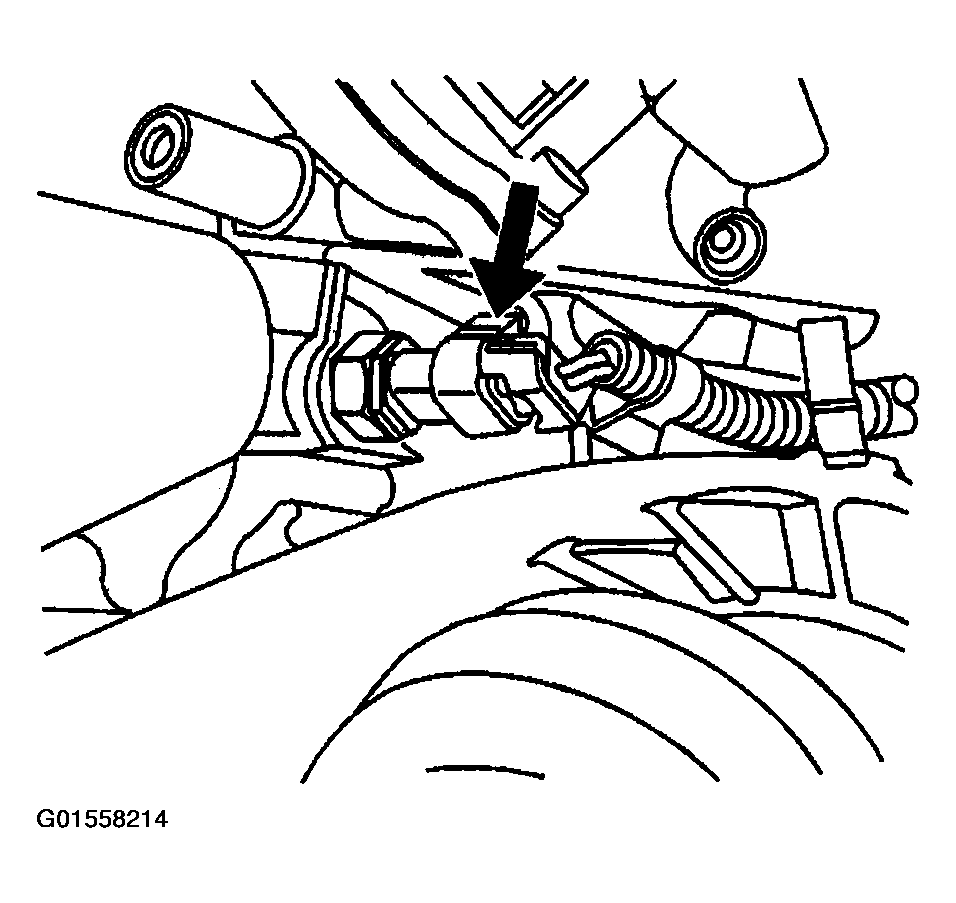

Fig 1: Disconnecting Backup Lamp Connector
Courtesy of GENERAL MOTORS CORP.
Remove the backup light switch assembly.

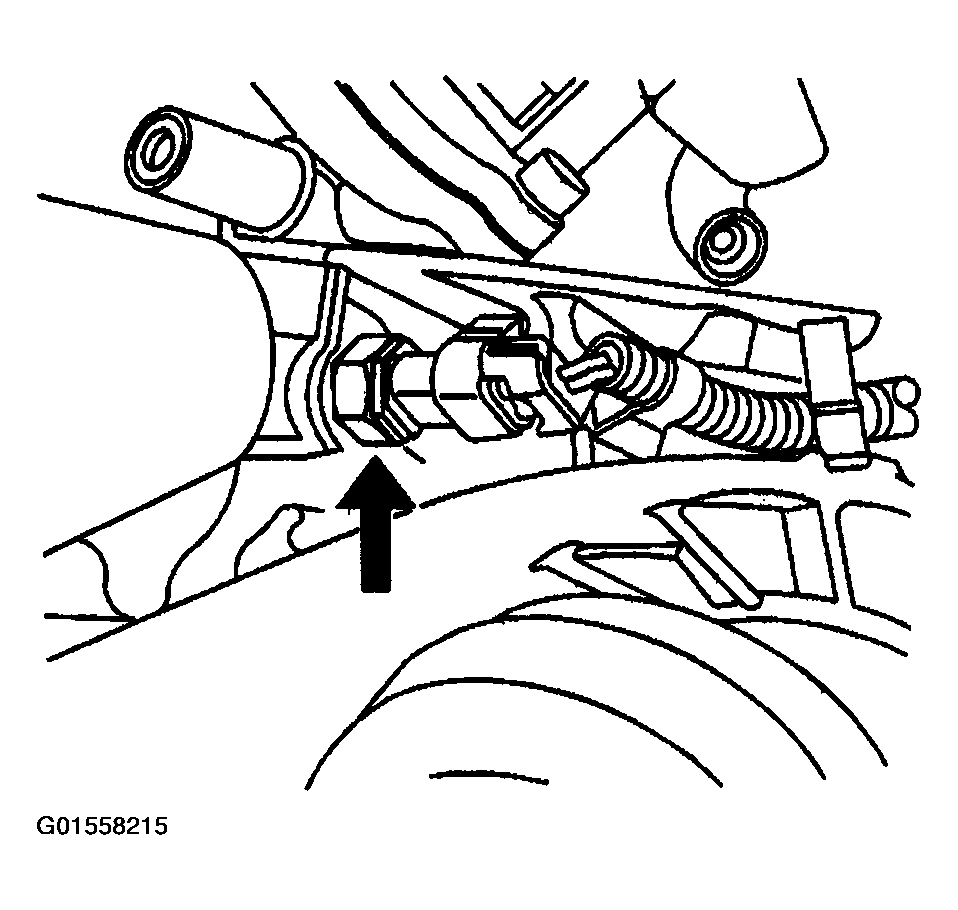

Fig 2: Removing Backup Light Switch Assembly
Courtesy of GENERAL MOTORS CORP.
