Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the J 44385  and the J 7079-2  in order to install a new seal. Ensure that the seal is seated flush to the outer bore area.

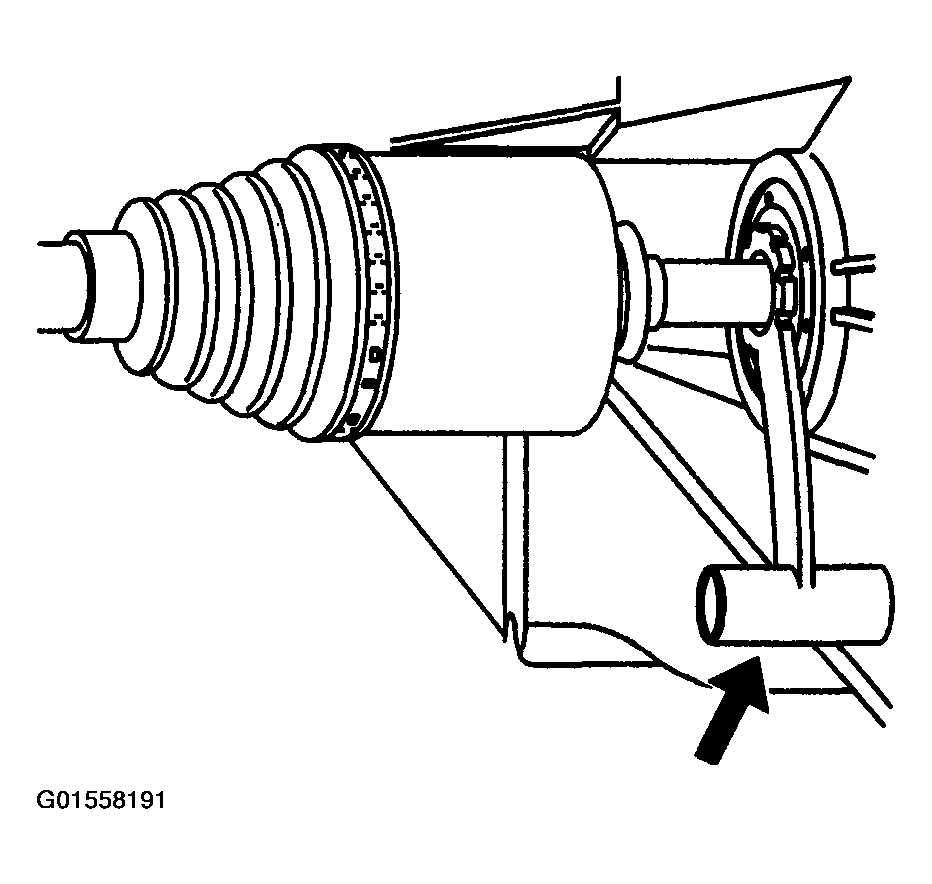

    Fig 1: Installing Axle Shaft
    G01558191Courtesy of GENERAL MOTORS CORP.
  2. Lubricate the seal with Dexron®-II transmission fluid.
  3. Install the wheel driveshaft. Refer to AXLE SHAFT .
  4. Install the front tire and wheel assemblies.
  5. Lower the vehicle.
